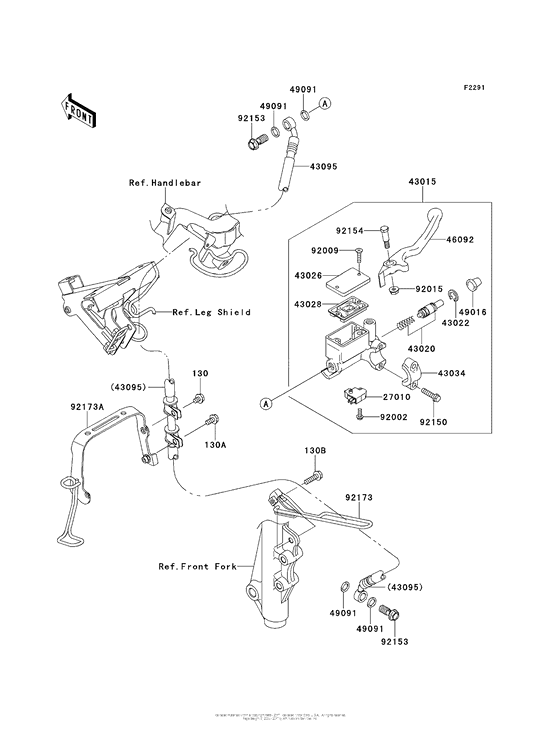

Front Master Cylinder Diagram Kawasaki AN112 Edge VR
- Year
- 2012
- Model code
- AN112SCF
- Sales region
- USA
- Engine Capacity
- 112
- Model
- Edge VR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BB0608 BOLT-FLANGED,6X8 |
130BB0608 |
from US $1.11 |
||
|
130A
|
130A
130BB0612 BOLT-FLANGED,6X12 |
130BB0612 |
from US $1.43 |
||
|
130B
|
130B
130BB0622 BOLT,6X22 |
130BB0622 |
from US $2.53 |
||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-0565 CYLINDER-ASSY-MASTER |
43015-0565 |
from US $83.98 |
||
|
43020
|
43020
43020-1098 PISTON-COMP-BRAKE |
43020-1098 |
from US $34.41 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1074 CAP-BRAKE |
43026-1074 |
from US $17.42 |
||
|
43028
|
43028
43028-1061 DIAPHRAGM |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1110 HOLDER-BRAKE |
43034-1110 |
from US $14.10 |
||
|
43095
|
43095
43095-0643 HOSE-BRAKE,FR |
43095-0643 |
from US $36.01 |
||
|
46092
|
46092
46092-0553 LEVER-GRIP,FR BRAKE |
46092-0553 |
from US $20.12 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.61 |
||
|
49091
|
49091
49091-0001 WASHER-SEAL,10.1X14.5 |
49091-0001 |
US $2.81 |
||
|
92002
|
92002
92002-1323 Bolt |
92002-1323 |
from US $2.53 |
||
|
92009
|
92009
92009-1458 SCREW,4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MM |
92015-1528 |
from US $3.17 |
||
|
92150
|
92150
92002-1894 Bolt |
92002-1894 |
from US $3.17 |
||
|
92153
|
92153
92153-0029 BOLT,OIL,L=23 |
92153-0029 |
US $2.14 |
||
|
92154
|
92154
92154-0882 BOLT,FR BRAKE LEVER |
92154-0882 |
from US $7.78 |
||
|
92173
|
92173
92173-0760 CLAMP |
92173-0760 |
from US $2.65 |
||
|
92173A
|
92173A
92173-0761 CLAMP |
92173-0761 |
from US $11.98 |
