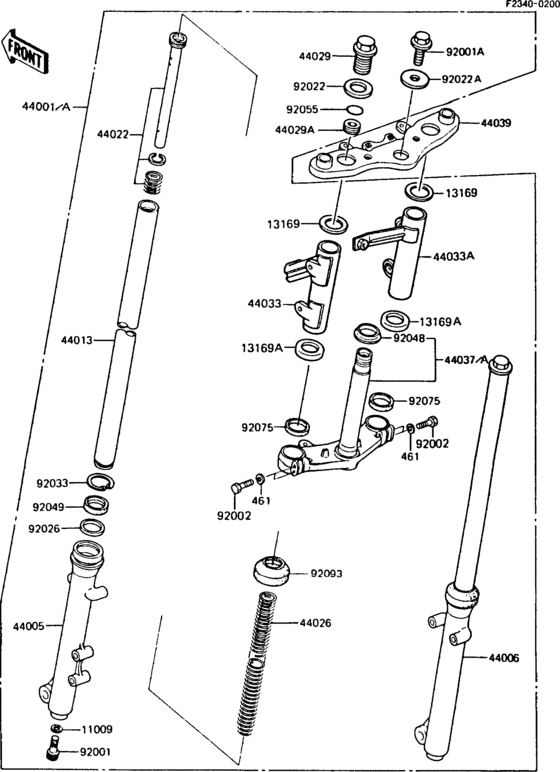

Front fork Diagram Kawasaki AR125
- Year
- 1989
- Model code
- AR125-A7
- Sales region
- Norway
- Engine Capacity
- 125
- Frame
- AR125A 016001 - 017000
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
461
|
461
461DA0800 WASHER-SPRING,8MM |
461DA0800 |
from US $0.48 |
||
|
11009
|
11009
44045051 GASKET,FORK CYL BOLT |
44045051 |
from US $4.59 |
||
|
13169
|
13169
13169-1557 Plate,fork cover |
13169-1557 |
US $9.66 |
||
|
13169A
|
13169A
13169-1626 Plate,fork cover,lwr |
13169-1626 |
US $10.14 |
||
|
44001
|
44001
44001-1627 Fork-front |
44001-1627 |
US $1,684.32 |
||
|
44001A
|
44001A
44001-1630
Fork-front
|
44001-1630 |
— | ||
|
44005
|
44005
44005-1121 Pipe-left fork outer |
44005-1121 |
US $194.57 |
||
|
44006
|
44006
44006-1121 Pipe-right fork outer |
44006-1121 |
US $194.57 |
||
|
44013
|
44013
44013-1100 Pipe-fork inner |
44013-1100 |
US $214.90 |
||
|
44022
|
44022
44022-1086 Cylinder-fork |
44022-1086 |
US $69.56 |
||
|
44026
|
44026
44026-1164 Spring-front fork |
44026-1164 |
US $41.14 |
||
|
44029
|
44029
44029-1017 BOLT,FORK TOP |
44029-1017 |
from US $13.97 |
||
|
44029A
|
44029A
44029-1018 BOLT,FORK INNER,TOP |
44029-1018 |
from US $10.80 |
||
|
44033
|
44033
44033-1172 Cover-fork,lh |
44033-1172 |
US $138.83 |
||
|
44033A
|
44033A
44033-1173 Cover-fork,rh |
44033-1173 |
US $138.83 |
||
|
44037
|
44037
44037-1104
Holder-fork under
|
44037-1104 |
— | ||
|
44037A
|
44037A
44037-1104
Holder-fork under
|
44037-1104 |
— | ||
|
44039
|
44039
44039-1137 Holder-fork upper |
44039-1137 |
US $138.83 |
||
|
92001
|
92001
44041078 BOLT,FORK CYLINDER |
44041078 |
from US $7.13 |
||
|
92001A
|
92001A
92001-1318 BOLT,STEERING STEM |
92001-1318 |
from US $16 |
||
|
92002
|
92002
92002-1812 Bolt |
92002-1812 |
from US $5.35 |
||
|
92022
|
92022
92022-1409 Washer |
92022-1409 |
US $7.76 |
||
|
92022A
|
92022A
92022-1410 Washer |
92022-1410 |
US $7.76 |
||
|
92026
|
92026
92026-1121 Spacer,fork outer tub |
92026-1121 |
US $7.76 |
||
|
92033
|
92033
92033-1028 CIRCLIP,FORK OUTER |
92033-1028 |
from US $2.85 |
||
|
92048
|
92048
92047-013 RACE, STRG STEM BRG |
92047-013 |
from US $10.61 |
||
| replacement | |||||
|
92048
|
92048
92048-0034 Race,steering Stem Be |
92048-0034 |
US $12.63 |
||
|
92049
|
92049
92049-1069 OIL SEAL |
92049-1069 |
from US $12.51 |
||
|
92055
|
92055
670B2022 O RING,22MM |
670B2022 |
from US $2.85 |
||
|
92075
|
92075
92075-1250 Damper,30.8x40x5.5 |
92075-1250 |
US $3.11 |
||
|
92093
|
92093
92093-1054 DUST SHIELD |
92093-1054 |
from US $11.09 |
||
