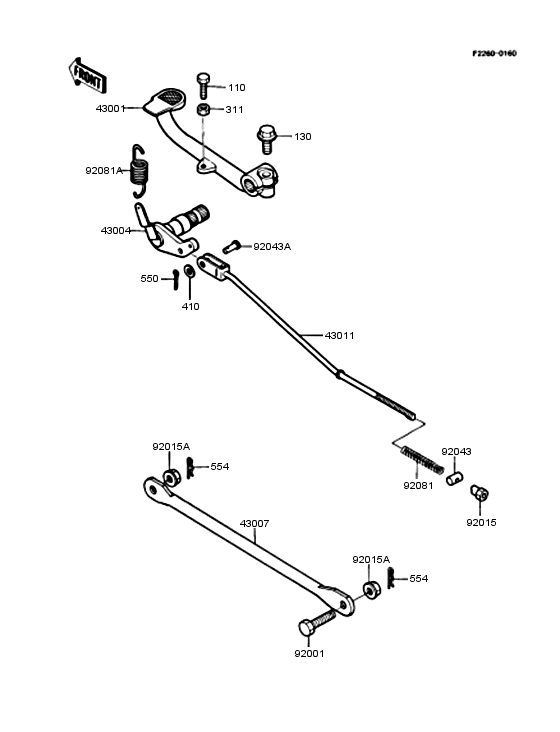

Brake pedal Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110C0625
Bolt,6x25
ボルト，6X25 |
110C0625 |
— | ||
| replacement | |||||
|
110
|
110
112AB0625 BOLT-UPSET,6X25ボルト，6X25 |
112AB0625 |
US $1.09 |
||
|
130
|
130
130J0825
BOLT-FLANGED,8X25,BLA
ボルト(ツバツキ)，8X25 |
130J0825 |
— | ||
| replacements | |||||
|
130
|
130
130BB0825 BOLT-FLANGED,8X25,BLAボルト(ツバツキ)，8X25 |
130BB0825 |
from US $1.27 |
||
|
130
|
130
130CB0825 BOLT-FLANGEDボルト(ツバツキ)，8X25 |
130CB0825 |
from US $1.96 |
||
|
311
|
311
311C0600
NUT-HEX,6MM
ロツカク ナツト，6MM |
311C0600 |
— | ||
| replacement | |||||
|
311
|
311
311AB0600 NUT-HEX,6MMロツカク ナツト，6MM |
311AB0600 |
from US $0.75 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
ヒラザガネ(コガタマル)，6MM |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLヒラザガネ(コガタマル)，6MM |
410AA0600 |
from US $0.79 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
ワリ ピン，2.0X15 |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15ワリ ピン，2.0X15 |
550AA2015 |
from US $0.63 |
||
|
554
|
554
554A0800 PIN-SNAPスナツプ ピン，8MM |
554A0800 |
from US $2.09 |
||
| replacement | |||||
|
554
|
554
554DA0800 PIN-SNAPスナツプ ピン，8MM |
554DA0800 |
from US $0.63 |
||
|
43001
|
43001
43001-1108 Lever-brake,pedalレバ-(ブレ-キ)，ペダル |
43001-1108 |
US $90.06 |
||
|
43004
|
43004
43004-1047 Shaft-brakeシヤフト(ブレ-キ) |
43004-1047 |
US $46.23 |
||
|
43007
|
43007
43007-1119 Rod-torqueロツド(トルク) |
43007-1119 |
US $47.27 |
||
|
43011
|
43011
43011-1052 Rod-brake,l=372ロツド(ブレ-キ)，L=372 |
43011-1052 |
US $20.28 |
||
|
92001
|
92001
92003-096 BOLT,10X29ボルト，10X29 |
92003-096 |
from US $7.76 |
||
| replacement | |||||
|
92001
|
92001
92151-1876 BOLT,10X29ボルト，10X29 |
92151-1876 |
from US $7.13 |
||
|
92015
|
92015
92015-042 NUT-BRAKE ROD ADJUSTナツト，ブレ-キ ロツド |
92015-042 |
from US $3.48 |
||
|
92015A
|
92015A
92015-1428 NUT,FLANGED,10MMナツト，フランジ，10MM; オプシヨン |
92015-1428 |
from US $3.01 |
||
|
92043
|
92043
92043-039
PIN,BRAKE ROD
ピン |
92043-039 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-0147 PIN,BRAKE RODピン |
92043-0147 |
from US $3.17 |
||
|
92043A
|
92043A
92043-064
PIN-BRAKE ROD FITTING
ピン，6X17; オプシヨン |
92043-064 |
— | ||
| replacement | |||||
|
92043A
|
92043A
92043-125 PINピン，6X17; オプシヨン |
92043-125 |
from US $3.96 |
||
|
92081
|
92081
43012001 SPRING,BRAKE RODスプリング(ブレ-キロツド) |
43012001 |
from US $3.33 |
||
|
92081A
|
92081A
92081-1296 SPRING,BRAKE PEDAL REスプリング |
92081-1296 |
from US $6.18 |
||
| replacement | |||||
|
92081A
|
92081A
92145-0105
SPRING,BRAKE PEDAL RE
スプリング |
92145-0105 |
— | ||
