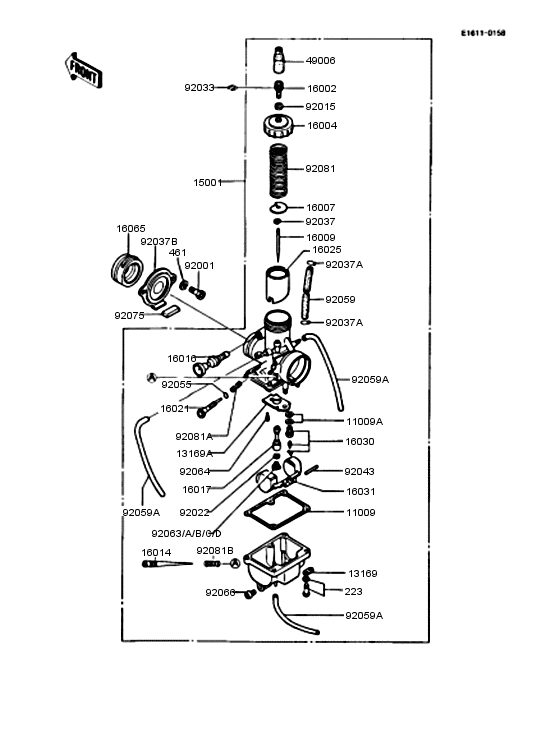

Carburetor Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223B0416 SCREW-PAN-WS-CROSナベコネジ(バネツキ+ジアナ) |
223B0416 |
from US $0.45 |
||
| replacement | |||||
|
223
|
223
223AA0416 SCREW-PAN-WS-CROSナベコネジ(バネツキ+ジアナ) |
223AA0416 |
from US $0.90 |
||
|
461
|
461
461K0600
WASHER-SPRING
バネザガネ，6MM |
461K0600 |
— | ||
| replacement | |||||
|
461
|
461
461DB0600 WASHER-SPRINGバネザガネ，6MM |
461DB0600 |
from US $0.79 |
||
|
92063D
|
92063D
92063-124 JET-MAIN,#A82,5Rジエツト(メイン)，#82.5R |
92063-124 |
US $12.74 |
||
| replacement | |||||
|
92063D
|
92063D
92063-1322 JET-MAIN,#A82,5Rジエツト(メイン)，#82.5R |
92063-1322 |
from US $8.71 |
||
|
92064
|
92064
92064-1033 JET-PILOT,#27.5ジエツト(パイロツト)，#27.5 |
92064-1033 |
from US $10.45 |
||
|
92066
|
92066
92066-1171 PLUG,DRAINプラグ |
92066-1171 |
from US $10.30 |
||
|
92075
|
92075
92075-1423 DAMPER,CARBURETORダンパ，キヤブレタ |
92075-1423 |
US $2.57 |
||
|
92081A
|
92081A
92081-1152 SPRING,THROTTLE ADJSTスプリング |
92081-1152 |
from US $3.64 |
||
|
92081B
|
92081B
92081-1153 SPRING,AIR SCREWスプリング |
92081-1153 |
from US $3.17 |
||
|
92081
|
92081
16006-023 SPRING,THROTTLE VALVスラスト スプリング，スロツトル バルブ |
16006-023 |
from US $10.45 |
||
