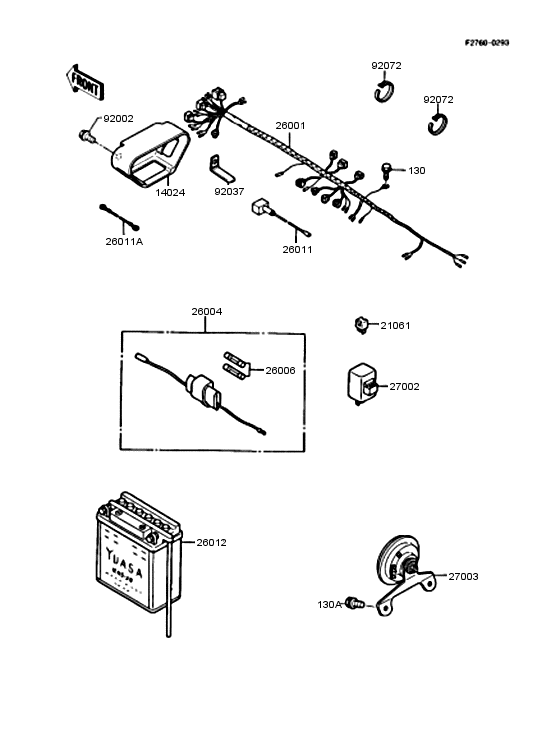

Chassis electrical equipment Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130B0610
BOLT-FLANGED,6X10
ボルト(ツバツキ)，6X10 |
130B0610 |
— | ||
| replacements | |||||
|
130
|
130
130AA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130AA0610 |
from US $0.82 |
||
|
130
|
130
130BA0610 BOLT-FLANGED,6X10ボルト(ツバツキ)，6X10 |
130BA0610 |
from US $0.79 |
||
|
130A
|
130A
130B0614 Boltボルト(ツバツキ) |
130B0614 |
US $0.68 |
||
| replacements | |||||
|
130A
|
130A
130AA0614 BOLT-FLANGEDボルト(ツバツキ) |
130AA0614 |
from US $0.82 |
||
|
130A
|
130A
130BA0614 BOLT-FLANGED,6X14ボルト(ツバツキ) |
130BA0614 |
from US $0.79 |
||
|
14024
|
14024
14024-1329 Cover,harnessカバ-，ハ-ネス |
14024-1329 |
US $13.31 |
||
|
21061
|
21061
21061-1003 RECTIFIERレクテイフアイア |
21061-1003 |
from US $23.94 |
||
|
26001
|
26001
26001-1795 Harnessハ-ネス，メイン |
26001-1795 |
US $214.90 |
||
|
26004
|
26004
26004-1013 Fuse-assyヒユ-ズアツシ |
26004-1013 |
US $27.83 |
||
|
26006
|
26006
26006-1003 FUSE,GLASS TUBE,6.4X3ヒユ-ズ，15A，L=30 |
26006-1003 |
from US $3.64 |
||
|
26011
|
26011
26011-1193 Wire-lead,battery,(+)ワイヤ(リ-ド)，バツテリ，(+) |
26011-1193 |
US $10.77 |
||
|
26011A
|
26011A
26011-1194 Wire-lead,battery,(-)ワイヤ(リ-ド)，バツテリ，(-) |
26011-1194 |
US $11.09 |
||
|
26012
|
26012
26012-1157 Battery,12v 5ah,12n5バツテリ，12V 5AH，12N5-3B |
26012-1157 |
US $216.35 |
||
| replacement | |||||
|
26012
|
26012
XFFB5LB
バツテリ-
バツテリ，12V 5AH，12N5-3B |
XFFB5LB |
— | ||
|
27002
|
27002
27002-1053 RELAY-ASSY,TURN SIGNALリレ-アツシ，タ-ン シグナル |
27002-1053 |
from US $47.72 |
||
|
27003
|
27003
27003-1249 Hornホ-ン |
27003-1249 |
US $57.90 |
||
|
92002
|
92002
92002-1721 BOLT,6X12ボルト，6X12 |
92002-1721 |
from US $2.56 |
||
|
92037
|
92037
92037-113 CLAMP,HARNESSクランプ，ハ-ネス |
92037-113 |
from US $3.96 |
||
|
92072
|
92072
92072-031 BAND,MIDDLEバンド，L=149 |
92072-031 |
from US $3.01 |
||
