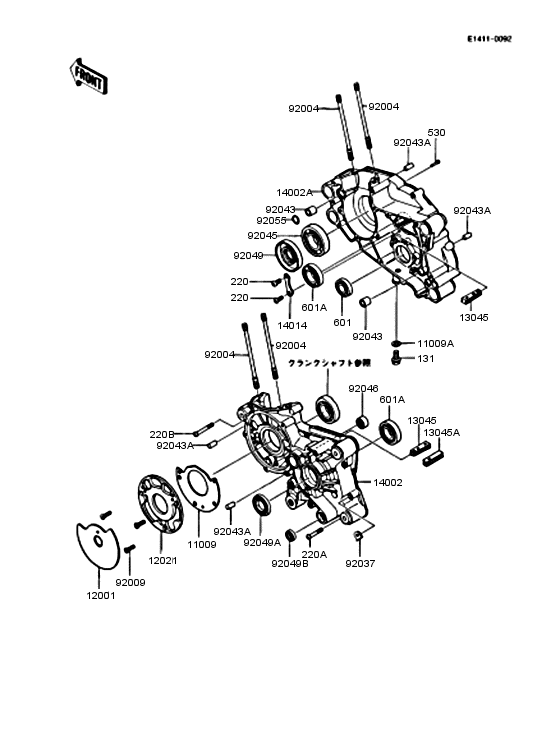

Crankcase Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
131D1020
Bolt-flanged
ボルト(ツバツキ) |
131D1020 |
— | ||
|
220
|
220
220B0612 Screw-pan head,6x12ナベコネジ(+ジアナ)，6X12 |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12ナベコネジ(+ジアナ)，6X12 |
220AA0612 |
from US $0.91 |
||
|
220
|
220
214B0612
Screw-pan+-
ナベコネジ(+ジアナ)，6X12 |
214B0612 |
— | ||
|
220A
|
220A
220X0635
SCREW-PAN-CROS,6X35
ナベコネジ(+ジアナ) |
220X0635 |
— | ||
| replacement | |||||
|
220A
|
220A
220AD0635 SCREW-PAN-CROS,6X35ナベコネジ(+ジアナ) |
220AD0635 |
from US $1.09 |
||
|
220B
|
220B
220X0645
SCREW-PAN-CROS,6X45
ナベコネジ(+ジアナ) |
220X0645 |
— | ||
| replacement | |||||
|
220B
|
220B
220AD0645 SCREW-PAN-CROS,6X45ナベコネジ(+ジアナ) |
220AD0645 |
from US $1.24 |
||
|
530
|
530
530C0316 Rivet-round,3x16マル リベツト，3X16 |
530C0316 |
US $3.17 |
||
|
601A
|
601A
601B6204 BEARING BALL #6204ボ-ル ベアリング，#6204C3 |
601B6204 |
from US $13.94 |
||
|
601
|
601
601B6202 BEARING BALL #6202ボ-ル ベアリング，#6202C3 |
601B6202 |
from US $10.03 |
||
|
11009
|
11009
11009-1327
Gasket,rotary valve
ガスケツト |
11009-1327 |
— | ||
| replacement | |||||
|
11009
|
11009
11060-1167
Gasket,rotary valve
ガスケツト |
11060-1167 |
— | ||
|
11009A
|
11009A
92065-058 GASKETガスケツト，10.5X16X1 |
92065-058 |
from US $3.37 |
||
|
12001
|
12001
12001-1063 Valve-rotaryバルブ(ロ-タリ) |
12001-1063 |
US $30.22 |
||
|
12021
|
12021
12021-1017 Valve-assy-reedバルブアツシ(リ-ド) |
12021-1017 |
US $287.50 |
||
|
13045A
|
13045A
13045-1051 Receiver-oilレシ-バ(オイル) |
13045-1051 |
US $8.08 |
||
|
13045
|
13045
13045-1004 Receiver-oilレシ-バ(オイル) |
13045-1004 |
US $5.39 |
||
|
14002
|
14002
14002-1358 Crankcase,lhクランクケ-ス，LH |
14002-1358 |
US $512.56 |
||
|
14002A
|
14002A
14002-1362 Crankcase,rhクランクケ-ス，RH |
14002-1362 |
US $512.56 |
||
|
14014
|
14014
14014-1028 Plate-positionプレ-ト(ポジシヨン) |
14014-1028 |
US $3.96 |
||
|
92004
|
92004
92004-1157 Studスタツド，8X106 |
92004-1157 |
US $8.71 |
||
|
92009
|
92009
92009-1180 Screw,6x14スクリユ-，6X14 |
92009-1180 |
US $3.48 |
||
|
92037
|
92037
92037-1642 Clampクランプ |
92037-1642 |
from US $3.08 |
||
|
92043
|
92043
92043-1279 PIN,11.5X14X14ピン，11.5X14X14 |
92043-1279 |
from US $3.17 |
||
|
92043A
|
92043A
92043-1322 PIN DOWEL 8X16ピン，8X16; ZX400-L1 |
92043-1322 |
from US $0.74 |
||
| replacement | |||||
|
92043A
|
92043A
551A0816 PIN DOWEL 8X16ピン，8X16; ZX400-L1 |
551A0816 |
US $0.74 |
||
|
92045
|
92045
92045-1143 Bearing-ball,6305yr4-ベアリング(ボ-ル)，6305YR4-9 |
92045-1143 |
US $30.52 |
||
|
92046
|
92046
92046-1051 Bearing-needleベアリング(ニ-ドル) |
92046-1051 |
US $19.64 |
||
|
92049
|
92049
92049-1097 SEAL-OIL,SD29659GSシ-ル(オイル)，SD29659GS |
92049-1097 |
from US $11.16 |
||
|
92049A
|
92049A
92049-1240 SEAL-OILシ-ル(オイル) |
92049-1240 |
US $12.69 |
||
| replacement | |||||
|
92049A
|
92049A
92049-1481 SEAL-OILシ-ル(オイル) |
92049-1481 |
from US $9.65 |
||
|
92049B
|
92049B
92051-005 OIL SEAL,TB13225.5オイル シ-ル，TB13225.5 |
92051-005 |
from US $6.57 |
||
|
92055
|
92055
92055-1141 RING-O,ID=13.8リング(0)，ID=13.8 |
92055-1141 |
from US $2.53 |
||
