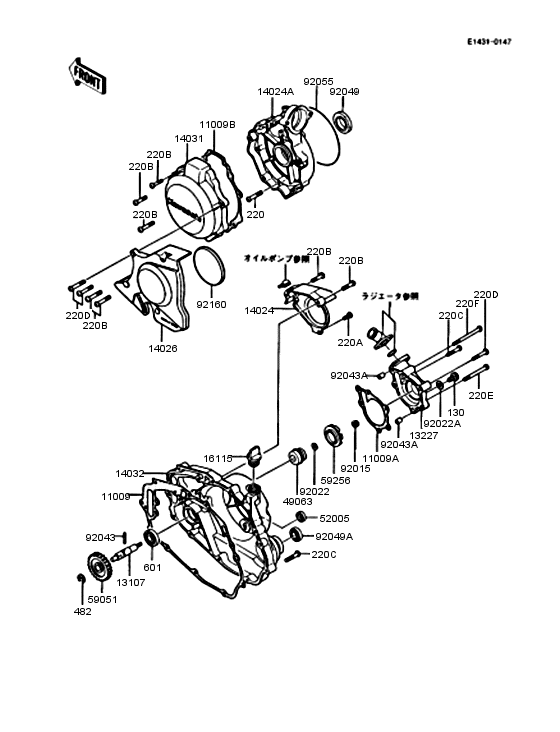

Engine cover Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130X0812 BOLT-FLANGEDボルト(ツバツキ) |
130X0812 |
from US $1.27 |
||
| replacement | |||||
|
130
|
130
130AD0812 BOLT-FLANGEDボルト(ツバツキ) |
130AD0812 |
US $3.47 |
||
|
220F
|
220F
220C0670
SCREW-PAN-CROS,6X70
ナベコネジ(+ジアナ)，6X70 |
220C0670 |
— | ||
|
220
|
220
220B0635
SCREW-PAN-CROSS,6X35
ナベコネジ(+ジアナ)，6X35 |
220B0635 |
— | ||
| replacement | |||||
|
220
|
220
220AA0635 SCREW-PAN-CROSS,6X35ナベコネジ(+ジアナ)，6X35 |
220AA0635 |
from US $0.63 |
||
|
220A
|
220A
220C0612 SCREW-PAN-CROS,6X12ナベコネジ(+ジアナ)，6X12 |
220C0612 |
from US $1.27 |
||
| replacement | |||||
|
220A
|
220A
220AB0612 SCREW-PAN-CROS,6X12ナベコネジ(+ジアナ)，6X12 |
220AB0612 |
from US $1.09 |
||
|
220B
|
220B
220C0625
SCREW-PAN-CROS,6X25,B
ナベコネジ(+ジアナ)，6X25 |
220C0625 |
— | ||
| replacement | |||||
|
220B
|
220B
220AB0625 SCREW-PAN-CROS,6X25,Bナベコネジ(+ジアナ)，6X25 |
220AB0625 |
from US $0.94 |
||
|
220C
|
220C
220C0630
SCREW-PAN-CROSS
ナベコネジ(+ジアナ)，6X30 |
220C0630 |
— | ||
| replacement | |||||
|
220C
|
220C
220AB0630 SCREW-PAN-CROSSナベコネジ(+ジアナ)，6X30 |
220AB0630 |
from US $1.11 |
||
|
220D
|
220D
220C0635 SCREW,6X35ナベコネジ(+ジアナ)，6X35 |
220C0635 |
US $39.40 |
||
| replacement | |||||
|
220D
|
220D
92009-1357 SCREW,6X35ナベコネジ(+ジアナ)，6X35 |
92009-1357 |
from US $3.11 |
||
|
220E
|
220E
220C0660 Screw-pan-cros,6x60ナベコネジ(+ジアナ)，6X60 |
220C0660 |
US $1.90 |
||
| replacement | |||||
|
220E
|
220E
92009-1356 SCREWナベコネジ(+ジアナ)，6X60 |
92009-1356 |
from US $3.27 |
||
|
482
|
482
482J0100 CIRCLIP 10MMトメワ(Eガタ)，10MM |
482J0100 |
from US $1.11 |
||
|
601
|
601
601B6201 BEARING-BALL,#6201C3ボ-ル ベアリング，#6201C3 |
601B6201 |
from US $9.82 |
||
|
11009
|
11009
11009-1301
Gasket,clutch cover
ガスケツト，クラツチ カバ- |
11009-1301 |
— | ||
| replacement | |||||
|
11009
|
11009
11060-1168
Gasket,clutch cover
ガスケツト，クラツチ カバ- |
11060-1168 |
— | ||
|
11009A
|
11009A
11009-1302
Gasket,water housing
ガスケツト; ZX400-L2 |
11009-1302 |
— | ||
|
11009B
|
11009B
11009-1401
Gasket,generator cove
ガスケツト，ゼネレ-タ カバ- |
11009-1401 |
— | ||
| replacement | |||||
|
11009B
|
11009B
11060-1169
Gasket,generator cove
ガスケツト，ゼネレ-タ カバ- |
11060-1169 |
— | ||
|
13107
|
13107
13107-1154 Shaft,water pumpシヤフト，ウオ-タ ポンプ |
13107-1154 |
US $25.28 |
||
|
13227
|
13227
13227-1007 Housing,water pumpハウジング，ウオ-タ ポンプ |
13227-1007 |
US $72.71 |
||
|
14024
|
14024
14025-1537 Cover,oil pumpカバ-，オイル ポンプ |
14025-1537 |
US $32.01 |
||
|
14024A
|
14024A
14025-1831 Cover,valveカバ- |
14025-1831 |
US $144.81 |
||
|
14026
|
14026
14026-1072 Cover-chainカバ-(チエ-ン) |
14026-1072 |
US $43.98 |
||
|
14031
|
14031
14031-1164 Cover-generatorカバ-(ゼネレ-タ) |
14031-1164 |
US $53.86 |
||
|
14032
|
14032
14032-1204 Cover-clutchカバ-(クラツチ) |
14032-1204 |
US $249.74 |
||
|
16115
|
16115
16115018 CAP-OIL FILLERキヤツプ(オイルフイラ) |
16115018 |
from US $7.92 |
||
|
49063
|
49063
49063-1002
SEAL-MECHANICAL
シ-ル(メカニカル)，ウオ-タ ポンプ |
49063-1002 |
— | ||
| replacement | |||||
|
49063
|
49063
49063-1055 SEAL-MECHANICALシ-ル(メカニカル)，ウオ-タ ポンプ |
49063-1055 |
from US $21.37 |
||
|
52005
|
52005
52005-1005 GAUGE,OIL LEVELゲ-ジ，オイル レベル |
52005-1005 |
US $12.89 |
||
| replacement | |||||
|
52005
|
52005
52005-0019 GAUGE,OIL LEVELゲ-ジ，オイル レベル |
52005-0019 |
from US $11.16 |
||
|
59051
|
59051
59051-1048 Gear-spur,water pump,ギヤ(スパ-)，ウオ-タ ポンプ，27T |
59051-1048 |
US $29.62 |
||
|
59256
|
59256
59256-1061 Impeller,Water Pumpインペラ，ウオ-タ ポンプ |
59256-1061 |
US $35.16 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
ナツト，フランジ，6MM |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMナツト，フランジ，6MM |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92022-077 WASHER,6.1X12X1ワツシヤ，6.1X12X1 |
92022-077 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1086 WASHERワツシヤ，8.2X16X1 |
92022-1086 |
from US $3.20 |
||
|
92043
|
92043
92043-1129 PIN,3.5X23.8ピン，3.5X23.8 |
92043-1129 |
from US $2.72 |
||
|
92043A
|
92043A
92043-1302 PIN,DOWEL,8X10ピン，ドウエル，8X10 |
92043-1302 |
from US $1.45 |
||
|
92049
|
92049
92049-1188 SEAL-OIL,SD20407GSシ-ル(オイル)，SD20407GS |
92049-1188 |
from US $11.56 |
||
|
92049A
|
92049A
92051-003 OIL SEAL TB16267オイル シ-ル，TB16267 |
92051-003 |
from US $5.70 |
||
|
92055
|
92055
92055-1169 Ring-o,121.5mmリング(0)，121.5MM |
92055-1169 |
US $8.55 |
||
|
92160
|
92160
92160-1078 ダンパダンパ |
92160-1078 |
US $48.47 |
||
