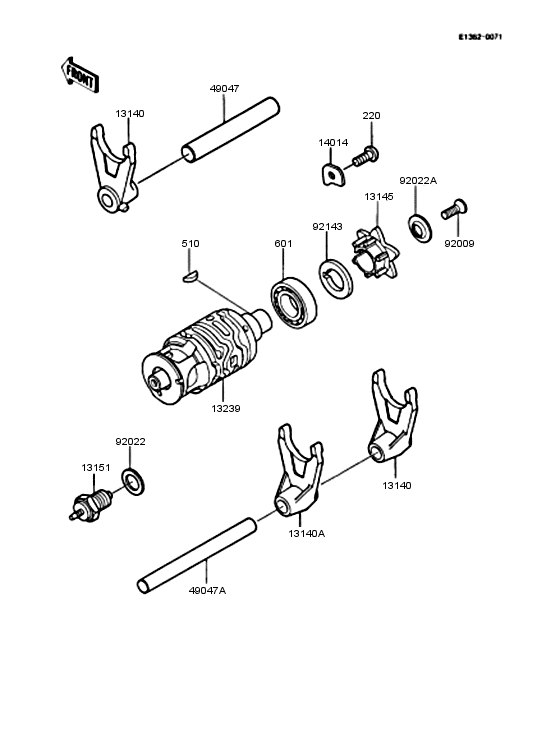

Gear change drum & forks Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0612 Screw-pan head,6x12ナベコネジ(+ジアナ)，6X12 |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
220
|
220
220AA0612 SCREW-PAN-CROSS,6X12ナベコネジ(+ジアナ)，6X12 |
220AA0612 |
from US $0.91 |
||
|
220
|
220
214B0612
Screw-pan+-
ナベコネジ(+ジアナ)，6X12 |
214B0612 |
— | ||
|
510
|
510
510A3200 WOODRUFF KEYハンゲツキ- |
510A3200 |
from US $3.40 |
||
|
601
|
601
601B6004UU BEARING,BALL,*6004UU*ボ-ル ベアリング，#6004UUC3 |
601B6004UU |
from US $25.58 |
||
|
13140
|
13140
13140-1063
Fork-shift
フオ-ク(シフト) |
13140-1063 |
— | ||
|
13140A
|
13140A
13140-1131 Fork,shiftフオ-ク(シフト) |
13140-1131 |
US $78.39 |
||
|
13145
|
13145
13145-1059 CAM-CHANGE DRUMカム(チエンジドラム) |
13145-1059 |
US $41.27 |
||
| replacement | |||||
|
13145
|
13145
13145-1084 CAM-CHANGE DRUMカム(チエンジドラム) |
13145-1084 |
from US $29.47 |
||
|
13151
|
13151
13151-1010 SWITCH,NEUTRALスイツチコンプ |
13151-1010 |
from US $19.80 |
||
|
13239
|
13239
13239-1138 Drum-assy-changeドラムアツシ(チエンジ) |
13239-1138 |
US $135.24 |
||
|
14014
|
14014
14014-1066 PLATE-POSITIONプレ-ト(ポジシヨン)，ドラム |
14014-1066 |
US $3.17 |
||
|
49047A
|
49047A
49047-1060 ROD-SHIFT,10X102ロツド(シフト)，10X102 |
49047-1060 |
from US $12.49 |
||
|
49047
|
49047
13209014 RODSHIFT,SHORTロツド(シフト)，10X80 |
13209014 |
from US $11.29 |
||
|
92009
|
92009
92009-1360 SCREW,6X16スクリユ-，6X16 |
92009-1360 |
from US $2.69 |
||
|
92022
|
92022
92022-1211 WASHER,12X18X1ワツシヤ |
92022-1211 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1792 WASHERワツシヤ |
92022-1792 |
from US $3.33 |
||
|
92143
|
92143
92143-1049 Collarカラ- |
92143-1049 |
US $11.40 |
||
