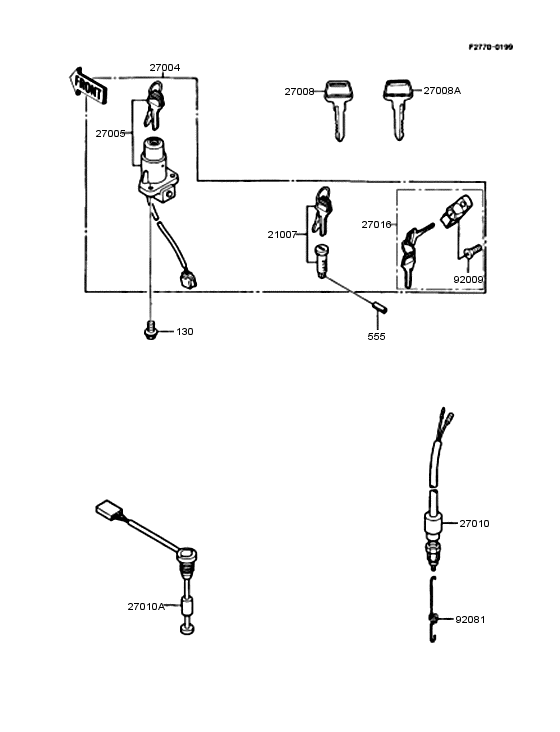

Ignition switch Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130D0614
BOLT-FLANGED,6X14
ボルト(ツバツキ)，6X14 |
130D0614 |
— | ||
| replacements | |||||
|
130
|
130
130AA0614 BOLT-FLANGEDボルト(ツバツキ)，6X14 |
130AA0614 |
from US $0.82 |
||
|
130
|
130
130BA0614 BOLT-FLANGED,6X14ボルト(ツバツキ)，6X14 |
130BA0614 |
from US $0.79 |
||
|
555
|
555
555B0325 PIN-SPRING,3X25スプリング ピン，3X25 |
555B0325 |
from US $2.53 |
||
|
21007
|
21007
21007-5001 Rotor assy,seat&tankロ-タ，ロツク |
21007-5001 |
US $47.27 |
||
|
27004
|
27004
27004-5173 Switch-assyスイツチアツシ |
27004-5173 |
US $226.51 |
||
|
27005
|
27005
27005-1055
SWITCH-ASSY-IGNITION
スイツチアツシ(イグニシヨン) |
27005-1055 |
— | ||
|
27008
|
27008
27008-1034 KEY-LOCK,BLANK,#Aキ-(ロツク)，ブランク，#A |
27008-1034 |
from US $13.94 |
||
|
27008A
|
27008A
27008-1035 KEY-LOCK,BLANKキ-(ロツク)，ブランク，#B |
27008-1035 |
US $15.71 |
||
| replacement | |||||
|
27008A
|
27008A
27008-1105 KEY-LOCK,BLANKキ-(ロツク)，ブランク，#B |
27008-1105 |
from US $12.83 |
||
|
27010A
|
27010A
27010-1049 SWITCH,OIL LEVELスイツチ，オイル レベル |
27010-1049 |
from US $45.63 |
||
|
27010
|
27010
27010-1019
SWITCH,REAR BRAKE
スイツチ，リヤ ブレ-キ |
27010-1019 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-1474 SWITCH,REAR BRAKEスイツチ，リヤ ブレ-キ |
27010-1474 |
from US $21.84 |
||
|
27016
|
27016
27016-5029
LOCK-ASSY,HELMET
ロツクアツシ，ヘルメツト |
27016-5029 |
— | ||
| replacements | |||||
|
27016
|
27016
27016-5285
ロツクアツシ，ヘルメツト
ロツクアツシ，ヘルメツト |
27016-5285 |
— | ||
|
27016
|
27016
92009-1547 SCREW,5X18ロツクアツシ，ヘルメツト |
92009-1547 |
US $3.48 |
||
|
92009
|
92009
92009-1547 SCREW,5X18スクリユ-，5X18 |
92009-1547 |
US $3.48 |
||
|
92081
|
92081
27011017 SPRING,BRAKE LAMP SNスプリング(ブレ-キスイツチ) |
27011017 |
from US $7.29 |
||
