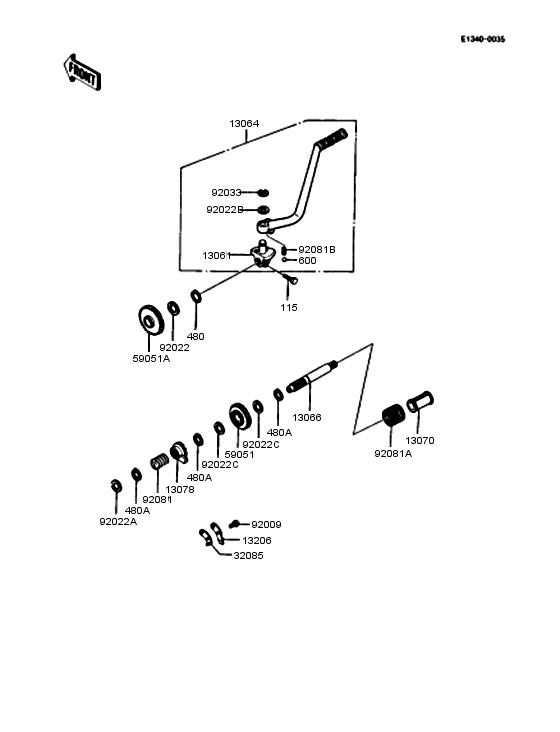

Kickstarter mechanism Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115J0825
BOLT-SMALL-UPSET,8X25
ボルト(コガタアプセツト) |
115J0825 |
— | ||
| replacement | |||||
|
115
|
115
115BB0825 BOLT-SMALL-UPSET,8X25ボルト(コガタアプセツト) |
115BB0825 |
from US $1.09 |
||
|
480
|
480
480J1500 CIRCLIP 15MMトメワ(ジクヨウ)，15MM |
480J1500 |
from US $1.11 |
||
|
480A
|
480A
480J1600 CIRCLIP 16MMトメワ(ジクヨウ)，16MM |
480J1600 |
from US $1.43 |
||
|
600
|
600
600A0800 BALL,6.35MMコウキユウ，1/4" |
600A0800 |
from US $0.82 |
||
|
13061
|
13061
13061-1142 Boss,kick pedalボス，キツク ペダル |
13061-1142 |
US $50.42 |
||
|
13064
|
13064
13064-1119 Lever-assy-kick,pedalレバ-アツシ(キツク)，ペダル |
13064-1119 |
US $122.97 |
||
|
13066
|
13066
13066-1057 Shaft-kickシヤフト(キツク) |
13066-1057 |
US $77.04 |
||
|
13070
|
13070
13070-1035 GUIDE,KICK SHAFTガイド |
13070-1035 |
from US $6.18 |
||
|
13078
|
13078
13078-1054 Ratchetラチエツト |
13078-1054 |
US $50.42 |
||
|
13206
|
13206
13206-1002 GUIDE,KICKガイド(キツク) |
13206-1002 |
from US $5.54 |
||
|
32085
|
32085
32085-1027 STOPPER,KICKストツパ，キツク スタ-タ |
32085-1027 |
from US $6.93 |
||
|
59051
|
59051
59051-1045 Gear-spur,kick,28tギヤ(スパ-)，28T |
59051-1045 |
US $57.30 |
||
|
59051A
|
59051A
59051-1046 Gear-spur,idle,33tギヤ(スパ-)，33T |
59051-1046 |
US $57.30 |
||
|
92009
|
92009
92009-1104 SCREW,TAPPINGスクリユ-，タツピング |
92009-1104 |
from US $2.53 |
||
|
92022B
|
92022B
92022-1534 WASHER,14X24X1.8ワツシヤ，14X24X1.8 |
92022-1534 |
from US $5.70 |
||
|
92022C
|
92022C
92022-315 WASHER,PLAINワツシヤ，16.8X22X0.5 |
92022-315 |
from US $3.48 |
||
|
92022
|
92022
92022-1045 WASHER,PLAINワツシヤ，15.3X25X0.5 |
92022-1045 |
US $3.64 |
||
|
92022A
|
92022A
92022-1224 WASHER,13.2X20X0.5ワツシヤ，13.2X20X0.5 |
92022-1224 |
from US $3.37 |
||
|
92033
|
92033
92033-1166 RING-SNAP,10MMリング(スナツプ)，10MM |
92033-1166 |
from US $2.53 |
||
|
92081
|
92081
92081-122 SPRING,RATCHETスプリング |
92081-122 |
from US $5.70 |
||
|
92081A
|
92081A
92081-1276 SPRING,KICK STARTERスプリング |
92081-1276 |
from US $8.40 |
||
|
92081B
|
92081B
92081-154 SPRINGスプリング |
92081-154 |
US $3.96 |
||
