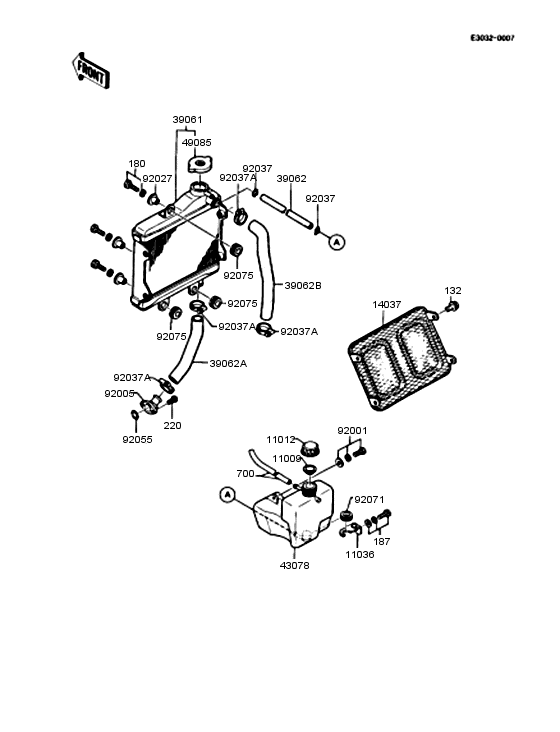

Radiator Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132J0612
BOLT-FLANGED-SMALL,6X
ボルト(コガタツバツキ) |
132J0612 |
— | ||
| replacement | |||||
|
132
|
132
132BB0612 BOLT-FLANGED-SMALL,6Xボルト(コガタツバツキ) |
132BB0612 |
from US $0.95 |
||
|
180
|
180
180C0625 BOLT-UPSET-WS,6X25ボルト(アプセツトバネツキ)，6X25 |
180C0625 |
from US $1.43 |
||
| replacement | |||||
|
180
|
180
180AB0625 BOLT-UPSET-WS,6X25ボルト(アプセツトバネツキ)，6X25 |
180AB0625 |
US $2.41 |
||
|
187
|
187
187B0616
BOLT-UPSET-WSP
ボルト(アプセツトバネヒラツキ) |
187B0616 |
— | ||
| replacement | |||||
|
187
|
187
187AA0616 BOLT-UPSET-WSPボルト(アプセツトバネヒラツキ) |
187AA0616 |
from US $1.70 |
||
|
220
|
220
220X0514 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220X0514 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AD0514 SCREW-PAN-CROSナベコネジ(+ジアナ) |
220AD0514 |
from US $0.78 |
||
|
700
|
700
700Q05360
Tube-pvc,5x360
ビニ-ル チユ-ブ，5X360 |
700Q05360 |
— | ||
|
11009
|
11009
11009-1145 GASKET,RESERVE TANKガスケツト，リザ-バ タンク キヤツプ |
11009-1145 |
from US $1.79 |
||
|
11012
|
11012
11012-1084 CAP,RESERVE TANKキヤツプ; ZX400-L3 |
11012-1084 |
from US $2.14 |
||
|
11036
|
11036
11036-1631
Bracket-a,reservoir,t
ブラケツト |
11036-1631 |
— | ||
|
14037
|
14037
14037-1084 Screenスクリ-ン |
14037-1084 |
US $53.86 |
||
|
39061
|
39061
39061-1076 Radiator-assyラジエ-タアツシ; ZX400-L1 |
39061-1076 |
US $1,000.43 |
||
|
39062
|
39062
39062-1007 HOSE-COOLING,5.5X10.5ホ-ス(ク-リング) |
39062-1007 |
US $29.25 |
||
| replacement | |||||
|
39062
|
39062
39062-0080 HOSE-COOLING,5.5X10.5ホ-ス(ク-リング) |
39062-0080 |
from US $25.50 |
||
|
39062A
|
39062A
39062-1008 Hose-cooling,radiatorホ-ス(ク-リング) |
39062-1008 |
US $25.58 |
||
|
39062B
|
39062B
39062-1009 Hose-cooling,radiatorホ-ス(ク-リング) |
39062-1009 |
US $33.66 |
||
|
43078
|
43078
43078-1010 Reservoir,tankリザ-バ; ZX400-L2 |
43078-1010 |
US $37.40 |
||
|
49085
|
49085
49085-1053
CAP-ASSY-PRESSURE
キヤツプアツシ(プレツシヤ) |
49085-1053 |
— | ||
| replacement | |||||
|
49085
|
49085
49085-1066 CAP-ASSY-PRESSUREキヤツプアツシ(プレツシヤ) |
49085-1066 |
from US $33.96 |
||
|
92001
|
92001
92001-1763 BOLT,W/SP,6X16ボルト，バネザガネ ツキ，6X16 |
92001-1763 |
from US $3.01 |
||
|
92005
|
92005
92005-1128 Fitting,radiator lowフイテイング |
92005-1128 |
US $13.78 |
||
|
92027
|
92027
92027-251
COLLAR
カラ-，L=13.1 |
92027-251 |
— | ||
| replacement | |||||
|
92027
|
92027
92152-0365 COLLARカラ-，L=13.1 |
92152-0365 |
from US $0.91 |
||
|
92037
|
92037
92037-147 CLAMP,CHAIN OILERクランプ，チユ-ブ |
92037-147 |
from US $4.95 |
||
|
92037A
|
92037A
92037-1589 CLAMP,COOLING HOSEクランプ，ク-リング ホ-ス |
92037-1589 |
from US $12.04 |
||
|
92055
|
92055
92055-078 O RING,NEWTRAL PSTリング(0) |
92055-078 |
from US $3.80 |
||
|
92071
|
92071
92071-1047 GROMMET,RESERVIRグロメツト |
92071-1047 |
from US $3.80 |
||
|
92075
|
92075
92075-209 DAMPER RUBBER,RR FENRダンパ |
92075-209 |
from US $3.73 |
||
