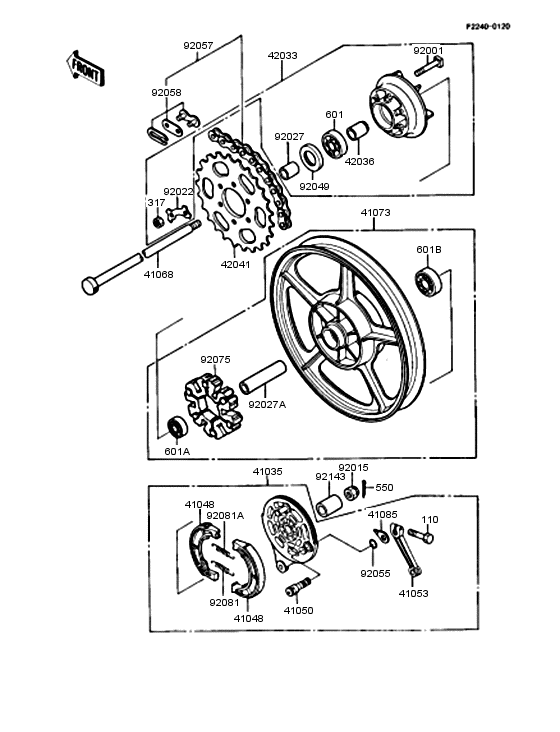

Rear wheel/chain Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110G0622 BOLT-UPSETボルト，6X22 |
110G0622 |
US $27 |
||
| replacement | |||||
|
110
|
110
112BA0622 BOLT-UPSETボルト，6X22 |
112BA0622 |
from US $1.61 |
||
|
317
|
317
317B0800 NUT-HEX-SMALLロツカク ナツト(コガタ)，8MM |
317B0800 |
from US $0.94 |
||
| replacement | |||||
|
317
|
317
317AA0800 NUT-HEX-SMALLロツカク ナツト(コガタ)，8MM |
317AA0800 |
from US $0.94 |
||
|
550
|
550
550D3025
PIN-COTTER,3.0X25
ワリ ピン，3.0X25 |
550D3025 |
— | ||
| replacement | |||||
|
550
|
550
550AA3025 PIN-COTTER,3.0X25ワリ ピン，3.0X25 |
550AA3025 |
from US $0.82 |
||
|
601
|
601
601B6004G BEARING BALL #6004ボ-ル ベアリング，#6004G |
601B6004G |
US $11.25 |
||
| replacement | |||||
|
601
|
601
601B6004 BEARING BALL #6004ボ-ル ベアリング，#6004G |
601B6004 |
from US $8.93 |
||
|
601A
|
601A
601B6202ZG
Ball bearing
ボ-ル ベアリング，#6202ZG |
601B6202ZG |
— | ||
| replacement | |||||
|
601A
|
601A
601B6202Z
BEARING BALL #6202Z
ボ-ル ベアリング，#6202ZG |
601B6202Z |
— | ||
|
601B
|
601B
601B6302ZG BEARING BALL #6302Zボ-ル ベアリング，#6302ZG |
601B6302ZG |
US $20.05 |
||
| replacement | |||||
|
601B
|
601B
601B6302Z BEARING BALL #6302Zボ-ル ベアリング，#6302ZG |
601B6302Z |
from US $10.27 |
||
|
41035
|
41035
41035-1116
Panel-assy-brake,rr
パネルアツシ(ブレ-キ)，RR |
41035-1116 |
— | ||
|
41048
|
41048
41048-1025 SHOE-BRAKEシユ-(ブレ-キ)，RR |
41048-1025 |
US $70.74 |
||
| replacement | |||||
|
41048
|
41048
41048-1076 SHOE-BRAKEシユ-(ブレ-キ)，RR |
41048-1076 |
from US $30.75 |
||
|
41050
|
41050
42026026 CAM SHAFT,REAR BRAKEブレ-キ カム |
42026026 |
US $21.54 |
||
|
41053
|
41053
41053-1036 LEVER-BRAKE CAM, RRレバ-(ブレ-キカム)，RR |
41053-1036 |
from US $38.34 |
||
|
41068
|
41068
41068-1102
AXLE,RR
アクスル，RR |
41068-1102 |
— | ||
|
41073
|
41073
41073-1168-H9
Wheel-assy,rr,solide
ホイ-ルアツシ，RR，ゴ-ルド |
41073-1168-H9 |
— | ||
|
41085
|
41085
41085013 INDICATOR,FR BK SHOEインデイケ-タ，ブレ-キ シユ- |
41085013 |
from US $10.45 |
||
|
42033
|
42033
42033-1050
Coupling-assy,rr
カツプリングアツシ，RR |
42033-1050 |
— | ||
|
42036
|
42036
42036030 SLEEVE,REAR HUBスリ-ブ，リヤ ハブ カツプリング |
42036030 |
from US $20.75 |
||
|
42041
|
42041
42041-1153 Sprocket (Hub). 37Tスプロケツト(ハブ)，37T |
42041-1153 |
US $51.46 |
||
|
92001
|
92001
92001-1478 BOLT,8X41ボルト，8X41 |
92001-1478 |
US $3.02 |
||
|
92015
|
92015
42045020 NUT,CASTLE,14MMナツト，キヤツスル，14MM |
42045020 |
US $8.41 |
||
| replacement | |||||
|
92015
|
92015
92015-1765 NUT,CASTLE,14MMナツト，キヤツスル，14MM |
92015-1765 |
from US $6.34 |
||
|
92022
|
92022
92088-019 WASHER,SPROCKET LOCKロツク ワツシヤ |
92088-019 |
from US $3.48 |
||
|
92027
|
92027
92027-1349 COLLAR-REAR HUB,15X26カラ-，リヤ ハブ，15X26X32.5 |
92027-1349 |
US $18.37 |
||
|
92027A
|
92027A
92027-1508 COLLAR,RR HUB,L=57カラ-，リヤ ハブ |
92027-1508 |
US $9.98 |
||
|
92049
|
92049
92050-060 OIL SEAL,RR HUB BRNGオイル シ-ル |
92050-060 |
from US $11.56 |
||
|
92055
|
92055
92055-004 0 RING,11MMリング(0) |
92055-004 |
from US $3.17 |
||
|
92057
|
92057
92057-1090
Chain,drive,ek428sh-g
チエ-ン，EK428SHG，116L |
92057-1090 |
— | ||
| replacement | |||||
|
92057
|
92057
92057-1340
Chain,drive,ek428sh-r
チエ-ン，EK428SHG，116L |
92057-1340 |
— | ||
|
92058
|
92058
92058-1015 JOINT-CHAINジヨイント(チエ-ン)，EX428SH |
92058-1015 |
from US $4.19 |
||
|
92075
|
92075
42014030 DAMPER,REAR HUB SHOCKシヨツク ダンパ- |
42014030 |
from US $9.86 |
||
| replacement | |||||
|
92075
|
92075
92161-1327 DAMPER,REAR HUB SHOCKシヨツク ダンパ- |
92161-1327 |
from US $8.08 |
||
|
92081
|
92081
92081-1550 SPRING,BRAKE SHOEスプリング，ブレ-キ シユ- |
92081-1550 |
from US $6.34 |
||
|
92081A
|
92081A
92081-1766 SPRING,BRAKE SHOEスプリング，ブレ-キ シユ- |
92081-1766 |
from US $5.39 |
||
|
92143
|
92143
92143-1153 COLLARカラ-，リヤ アクスル，L=36 |
92143-1153 |
US $15.21 |
||
