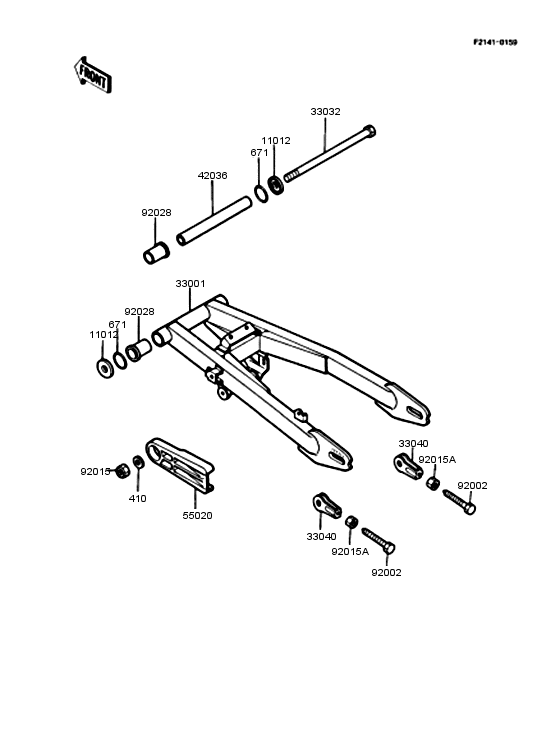

Swingarm Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
410
|
410
410F1200 WASHER-PLANE-SMALL,12ヒラザガネ(コガタマル)，12MM |
410F1200 |
from US $1.27 |
||
| replacement | |||||
|
410
|
410
410AB1200 WASHER-PLANE-SMALL,12ヒラザガネ(コガタマル)，12MM |
410AB1200 |
from US $1.09 |
||
|
671
|
671
671B2530 0 RING,30MMO リング(コテイヨウ)，30MM |
671B2530 |
from US $3.17 |
||
|
11012
|
11012
33035005 CAP-SWINGING ARMキヤツプ，スイング ア-ム |
33035005 |
from US $6.16 |
||
|
33001
|
33001
33001-1201-H9 Arm-comp-swing,no.1ア-ムコンプ(スイング)，ゴ-ルド |
33001-1201-H9 |
US $373.16 |
||
|
33032
|
33032
33032-1038 Shaft-swing arm,blackシヤフト(スイングア-ム) |
33032-1038 |
US $40.24 |
||
|
33040
|
33040
33040-1010 ADJUSTER,CHAINアジヤスタ(チエ-ン) |
33040-1010 |
from US $15.35 |
||
|
42036
|
42036
42036-1003 SLEEVE,SWING ARMスリ-ブ，スイング ア-ム |
42036-1003 |
from US $39.64 |
||
|
55020
|
55020
55020-1079 Guard,chainガ-ド，チエ-ン |
55020-1079 |
US $37.40 |
||
|
92002
|
92002
92002-1076 BOLT,8X50ボルト，チエ-ン アジヤスタ，8X50 |
92002-1076 |
from US $6.34 |
||
|
92015
|
92015
92015-1190 NUT,LOCK,12MM,BLACKナツト，ロツク，12MM |
92015-1190 |
from US $3.96 |
||
|
92015A
|
92015A
92015-1364 NUT,8MMナツト，8MM |
92015-1364 |
from US $2.53 |
||
|
92028
|
92028
33033006 BUSHING-SWING ARMブツシユ(スイングア-ム) |
33033006 |
US $74.05 |
||
| replacement | |||||
|
92028
|
92028
33033009
BUSHING-SWING ARM
ブツシユ(スイングア-ム) |
33033009 |
— | ||
