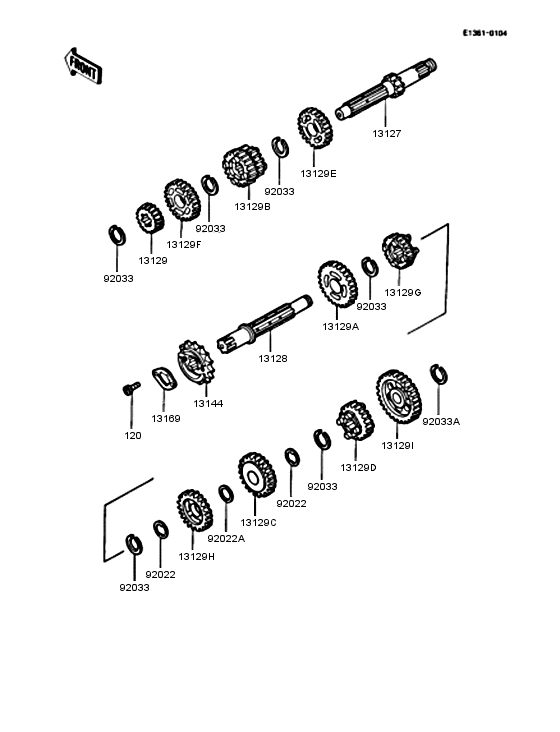

Transmission Diagram Kawasaki AR125
- Year
- 1990
- Colour
- Ebony (H8)
- Model code
- AR125-A8
- Sales region
- Japan
- Engine Capacity
- 125
- Frame
- AR125A 017001 -
- Engine
- AR125AE 017001 -
- Model
- AR125S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120Q0610 BOLT-SOCKET,6X10ボルト(ロツカクアナ)，6X10 |
120Q0610 |
US $22.10 |
||
| replacement | |||||
|
120
|
120
120CB0610 BOLT-SOCKET,6X10ボルト(ロツカクアナ)，6X10 |
120CB0610 |
from US $1.11 |
||
|
13127
|
13127
13127-1069 Shaft-transmission inシヤフト(トランスミツシヨンインプツト，13T |
13127-1069 |
US $168.43 |
||
|
13128
|
13128
13128-1140 Shaft-transmission ouシヤフト(トランスミツシヨンアウトプツ |
13128-1140 |
US $123.42 |
||
|
13129C
|
13129C
13129-1437 Gear,output 3rd,25tギヤ，アウトプツト 3RD，25T |
13129-1437 |
US $80.93 |
||
|
13129D
|
13129D
13129-1516 Gear,output 5th 20tギヤ，アウトプツト 5TH，20T |
13129-1516 |
US $107.56 |
||
|
13129E
|
13129E
13129-1620 Gear-transmission spuギヤ，インプツト 5TH，22T |
13129-1620 |
US $72.71 |
||
|
13129F
|
13129F
13129-1675 Gear-input top,23tギヤ，インプツト TOP，23T |
13129-1675 |
US $72.71 |
||
|
13129G
|
13129G
13129-1676 Gear-output top,19tギヤ，アウトプツト TOP，19T |
13129-1676 |
US $100.23 |
||
|
13129H
|
13129H
13129-1924 Gear,output 4th,23tギヤ，アウトプツト 4TH，23T |
13129-1924 |
US $65.97 |
||
|
13129I
|
13129I
13129-1954 Gear,output low,33tギヤ，アウトプツト ロ-，33T |
13129-1954 |
US $115.34 |
||
|
13129
|
13129
13129-1434 Gear,input 2nd,18tギヤ，インプツト 2ND，18T |
13129-1434 |
US $57.30 |
||
|
13129A
|
13129A
13129-1435 Gear,output 2nd,28tギヤ，アウトプツト 2ND，28T |
13129-1435 |
US $107.56 |
||
|
13129B
|
13129B
13129-1436 Gear,input 3rd&4th,21ギヤ，インプツト 3RD4TH，21T23T |
13129-1436 |
US $130.90 |
||
|
13144
|
13144
13144-1134 スプロケツト(アウトプツト)，14tスプロケツト(アウトプツト)，14T |
13144-1134 |
US $57.45 |
||
|
13169
|
13169
13169-1541
Plate,sprocket
プレ-ト |
13169-1541 |
— | ||
| replacement | |||||
|
13169
|
13169
13271-1052 PLATE,SPROCKETプレ-ト |
13271-1052 |
from US $3.64 |
||
|
92022
|
92022
92022-1033 WASHER,TOOTHED,20.3X2ワツシヤ，ハツキ，20.3X24X0.5 |
92022-1033 |
from US $4.12 |
||
|
92022A
|
92022A
92022-252 WASHERワツシヤ，20.5X25.5X0.5 |
92022-252 |
from US $3.48 |
||
|
92033
|
92033
92033-029 CIRCLIP,18MMリング(スナツプ)，18MM |
92033-029 |
from US $6.34 |
||
|
92033A
|
92033A
92033-1215 RING-SNAP,14MMリング(スナツプ)，14MM |
92033-1215 |
US $3.17 |
||
