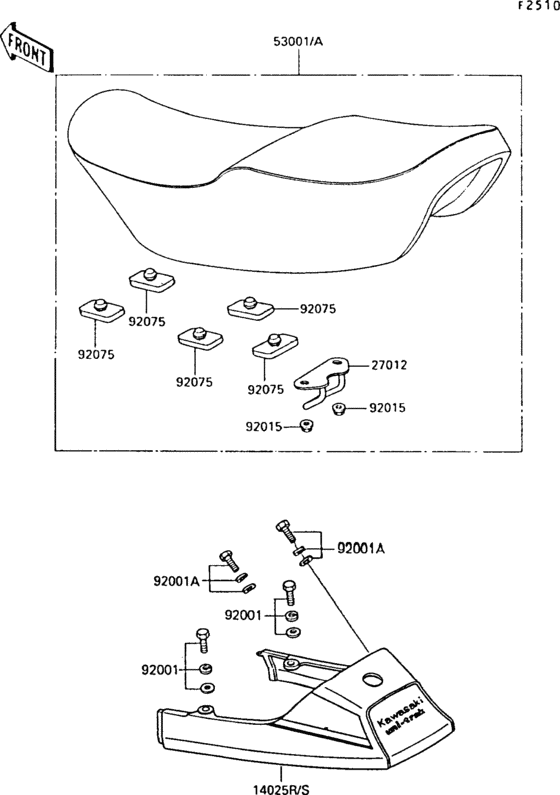

Seat Diagram Kawasaki AR50
- Year
- 1992
- Model code
- AR50-C10
- Sales region
- Netherlands
- Engine Capacity
- 50
- Frame
- AR050C 024001 - 999999
- Model
- AR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14025R
|
14025R
14025-5304-6C COVER,SEAT,EBONY |
14025-5304-6C |
US $146.14 |
||
|
14025S
|
14025S
14025-5305-6B
COVER,SEAR,S.RED
|
14025-5305-6B |
— | ||
|
27012
|
27012
27012-1038 HOOK,SEAT |
27012-1038 |
from US $8.53 |
||
|
53001
|
53001
53001-1277-MA SEAT-ASSY,BLACK |
53001-1277-MA |
US $293.33 |
||
|
53001A
|
53001A
53001-1277-MG
SEAT-ASSY,RED
|
53001-1277-MG |
— | ||
|
92001
|
92001
92001-1762 BOLT,W/SP,6X14 |
92001-1762 |
from US $2.53 |
||
|
92001A
|
92001A
92001-1862 BOLT,W/SP,6X14 |
92001-1862 |
from US $3.33 |
||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MM |
92210-0630 |
from US $0.95 |
||
|
92075
|
92075
92075-1153 DAMPER,SEAT |
92075-1153 |
from US $3.33 |
