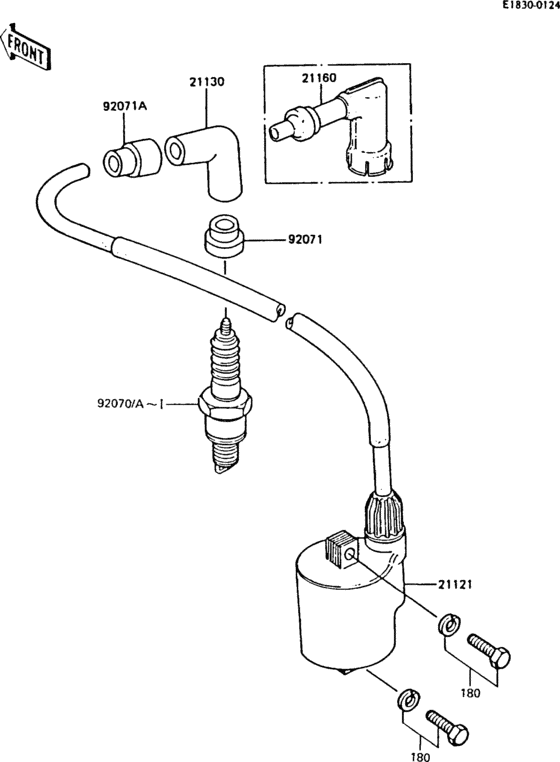

Ignition System Diagram Kawasaki AR50
- Year
- 1988
- Model code
- AR50-C6
- Engine Capacity
- 50
- Frame
- AR050C 007001 - 009200
- Model
- AR50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0516 BOLT-UPSET-WS |
180B0516 |
from US $1.27 |
||
| replacement | |||||
|
180
|
180
180AA0516 BOLT-UPSET-WS |
180AA0516 |
US $2.41 |
||
|
21121
|
21121
21121-1040 COIL-IGNITION |
21121-1040 |
US $99.18 |
||
|
21130
|
21130
21130-1007
CAP-SPARK PLUG,RTFM20
|
21130-1007 |
— | ||
|
21160
|
21160
21160-005
Cap,spark plug
|
21160-005 |
— | ||
|
92070
|
92070
E9207-0014
B6es (ngk sparkplug)
|
E9207-0014 |
— | ||
|
92070A
|
92070A
92037-1173 CLAMP,SPARK PLUG CAP |
92037-1173 |
from US $2.69 |
||
|
92070D
|
92070D
21121-1118 COIL-IGNITION |
21121-1118 |
from US $118.33 |
||
|
92070F
|
92070F
E9207-0014
B6es (ngk sparkplug)
|
E9207-0014 |
— | ||
|
92070I
|
92070I
E9207-0014
B6es (ngk sparkplug)
|
E9207-0014 |
— | ||
|
92071
|
92071
21131-004 GROMMET-PLUG CAP,A |
21131-004 |
from US $8.71 |
||
|
92071A
|
92071A
21132005 GROMMET,SPARK PLG CAP |
21132005 |
US $5.54 |
||
