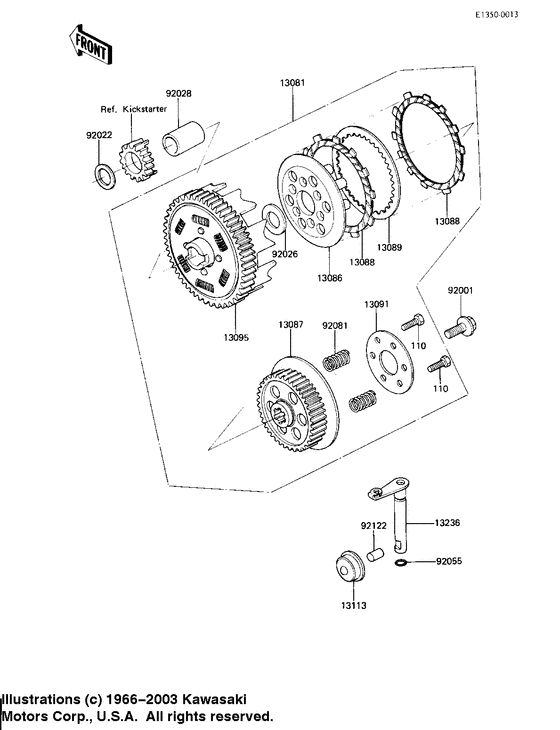

Clutch Diagram Kawasaki AR80
- Year
- 1982
- Model code
- AR80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- AR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
112G0516
BOLT-UPSET
|
112G0516 |
— | ||
| replacement | |||||
|
110
|
110
112BA0516 BOLT-UPSET |
112BA0516 |
from US $1.89 |
||
|
13081
|
13081
13081-5001 CLUTCH-ASSY |
13081-5001 |
US $221.95 |
||
|
13086
|
13086
13086-1004
WHEEL-CLUTCH
|
13086-1004 |
— | ||
|
13087
|
13087
13087-1113 Hub-clutch |
13087-1113 |
from US $43.25 |
||
|
13088
|
13088
13088-1103
PLATE,CLUTCH FRICTION
|
13088-1103 |
— | ||
| replacement | |||||
|
13088
|
13088
13088-1010 PLATE,CLUTCH FRICTION |
13088-1010 |
from US $13.55 |
||
|
13089
|
13089
13089-1009
PLATE-CLUTCH,STEEL
Plate-clutch,steel; |
13089-1009 |
— | ||
| replacement | |||||
|
13089
|
13089
13089-1087 Plate, clutchPlate-clutch,steel; |
13089-1087 |
from US $9.52 |
||
|
13091
|
13091
13091-1115 HOLDER,CLUTCH SPRINGHolder,clutch spring; |
13091-1115 |
from US $11.34 |
||
|
13095
|
13095
13095-5001 HOUSING-COMP-CLUTCH |
13095-5001 |
US $249.57 |
||
|
13113
|
13113
13113003 PUSHER CLUTCH SPRINGPusher clutch spring; |
13113003 |
from US $5.60 |
||
|
13236
|
13236
13236-1044 LEVER-COMP,CLUTCH RELLever-comp,clutch rel; |
13236-1044 |
US $30.64 |
||
|
92001
|
92001
92001-1359 BOLT,8X18Bolt,8x18; |
92001-1359 |
from US $2.72 |
||
|
92022
|
92022
92022-255 WASHER,17.3X28X1.0Washer,17.3x28x1.0; |
92022-255 |
from US $4.84 |
||
|
92026
|
92026
92026-1096 SPACER,CLUTCHSpacer,clutch; |
92026-1096 |
from US $3.78 |
||
|
92028
|
92028
92028-1117 BUSHING,17X22X34.5Bushing,17x22x34.5; |
92028-1117 |
US $11.90 |
||
|
92055
|
92055
92055-1023 O-RING"0" ring; |
92055-1023 |
from US $2.24 |
||
|
92081
|
92081
92081-1485
SPRING,CLUTCH
Spring,clutch; |
92081-1485 |
— | ||
|
92122
|
92122
92122-1019
ROLLER,10X12
Roller,10x12; |
92122-1019 |
— | ||
