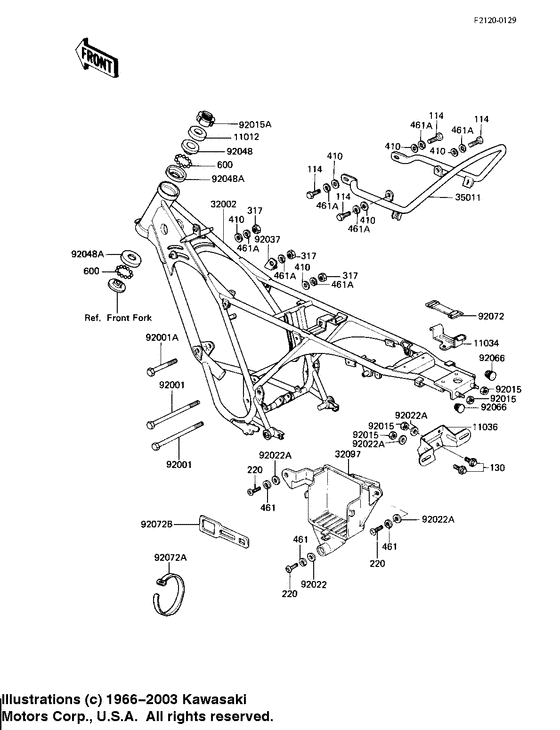

Frame/frame fittings Diagram Kawasaki AR80
- Year
- 1982
- Model code
- AR80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- AR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
114
|
114
115B0822
BOLT-SMALL-UPSET,8X22
Bolt-small-upset,8x22; |
115B0822 |
— | ||
|
130
|
130
130B0612 BOLT,FLANGE,6X12Bolt; |
130B0612 |
US $7.70 |
||
| replacements | |||||
|
130
|
130
130AA0612 BOLT,FLANGE,6X12Bolt; |
130AA0612 |
from US $0.91 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12Bolt; |
130BA0612 |
from US $0.76 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.84 |
||
|
317
|
317
317B0800 NUT-HEX-SMALLNut,8m/m; |
317B0800 |
US $0.91 |
||
| replacement | |||||
|
317
|
317
317AA0800 NUT-HEX-SMALLNut,8m/m; |
317AA0800 |
from US $0.91 |
||
|
410
|
410
410B0800
WASHER-PLAIN-SMALL,8M
Washer plain 8mm; |
410B0800 |
— | ||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.56 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.42 |
||
|
461A
|
461A
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
461A
|
461A
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.42 |
||
|
600
|
600
600A0600 BALL STEEL 3/16'Ball steel 3/16'; |
600A0600 |
from US $1.05 |
||
|
11012
|
11012
46098004 CAP STEERING STEMCap steering stem; |
46098004 |
from US $3.93 |
||
|
11034
|
11034
11034-1991
BRACKET,TOOL KIT
Bracket,tool kit; |
11034-1991 |
— | ||
|
11036
|
11036
11036-1509 BRACKET,NUMBER PLATEBracket,number plate; |
11036-1509 |
US $16.17 |
||
|
32002
|
32002
32002-1489 FRAME-COMP |
32002-1489 |
US $327.60 |
||
|
32097
|
32097
32097-1032 CASE-BATTERY |
32097-1032 |
US $23.87 |
||
|
35011
|
35011
35011-1134 STAY,REARStay,rear; |
35011-1134 |
US $70.68 |
||
|
92001
|
92001
92001-1370 BOLT,8X130Bolt,8x130; |
92001-1370 |
US $4.46 |
||
|
92001A
|
92001A
92001-1389 BOLT,8X70Bolt,8x70; |
92001-1389 |
US $5.65 |
||
|
92015
|
92015
92017-014 NUT,LOCK 6MMNut,lock 6mm; |
92017-014 |
from US $3.50 |
||
|
92015A
|
92015A
92090-006 NUT STEERING STEM LCK |
92090-006 |
from US $10.37 |
||
|
92022
|
92022
92022-024 WASHER,7X16X1.2Washer plain; |
92022-024 |
from US $2.27 |
||
|
92022A
|
92022A
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
92022A
|
92022A
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.56 |
||
|
92037
|
92037
13070-1232 GUIDE,HOSEGuide,hose; |
13070-1232 |
US $3.24 |
||
|
92048
|
92048
92047-014 CONE,STRG STM BRG,UPCone,strg stm brg,up; |
92047-014 |
US $12.23 |
||
| replacement | |||||
|
92048
|
92048
92048-0035 Race,steering Stem BeCone,strg stm brg,up; |
92048-0035 |
from US $9.38 |
||
|
92048A
|
92048A
92048-009 RACE,STRG STM BEARINGRace,strg stm bearing; |
92048-009 |
US $13.51 |
||
| replacement | |||||
|
92048A
|
92048A
92048-0038 Race,steering Stem BeRace,strg stm bearing; |
92048-0038 |
from US $10.50 |
||
|
92066
|
92066
32112009
PLUG,18X3
Plug,18x3; |
32112009 |
— | ||
|
92072
|
92072
92072-012 BAND TOOLBand tool; |
92072-012 |
from US $3.63 |
||
|
92072A
|
92072A
92072-030 BAND,SHORTBand,short; |
92072-030 |
from US $2.72 |
||
|
92072B
|
92072B
92072-1050
BAND,BATTERY
Band,battery; |
92072-1050 |
— | ||
