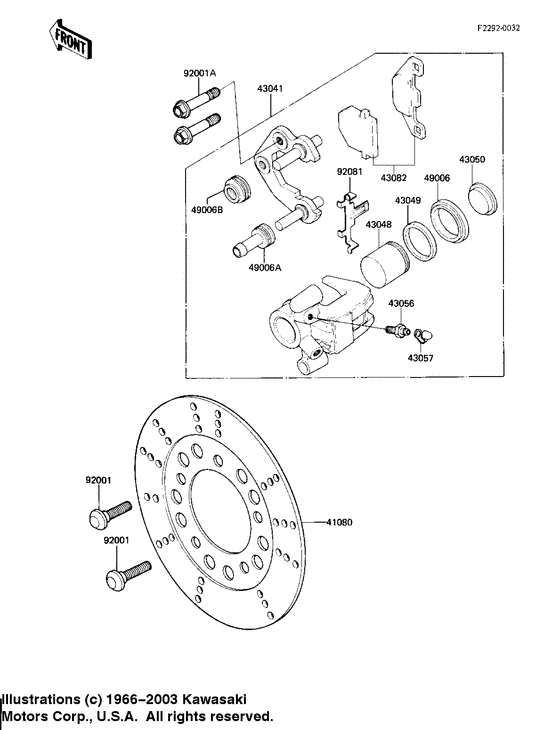

Front brake Diagram Kawasaki AR80
- Year
- 1982
- Model code
- AR80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- AR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-1140
DISC,FR,SILVER
Disc,fr,silver; |
41080-1140 |
— | ||
|
43041
|
43041
43041-1044
CALIPER-ASSY
|
43041-1044 |
— | ||
| replacement | |||||
|
43041
|
43041
43041-1421
CALIPER-ASSY
|
43041-1421 |
— | ||
|
43048
|
43048
43048-1008 PISTON-CALIPER |
43048-1008 |
US $32.32 |
||
| replacement | |||||
|
43048
|
43048
43020-1084 PISTON-COMP-BRAKE |
43020-1084 |
from US $39.34 |
||
|
43049
|
43049
43049-1016 PACKING |
43049-1016 |
US $10.10 |
||
| replacement | |||||
|
43049
|
43049
43049-1092 PACKING |
43049-1092 |
from US $6.16 |
||
|
43050
|
43050
43050-1040 PAD-BRAKE |
43050-1040 |
US $11.46 |
||
| replacement | |||||
|
43050
|
43050
43050-1169 PAD-BRAKE |
43050-1169 |
from US $11.46 |
||
|
43056
|
43056
43056-003
BLEEDER SET
Breeder; |
43056-003 |
— | ||
| replacement | |||||
|
43056
|
43056
43085-001 BLEEDER SETBreeder; |
43085-001 |
from US $14.28 |
||
|
43057
|
43057
43057-003 CAP,BREEDERCap,breeder; |
43057-003 |
from US $2.94 |
||
|
43082
|
43082
43082-1017 PAD-ASSY-BRAKE |
43082-1017 |
US $46.17 |
||
| replacement | |||||
|
43082
|
43082
43082-1108 PAD-ASSY-BRAKE |
43082-1108 |
from US $46.17 |
||
|
49006
|
49006
49006-1053 BOOT,CALIPERBoot,caliper; |
49006-1053 |
from US $19.74 |
||
|
49006A
|
49006A
49006-1054 BOOT,CALIPERBoot,caliper; |
49006-1054 |
from US $7.56 |
||
|
49006B
|
49006B
49006-1055 BOOT,CALIPERBoot,caliper; |
49006-1055 |
from US $4.34 |
||
|
92001
|
92001
92001-1951
Bolt,socket,8x30
Bolt,socket,8x30; |
92001-1951 |
— | ||
| replacement | |||||
|
92001
|
92001
92154-1865 BOLT,SOCKET,8X30Bolt,socket,8x30; |
92154-1865 |
from US $2.38 |
||
|
92001A
|
92001A
92001-1415 BOLT |
92001-1415 |
US $3.06 |
||
|
92081
|
92081
92081-1341 SPRING |
92081-1341 |
from US $7.56 |
||
