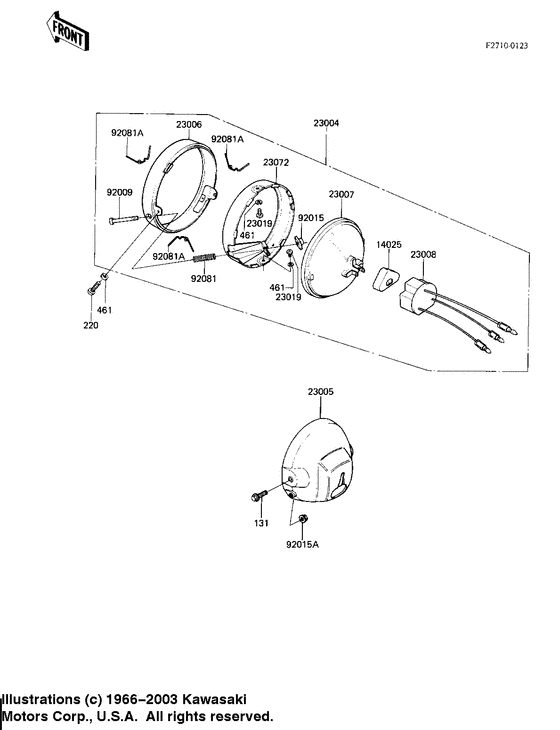

Headlight Diagram Kawasaki AR80
- Year
- 1982
- Model code
- AR80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- AR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
131
|
131
131B0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
131B0820 |
US $0.56 |
||
| replacement | |||||
|
131
|
131
130BA0820 BOLT-FLANGED,8X20Bolt-flanged,8x20; |
130BA0820 |
from US $1.20 |
||
|
220
|
220
220B0512
SCREW-PAN-CROS
Screw pan head 5x12; |
220B0512 |
— | ||
| replacement | |||||
|
220
|
220
220AA0512 SCREW-PAN-CROSScrew pan head 5x12; |
220AA0512 |
from US $0.63 |
||
|
461
|
461
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.42 |
||
|
14025
|
14025
23081001
COVER,HD LAMP SOCKET
Cover,hd lamp socket; |
23081001 |
— | ||
|
23004
|
23004
23004-1078 LAMP-HEAD |
23004-1078 |
US $109.66 |
||
|
23005
|
23005
23005-1017-6Z
BODY-COMP-HEAD LAMP,B
Body-comp-head lamp,b; |
23005-1017-6Z |
— | ||
|
23006
|
23006
23006-1018 RIM-LAMP,HEADRim-lamp,head; |
23006-1018 |
US $48.34 |
||
|
23007
|
23007
23007-055
SEALED BEAM UNIT
Sealed beam unit; |
23007-055 |
— | ||
|
23008
|
23008
23008-1125 SOCKET-ASSY |
23008-1125 |
US $14.46 |
||
|
23019
|
23019
23019031 SCREW,LENS FITTINGScrew,lens fitting; |
23019031 |
from US $2.45 |
||
|
23072
|
23072
23072-005 RETAINER,HEAD LAMPRetainer,head lamp; |
23072-005 |
US $39.25 |
||
|
92009
|
92009
23019-027
SCREW,FOCUS ADJUST
Screw,focus adjust; |
23019-027 |
— | ||
|
92015
|
92015
23020012 NUT ADJUSTNut adjust; |
23020012 |
from US $2.75 |
||
|
92015A
|
92015A
92015-1014 NUT,8M/MNut,8m/m; |
92015-1014 |
from US $0.84 |
||
|
92081
|
92081
23014012
SPRING,FOCUS ADJUST
Spring,focus adjust; |
23014012 |
— | ||
|
92081A
|
92081A
92081-1144 SPRING,HEAD LAMP LENSSpring,head lamp lens; |
92081-1144 |
US $3.57 |
||
