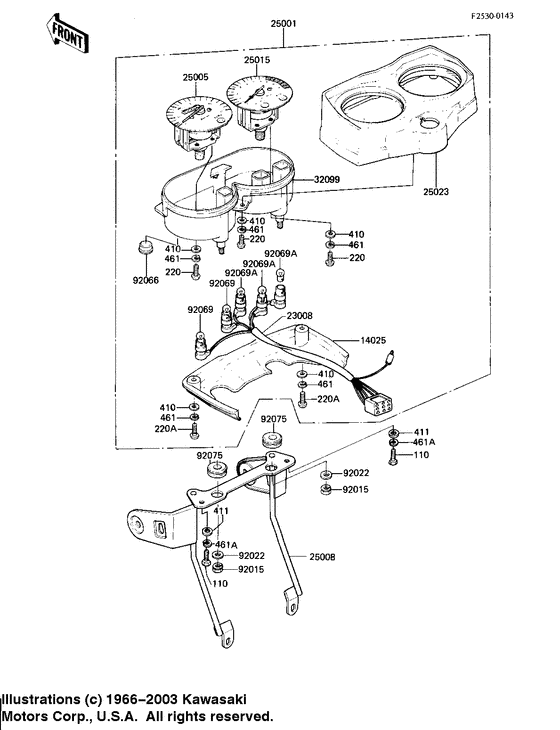

Meters Diagram Kawasaki AR80
- Year
- 1982
- Model code
- AR80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- AR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
112G0616
BOLT-UPSET,6X16
Bolt-upset,6x16; |
112G0616 |
— | ||
| replacement | |||||
|
110
|
110
112BA0616 BOLT-UPSET,6X16Bolt-upset,6x16; |
112BA0616 |
from US $0.86 |
||
|
220
|
220
220B0410 SCREW-PAN CROS,4X10Screw pan head 4x10; |
220B0410 |
US $0.95 |
||
| replacement | |||||
|
220
|
220
220AA0410 SCREW-PAN CROS,4X10Screw pan head 4x10; |
220AA0410 |
from US $0.79 |
||
|
220A
|
220A
220B0412
SCREW-PAN-CRSOSS,4X12
Screw-pan-crsoss,4x12; |
220B0412 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0412 SCREW-PAN-CROSSScrew-pan-crsoss,4x12; |
220AA0412 |
from US $0.58 |
||
|
410
|
410
410B0400
W-PLAIN-S
Washer plain 4mm; |
410B0400 |
— | ||
| replacement | |||||
|
410
|
410
410AA0400 W-PLAIN-SWasher plain 4mm; |
410AA0400 |
from US $0.78 |
||
|
411
|
411
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
411
|
411
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
461
|
461
461F0400
WASHER-SPRING
Washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
461
|
461
461DA0400 WASHER-SPRINGWasher spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
461A
|
461A
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461A
|
461A
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
14025
|
14025
14025-1376 COVER,METER,LWRCover,meter,lwr; |
14025-1376 |
from US $15.07 |
||
|
23008
|
23008
23008-1162 SOCKET-ASSY,METERSocket-assy,meter; |
23008-1162 |
US $48.19 |
||
|
25001
|
25001
25001-1350 METER-ASSY,MPHMeter-assy,mph; |
25001-1350 |
US $255.37 |
||
|
25005
|
25005
25005-1187 SPEEDOMETER,MPHSpeedometer,mph; |
25005-1187 |
US $192.51 |
||
|
25008
|
25008
25008-1050
BRACKET-METER
|
25008-1050 |
— | ||
|
25015
|
25015
25015-1091 TACHOMETER |
25015-1091 |
from US $160.96 |
||
|
25023
|
25023
25023-1029 COVER-METER CASE |
25023-1029 |
US $121.86 |
||
|
32099
|
32099
32099-1021 CASE,METERCase,meter; |
32099-1021 |
from US $31.30 |
||
|
92015
|
92015
92017-014 NUT,LOCK 6MMNut,lock 6mm; |
92017-014 |
from US $4.95 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
92069
|
92069
92069-024 BULB 6V 1.5WBulb 6v 1.5w; |
92069-024 |
from US $2.95 |
||
| replacement | |||||
|
92069
|
92069
92069-053 BULB-6V 3WBulb 6v 1.5w; |
92069-053 |
US $5.44 |
||
|
92069A
|
92069A
92069-053 BULB-6V 3WBulb-6v 3w; |
92069-053 |
US $5.44 |
||
|
92075
|
92075
92075-1337 DAMPER |
92075-1337 |
US $2.41 |
||
