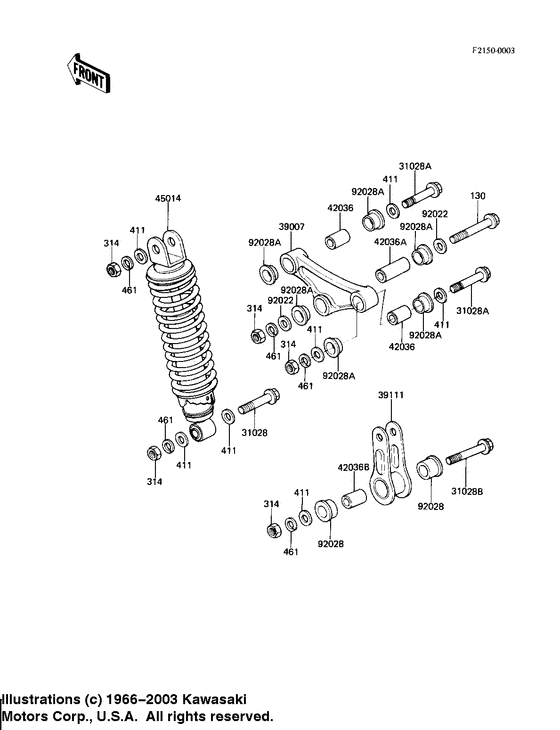

Rear suspension/shock absorber Diagram Kawasaki AR80
- Year
- 1982
- Model code
- AR80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- AR80
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G1065 BOLT-FLANGED,10X65Bolt-flanged,10x65; |
130G1065 |
from US $2.22 |
||
| replacement | |||||
|
130
|
130
130H1065 BOLT-FLANGED,10X65Bolt-flanged,10x65; |
130H1065 |
US $6.21 |
||
|
314
|
314
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
314
|
314
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
411
|
411
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
411
|
411
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
461
|
461
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461
|
461
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
31028
|
31028
31028-1002 SHAFT-SHOCKABSORBER,1Shaft-shockabsorber,1; |
31028-1002 |
US $6.02 |
||
|
31028A
|
31028A
31028-1003 SHAFT-SHOCKABSORBER,1Shaft-shockabsorber,1; |
31028-1003 |
from US $4 |
||
|
31028B
|
31028B
31028-1004 SHAFT-SHOCKABSORBER,1Shaft-shockabsorber,1; |
31028-1004 |
from US $4 |
||
|
39007
|
39007
39007-1005 ARM-SUSP,UNITRAKArm-susp,unitrak; |
39007-1005 |
from US $138.82 |
||
|
39111
|
39111
39111-1008 ROD-TIE,UNITRAKRod-tie,unitrak; |
39111-1008 |
from US $29.03 |
||
|
42036
|
42036
42036-1041 SLEEVE,10.1X17X26Sleeve,10.1x17x26; |
42036-1041 |
from US $14.38 |
||
|
42036A
|
42036A
42036-1044 SLEEVE,11X17X46Sleeve,11x17x46; |
42036-1044 |
from US $21.38 |
||
|
42036B
|
42036B
42036-1047 SLEEVE,11X17X35Sleeve,11x17x35; |
42036-1047 |
from US $14.89 |
||
|
45014
|
45014
45014-1085 SHOCK ABSBR RR |
45014-1085 |
from US $232.31 |
||
|
92022
|
92022
92022-176 WASHER-PLN,10X22X3.2Washer-pln,10x22x3.2; |
92022-176 |
from US $3.33 |
||
|
92028
|
92028
92028-1129 BUSHING,RR SHOCKABSORBushing,rr shockabsor; |
92028-1129 |
from US $12.99 |
||
|
92028A
|
92028A
92028-1130 BUSHING,SUSPENSIONBushing,suspension; |
92028-1130 |
from US $5.07 |
||
