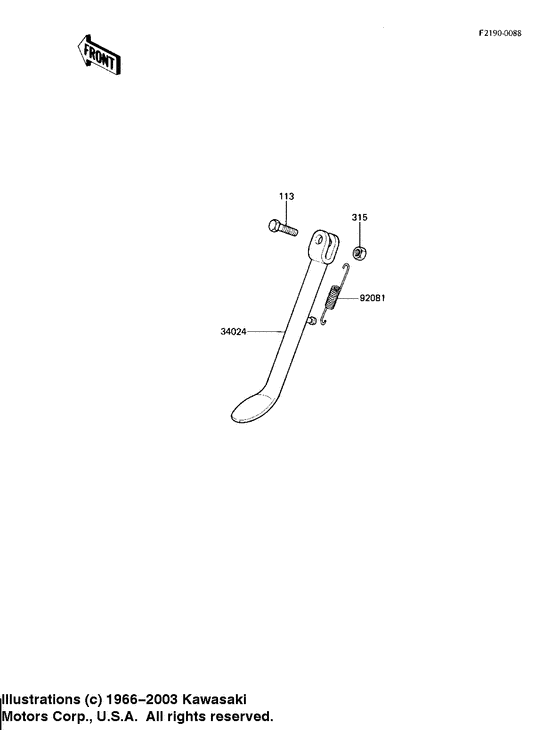

Stand Diagram Kawasaki AR80
- Year
- 1982
- Model code
- AR80-A1
- Sales region
- USA
- Engine Capacity
- 80
- Model
- AR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
113
|
113
112G1030
BOLT-UPSET,10X30
Bolt-upset,10x30; |
112G1030 |
— | ||
|
315
|
315
315B1000 NUT 10MMNut 10mm; |
315B1000 |
US $1.11 |
||
| replacement | |||||
|
315
|
315
315AA1000 NUT-HEX-FINENut 10mm; |
315AA1000 |
from US $0.92 |
||
|
34024
|
34024
34024-1099 STAND-SIDE |
34024-1099 |
US $57.15 |
||
|
92081
|
92081
34025-005 SPRING,SIDE STANDSpring,side stand; |
34025-005 |
US $5.54 |
||
| replacement | |||||
|
92081
|
92081
92145-0106 SPRING,STANDSpring,side stand; |
92145-0106 |
from US $3.96 |
||
