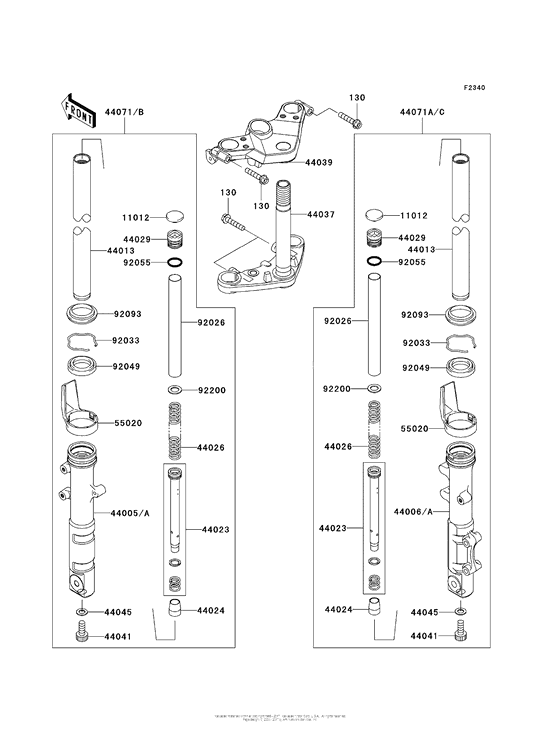

Front Fork Diagram Kawasaki AX125 Fury 125R
- Year
- 2010
- Model code
- AX125BAF
- Sales region
- USA
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0840 BOLT-FLANGED,8X40 |
130BA0840 |
from US $1.27 |
||
|
11012
|
11012
11012-1127 CAP,FORK |
11012-1127 |
US $6.68 |
||
|
44005A
|
44005A
44005-0064-21A PIPE-LEFT FORK OUTER, |
44005-0064-21A |
US $229.41 |
||
|
44006A
|
44006A
44006-0060-21A PIPE-RIGHT FORK OUTER |
44006-0060-21A |
US $229.41 |
||
|
44013
|
44013
44013-0118 PIPE-FORK INNER |
44013-0118 |
US $389.83 |
||
|
44023
|
44023
44023-0068 CYLINDER-SET-FORK |
44023-0068 |
US $38.66 |
||
|
44024
|
44024
44024-0005 CAP-OIL-LOCK |
44024-0005 |
US $16.74 |
||
|
44026
|
44026
44026-0127 SPRING-FRONT FORK |
44026-0127 |
US $22.93 |
||
|
44029
|
44029
44029-0014 SEAT-FORK SPRING |
44029-0014 |
US $30.94 |
||
|
44037
|
44037
44037-0076-21 HOLDER-FORK UNDER,F.B |
44037-0076-21 |
US $374.24 |
||
|
44039
|
44039
44039-0067-21A HOLDER-FORK UPPER,M.M |
44039-0067-21A |
US $265.61 |
||
|
44041
|
44041
44041040 BOLT-FORK CYLINDER |
44041040 |
from US $4.44 |
||
|
44045
|
44045
44045057 GASKET,FORK CYLINDER |
44045057 |
from US $3.33 |
||
|
44071B
|
44071B
44071-0478-21A DAMPER-ASSY,FORK,LH,M |
44071-0478-21A |
US $541.42 |
||
|
44071C
|
44071C
44071-0479-21A DAMPER-ASSY,FORK,RH,M |
44071-0479-21A |
US $541.42 |
||
|
55020
|
55020
55020-0450 GUARD,FORK |
55020-0450 |
US $10.28 |
||
|
92026
|
92026
92026-0135 SPACER |
92026-0135 |
US $3.89 |
||
|
92033
|
92033
92033-1038 RING-SNAP |
92033-1038 |
from US $2.85 |
||
|
92049
|
92049
92049-0003 SEAL-OIL,FORK OUTER T |
92049-0003 |
from US $11.88 |
||
|
92055
|
92055
92055-0166 RING-O |
92055-0166 |
US $2.30 |
||
|
92093
|
92093
92093-0001 SEAL,FORK OUTER TUBE |
92093-0001 |
from US $12.04 |
||
|
92200
|
92200
92200-0465 WASHER |
92200-0465 |
US $2.05 |
