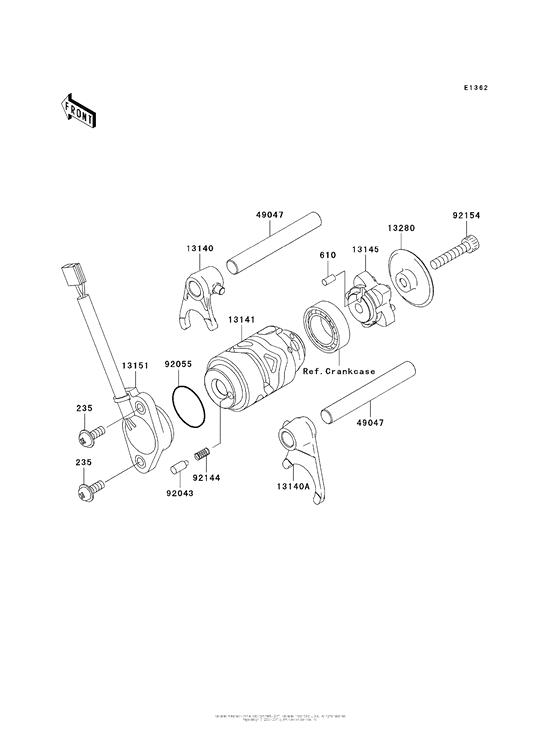

Gear Change Drum/shift Fork(S) Diagram Kawasaki AX125 Fury 125R
- Year
- 2010
- Model code
- AX125BAF
- Sales region
- USA
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
235
|
235
235AA0514 SCREW-PAN-WP-CROS |
235AA0514 |
from US $0.95 |
||
|
610
|
610
610A0408 PIN DOWEL 4X8 |
610A0408 |
from US $1.07 |
||
|
13140
|
13140
13140-0036 FORK-SHIFT |
13140-0036 |
from US $33.06 |
||
|
13140A
|
13140A
13140-0037 FORK-SHIFT |
13140-0037 |
from US $58.04 |
||
|
13141
|
13141
13141-1222 DRUM-CHANGE |
13141-1222 |
from US $44.01 |
||
|
13145
|
13145
13145-1093 CAM-CHANGE DRUM |
13145-1093 |
from US $13.84 |
||
|
13151
|
13151
13151-0048 Switch-Comp,Neutral |
13151-0048 |
US $60.79 |
||
|
13280
|
13280
13280-1228 HOLDER |
13280-1228 |
from US $4.59 |
||
|
49047
|
49047
49047-1058 ROD-SHIFT |
49047-1058 |
from US $8.55 |
||
|
92043
|
92043
92043-0736 PIN |
92043-0736 |
from US $3.64 |
||
|
92055
|
92055
92055-1619 RING-O,27.7X2.4 |
92055-1619 |
from US $1.90 |
||
|
92144
|
92144
92144-1245 SPRING |
92144-1245 |
from US $3.54 |
||
|
92154
|
92154
92154-0388 BOLT,SOCKET,6X30 |
92154-0388 |
from US $1.43 |
