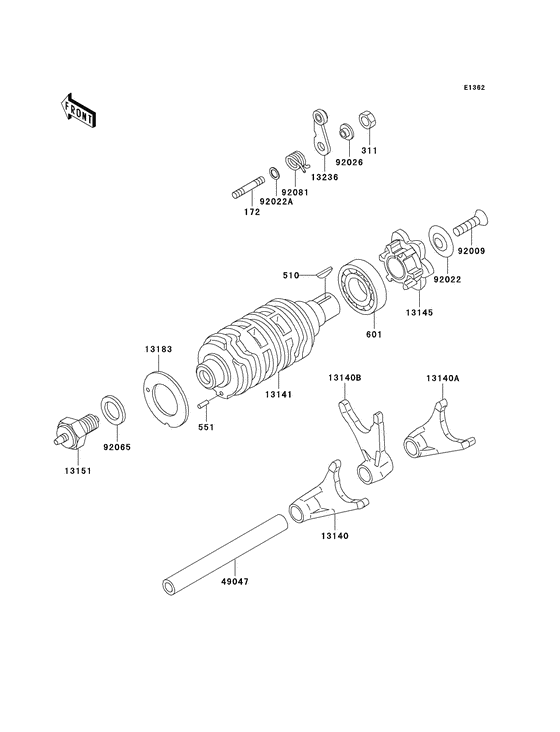

Gear change drum/shift fork Diagram Kawasaki BN125 Eliminator
- Year
- 2003
- Model code
- BN125-A6
- Sales region
- USA
- Engine Capacity
- 125
- Model
- BN125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
172
|
172
172G0612
BOLT-STUD
Bolt-stud,6x12; |
172G0612 |
— | ||
| replacement | |||||
|
172
|
172
172BA0612 BOLT-STUDBolt-stud,6x12; |
172BA0612 |
from US $1.11 |
||
|
311
|
311
311G0600
NUT-HEX
Nut-hex,6mm; |
311G0600 |
— | ||
| replacement | |||||
|
311
|
311
311BA0600 NUT-HEXNut-hex,6mm; |
311BA0600 |
from US $0.95 |
||
|
510
|
510
510A3200 WOODRUFF KEY |
510A3200 |
from US $3.40 |
||
|
551
|
551
551A0306 PIN,DOWEL,3X6Pin-dowel,3x6; |
551A0306 |
from US $1.80 |
||
|
601
|
601
601B6003 BEARING-BALL |
601B6003 |
from US $14.41 |
||
|
13140
|
13140
13140-1247 FORK-SHIFT,2ND-4THFork-shift,2nd-4th; |
13140-1247 |
from US $62.68 |
||
|
13140A
|
13140A
13140-1264 FORK-SHIFT,LOW-3RDFork-shift,low-3rd; |
13140-1264 |
from US $62.68 |
||
|
13140B
|
13140B
13140-1265 FORK-SHIFT,5TH-TOPFork-shift,5th-top; |
13140-1265 |
from US $62.68 |
||
|
13141
|
13141
13141-1210 DRUM-CHANGE |
13141-1210 |
from US $103.90 |
||
|
13145
|
13145
13145-1084 CAM-CHANGE DRUM |
13145-1084 |
from US $29.47 |
||
|
13151
|
13151
13151-1080 Switch-Comp,NeutralSwitch-comp,neutral; |
13151-1080 |
from US $10.73 |
||
|
13183
|
13183
13183-1066 PLATEPlate,change; |
13183-1066 |
from US $11.72 |
||
|
13236
|
13236
13236-1192 LEVER-COMP,DRUM POSITLever-comp,drum position; |
13236-1192 |
from US $7.44 |
||
|
49047
|
49047
49047-1068 ROD-SHIFT |
49047-1068 |
from US $13.62 |
||
|
92009
|
92009
92009-1360 SCREW,6X16Screw,6x16; |
92009-1360 |
from US $2.69 |
||
|
92022
|
92022
92022-1792 WASHER |
92022-1792 |
from US $3.33 |
||
|
92022A
|
92022A
92022-1827 WASHER,6X12.8X1.2Washer,6x12.8x1.2; |
92022-1827 |
from US $2.85 |
||
|
92026
|
92026
92026-1217 SPACER |
92026-1217 |
from US $3.33 |
||
|
92065
|
92065
92065-058 GASKETGasket,10.5x16x1; |
92065-058 |
from US $3.37 |
||
|
92081
|
92081
92081-1993 SPRING,POSITION LEVERSpring,position lever; |
92081-1993 |
from US $3.96 |
||
