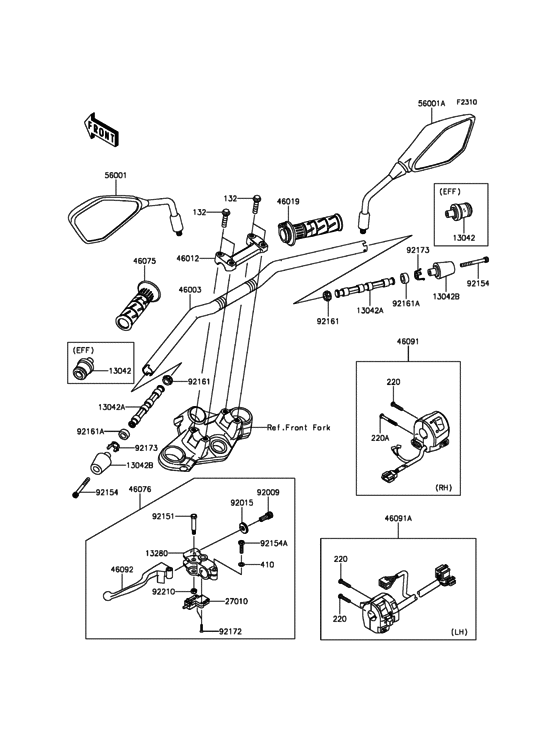

Handlebar Diagram Kawasaki BR250 Z250SL
- Year
- 2016
- Model code
- BR250EGF
- Sales region
- Europe (General)
- Model
- Z250SL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0835 BOLT,8X35 |
132BA0835 |
from US $3.01 |
||
|
220
|
220
220AB0525 SCREW-PAN-CROS |
220AB0525 |
from US $0.95 |
||
|
220A
|
220A
220AB0540 SCREW-PAN-CROSS,5X40 |
220AB0540 |
from US $0.95 |
||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6M |
410AB0600 |
from US $0.79 |
||
|
13042A
|
13042A
13042-0044 WEIGHT,HANDLE,INSIDE |
13042-0044 |
from US $27.53 |
||
| replacement | |||||
|
13042A
|
13042A
13042-0733 WEIGHT,HANDLE,INSIDE |
13042-0733 |
from US $25.58 |
||
|
13042B
|
13042B
13042-0725 ウエイト，ハンドル，エンド |
13042-0725 |
from US $16.95 |
||
|
13280
|
13280
13280-0105 HOLDER,CLUTCH LEVER |
13280-0105 |
from US $24.09 |
||
|
27010
|
27010
27010-0729 SWITCH,CLUTCHクラツチ |
27010-0729 |
from US $21.07 |
||
|
46003
|
46003
46003-0645 HANDLE |
46003-0645 |
from US $78.39 |
||
|
46012
|
46012
46012-0308-21 HOLDER-HANDLE,TOP,F.B |
46012-0308-21 |
from US $31.42 |
||
|
46019
|
46019
46019-0043 GRIP-ASSY,THROTTLE |
46019-0043 |
from US $13.31 |
||
|
46075
|
46075
46075-0007 GRIP,LH |
46075-0007 |
from US $4.44 |
||
|
46076
|
46076
46076-0090 LEVER-ASSY-GRIP,CLUTCクラツチ; グリツプ |
46076-0090 |
from US $73.90 |
||
|
46091
|
46091
46091-0307 HOUSING-ASSY-CONTROL |
46091-0307 |
from US $102.03 |
||
|
46091A
|
46091A
46091-0308 HOUSING-ASSY-CONTROL |
46091-0308 |
from US $142.87 |
||
|
46092
|
46092
46092-0050 LEVER-GRIP,CLUTCH |
46092-0050 |
from US $8.21 |
||
|
56001
|
56001
56001-0243 MIRROR-ASSY,LHLH |
56001-0243 |
from US $47.12 |
||
|
56001A
|
56001A
56001-0244 MIRROR-ASSY,RHRH |
56001-0244 |
from US $47.12 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8 |
92009-1134 |
from US $9.19 |
||
|
92015
|
92015
92015-1197 NUT,CABLE ADJUST LOCK |
92015-1197 |
from US $6.34 |
||
|
92151
|
92151
92151-1986 BOLT,CLUTCH LEVER |
92151-1986 |
from US $5.23 |
||
|
92154
|
92154
92154-1299 BOLT,SOCKET,6X55 |
92154-1299 |
from US $1.74 |
||
|
92154A
|
92154A
92154-1422 BOLT,UPSET,6X22 |
92154-1422 |
from US $0.95 |
||
|
92161
|
92161
92161-1600 DAMPER,10X20X10,IN |
92161-1600 |
from US $0.95 |
||
|
92161A
|
92161A
92161-1741 DAMPER,10X20X10,OUT |
92161-1741 |
from US $3.96 |
||
|
92172
|
92172
92172-0788 SCREW,3X163X16 |
92172-0788 |
from US $0.48 |
||
| replacement | |||||
|
92172
|
92172
92172-0397 SCREW,3X16 |
92172-0397 |
from US $0.79 |
||
|
92173
|
92173
92173-1386 CLAMP,WEIGHT |
92173-1386 |
from US $1.90 |
||
|
92210
|
92210
92210-0006 NUT,LOCK,6MM |
92210-0006 |
from US $1.27 |
||
