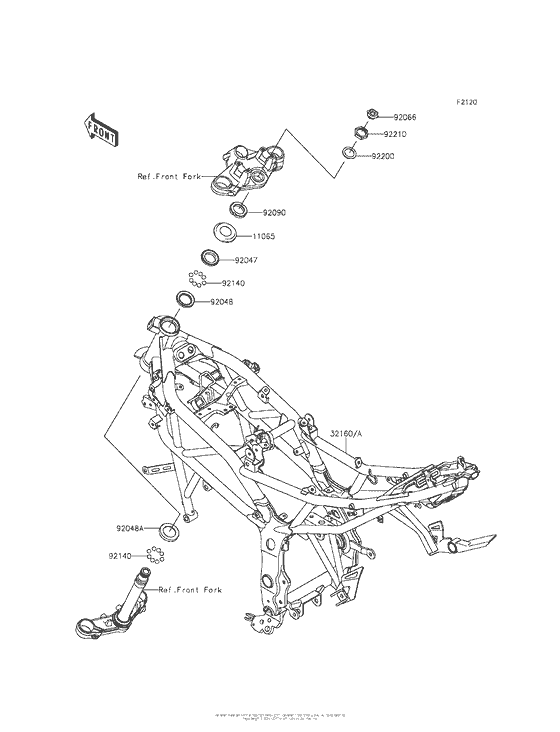

Frame Diagram Kawasaki BR250 Z250SL ABS
- Year
- 2014
- Model code
- BR250FEF
- Sales region
- USA
- Model
- Z250SL ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11065
|
11065
11065-0832 CAP,STEERING STEM |
11065-0832 |
from US $3.96 |
||
|
32160
|
32160
32160-0701-26M FRAME-COMP,F.M.GRAY |
32160-0701-26M |
from US $1,586.30 |
||
|
32160A
|
32160A
32160-0701-34R FRAME-COMP,F.RED |
32160-0701-34R |
from US $1,903.56 |
||
|
92047
|
92047
92047-011 CONE,STRNG STM BRNG |
92047-011 |
US $12.36 |
||
| replacement | |||||
|
92047
|
92047
92048-0032 Race,steering Stem Be |
92048-0032 |
from US $12.36 |
||
|
92048
|
92048
92048-006
RACE STRNG STEM BERNG
|
92048-006 |
— | ||
| replacement | |||||
|
92048
|
92048
92048-0036 Race,steering Stem Be |
92048-0036 |
from US $9.35 |
||
|
92048A
|
92048A
92048-008 RACE,STRNG STM BRNG |
92048-008 |
US $13.62 |
||
| replacement | |||||
|
92048A
|
92048A
92048-0037 Race,steering Stem Be |
92048-0037 |
from US $13.62 |
||
|
92066
|
92066
92066-0785 PLUG |
92066-0785 |
from US $2.69 |
||
|
92090
|
92090
92090-007 NUT, STEERING STEM LOCK |
92090-007 |
from US $7.13 |
||
|
92140
|
92140
600A0800 BALL,6.35MM |
600A0800 |
from US $0.82 |
||
|
92200
|
92200
92200-0893 WASHER,25.5X36X1.6 |
92200-0893 |
from US $6.02 |
||
|
92210
|
92210
92210-0858 NUT,25MM |
92210-0858 |
from US $11.88 |
||
