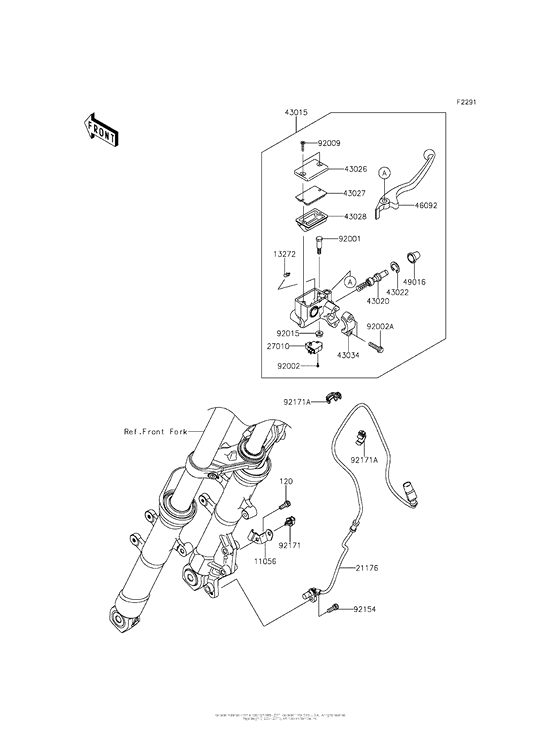

Front Master Cylinder Diagram Kawasaki BR250 Z250SL ABS
- Year
- 2014
- Model code
- BR250FEF
- Sales region
- USA
- Model
- Z250SL ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0616 BOLT-SOCKET,6X16 |
120CA0616 |
from US $1.11 |
||
|
11056
|
11056
11056-4005 BRACKET |
11056-4005 |
from US $2.69 |
||
|
13272
|
13272
13272-0573 PLATE |
13272-0573 |
from US $3.96 |
||
|
21176
|
21176
21176-0760 SENSOR,ABS,FR |
21176-0760 |
from US $92.30 |
||
|
27010
|
27010
27010-0025 SWITCH,BRAKE |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-0594 CYLINDER-ASSY-MASTER, |
43015-0594 |
US $275.79 |
||
| replacements | |||||
|
43015
|
43015
43015-0633 CYLINDER-ASSY-MASTER, |
43015-0633 |
from US $154.09 |
||
|
43015
|
43015
43015-0692 CYLINDER-ASSY-MASTER, |
43015-0692 |
from US $153.19 |
||
|
43020
|
43020
43020-1098 PISTON-COMP-BRAKE |
43020-1098 |
from US $34.41 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPER |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1082 CAP-BRAKE |
43026-1082 |
from US $15.52 |
||
|
43027
|
43027
43027-1057 PLATE-DIAPHRAGM |
43027-1057 |
from US $3.48 |
||
|
43028
|
43028
43028-1061 DIAPHRAGM |
43028-1061 |
from US $11.72 |
||
|
43034
|
43034
43034-1016 HOLDER-BRAKE,MASTER C |
43034-1016 |
from US $14.10 |
||
|
46092
|
46092
46092-0047 LEVER-GRIP,FRONT BRAK |
46092-0047 |
US $17.11 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDER |
49016-1044 |
from US $10.61 |
||
|
92001
|
92001
92001-1728 BOLT,FRONT BRAKE LEVER |
92001-1728 |
from US $10.45 |
||
|
92002
|
92002
92002-1323 Bolt |
92002-1323 |
from US $2.53 |
||
|
92002A
|
92002A
92002-1894 Bolt |
92002-1894 |
from US $3.17 |
||
|
92009
|
92009
92009-1458 SCREW,4MM |
92009-1458 |
from US $3.02 |
||
|
92015
|
92015
92015-1233 NUT,FLANGED,6MM |
92015-1233 |
from US $3.90 |
||
|
92154
|
92154
92154-1300 BOLT,SOCKET,6X16 |
92154-1300 |
from US $1.11 |
||
|
92171
|
92171
92171-0640 Clamp |
92171-0640 |
from US $2.32 |
||
|
92171A
|
92171A
92171-1819 CLAMP,BRAKE HOSE |
92171-1819 |
from US $2.85 |
||
