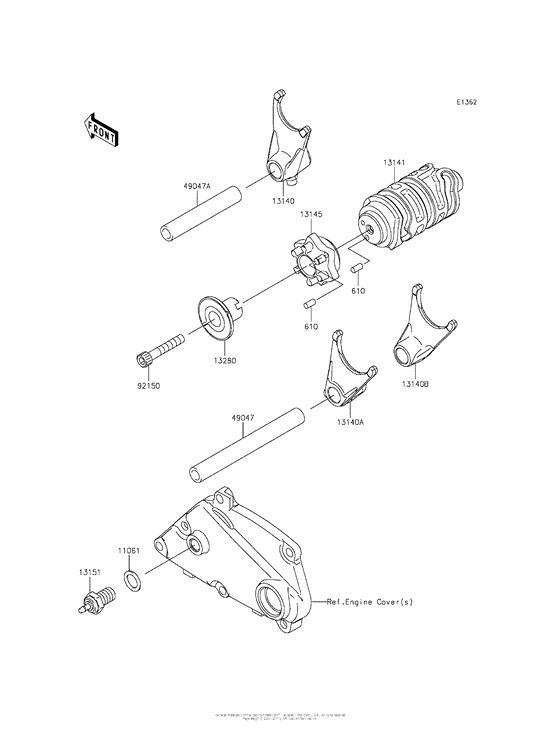

Gear Change Drum/shift Fork(S) Diagram Kawasaki BR250 Z250SL ABS
- Year
- 2014
- Model code
- BR250FEF
- Sales region
- USA
- Model
- Z250SL ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
610
|
610
610A0408 PIN DOWEL 4X8 |
610A0408 |
from US $1.07 |
||
|
11061
|
11061
11061-0373 GASKET,10.5X16X1 |
11061-0373 |
from US $2.66 |
||
|
13140
|
13140
13140-0632 FORK-SHIFT,5TH&6TH |
13140-0632 |
from US $58.04 |
||
|
13140A
|
13140A
13140-0633 FORK-SHIFT,2ND&4TH |
13140-0633 |
from US $58.04 |
||
|
13140B
|
13140B
13140-0634 FORK-SHIFT,1ST&3RD |
13140-0634 |
from US $58.04 |
||
|
13141
|
13141
13141-0578 DRUM-CHANGE |
13141-0578 |
from US $83.93 |
||
|
13145
|
13145
13145-0559 CAM-CHANGE DRUM |
13145-0559 |
from US $28.12 |
||
|
13151
|
13151
13151-1080 Switch-Comp,Neutral |
13151-1080 |
from US $10.68 |
||
|
13280
|
13280
13280-0769 HOLDER,CHANGE DRUM |
13280-0769 |
from US $21.84 |
||
|
49047
|
49047
49047-1056 ROD-SHIFT,L=106.7 |
49047-1056 |
from US $16.32 |
||
|
49047A
|
49047A
49047-1057 ROD-SHIFT,L=71.7 |
49047-1057 |
from US $12.36 |
||
|
92150
|
92150
92150-1484 BOLT,SOCKET,6X35 |
92150-1484 |
from US $3.48 |
