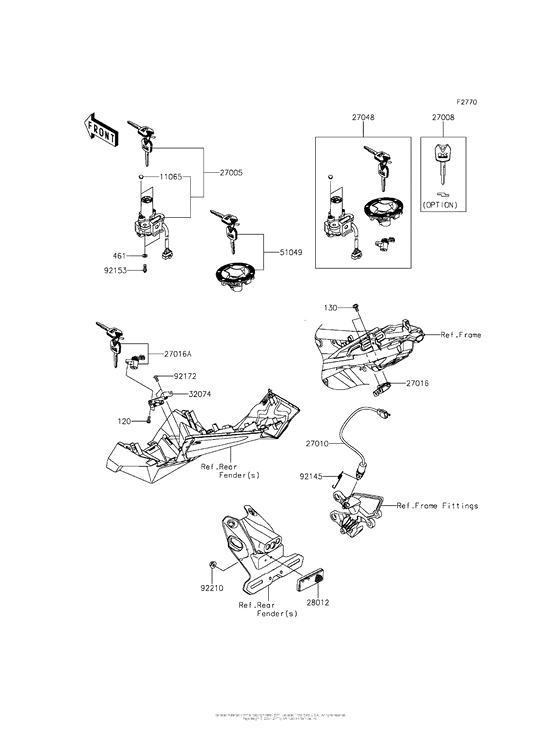

Ignition Switch Diagram Kawasaki BR250 Z250SL ABS
- Year
- 2014
- Model code
- BR250FEF
- Sales region
- USA
- Model
- Z250SL ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0512 BOLT-SOCKET,5X12 |
120CA0512 |
from US $0.63 |
||
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.79 |
||
|
461
|
461
461DA0600 WASHER-SPRING,6MM |
461DA0600 |
from US $0.55 |
||
|
11065
|
11065
11065-0708 CAP,IGNITION SWITCH |
11065-0708 |
from US $2.22 |
||
|
27005
|
27005
27005-5154 SWITCH-ASSY-IGNITION |
27005-5154 |
US $159.72 |
||
| replacement | |||||
|
27005
|
27005
27005-5157 SWITCH-ASSY-IGNITION |
27005-5157 |
from US $165.53 |
||
|
27008
|
27008
27008-0053 KEY-LOCK,BLANK |
27008-0053 |
from US $12.83 |
||
|
27010
|
27010
27010-0758 SWITCH,RR BRAKE |
27010-0758 |
from US $28.87 |
||
|
27016
|
27016
27016-0008 LOCK-ASSY,SEAT STRIKE |
27016-0008 |
from US $10.30 |
||
|
27016A
|
27016A
27016-5353 LOCK-ASSY,SEAT |
27016-5353 |
from US $76.89 |
||
|
27048
|
27048
27048-5031
Switch-Assy
|
27048-5031 |
— | ||
| replacement | |||||
|
27048
|
27048
27048-5069 SWITCH-ASSY |
27048-5069 |
from US $304.92 |
||
|
28012
|
28012
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
32074
|
32074
32074-0019 BRACKET-LOCK |
32074-0019 |
from US $1.74 |
||
|
51049
|
51049
51049-5009 CAP-TANK,FUEL |
51049-5009 |
from US $132.70 |
||
|
92145
|
92145
92145-0989 SPRING |
92145-0989 |
from US $1.90 |
||
|
92153
|
92153
92153-0967 BOLT,TORX,6X16 |
92153-0967 |
from US $1.11 |
||
|
92172
|
92172
92172-0857 SCREW,5X12 |
92172-0857 |
from US $0.32 |
||
|
92210
|
92210
92210-0007 NUT,FLANGED,5MM |
92210-0007 |
from US $1.61 |
||
