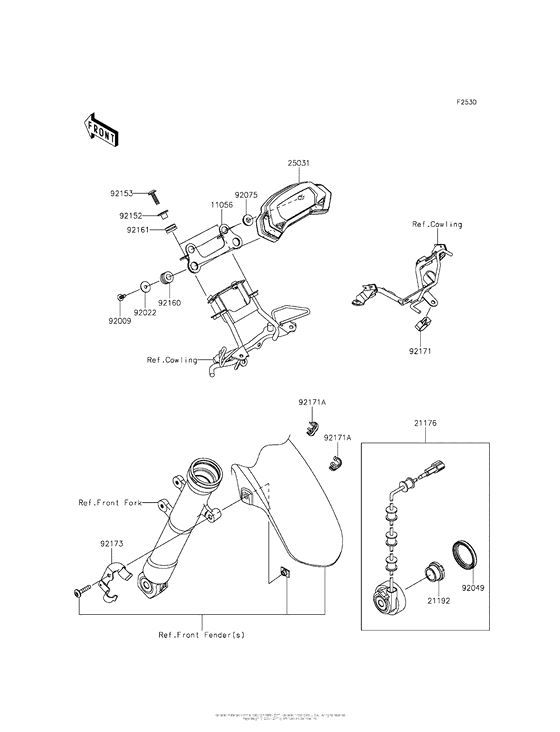

Meter(S) Diagram Kawasaki BR250 Z250SL ABS
- Year
- 2014
- Model code
- BR250FEF
- Sales region
- USA
- Model
- Z250SL ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11056
|
11056
11056-4253 BRACKET,METER |
11056-4253 |
from US $5.39 |
||
|
21176
|
21176
21176-0759 SENSOR,SPEED |
21176-0759 |
from US $162.62 |
||
|
21192
|
21192
21192-0004 MAGNET,SPEED SENSOR |
21192-0004 |
from US $22.44 |
||
|
25031
|
25031
25031-0611 METER-ASSY,COMBINATIO |
25031-0611 |
from US $513.22 |
||
|
92009
|
92009
92009-1197 SCREW |
92009-1197 |
from US $2.53 |
||
|
92022
|
92022
92022-1405 WASHER,5.5X20X1.2 |
92022-1405 |
from US $2.69 |
||
|
92049
|
92049
92049-1172 SEAL-OIL,METER GEAR C |
92049-1172 |
from US $11.56 |
||
|
92075
|
92075
92075-1469 DAMPER,RADIATOR GUARD |
92075-1469 |
from US $3.64 |
||
|
92152
|
92152
92152-1884 COLLAR,6.8X10X10.8 |
92152-1884 |
from US $3.48 |
||
|
92153
|
92153
92153-0574 BOLT,SOCKET,6X22 |
92153-0574 |
from US $1.11 |
||
|
92160
|
92160
92160-1167 DAMPER |
92160-1167 |
from US $3.01 |
||
|
92161
|
92161
92161-1664 DAMPER,10X20X8.8 |
92161-1664 |
from US $1.90 |
||
|
92171
|
92171
92171-0316 CLAMP,BRAKE HOSE |
92171-0316 |
from US $2.69 |
||
|
92171A
|
92171A
92171-1819 CLAMP,BRAKE HOSE |
92171-1819 |
from US $2.85 |
||
|
92173
|
92173
92173-1119 CLAMP,FR FENDER |
92173-1119 |
from US $2.85 |
