	Description	OEM Part #	Price
120	120 120CA0610 BOLT-SOCKET,6X10	120CA0610	from US $1.07
132	132 132BA0630 BOLT-FLANGED-SMALL	132BA0630	from US $1.27
132A	132A 132BB0616 BOLT-FLANGED-SMALL,6X	132BB0616	from US $1.11
132B	132B 132BB0618 BOLT-FLANGED-SMALL	132BB0618	from US $1.11
132C	132C 132BB0620 BOLT,6X20	132BB0620	from US $2.38
132D	132D 132BB0640 BOLT,6X40	132BB0640	from US $3.01
132E	132E 132BC0620 BOLT-FLANGED-SMALL,6X	132BC0620	from US $0.63
132F	132F 132BC0630 BOLT-FLANGED-SMALL,6X	132BC0630	from US $1.25
610	610 610A0408 PIN DOWEL 4X8	610A0408	from US $1.07
11061	11061 11061-0418 GASKET,8.2X14X1.0	11061-0418	from US $3.17
11061A	11061A 11061-0891 GASKET,GENERATOR COVE	11061-0891	from US $14.57
	replacement
11061A	11061A 11061-1476 GASKET,GENERATOR COVER	11061-1476	from US $19.66
11061B	11061B 11061-0892 GASKET,CAP	11061-0892	from US $7.13
11061C	11061C 11061-0897 GASKET,TRANSMISSION C	11061-0897	from US $9.82
	replacement
11061C	11061C 11061-1479 GASKET,TRANSMISSION C	11061-1479	from US $9.82
11061D	11061D 11061-0923 GASKET,CLUTCH COVER I	11061-0923	US $38.75
	replacement
11061D	11061D 11061-1477 GASKET,CLUTCH COVER I	11061-1477	from US $39.12
11065	11065 11065-0342 CAP,GENERATOR COVER ゼネレータカバ	11065-0342	from US $18.69
12053	12053 12053-0208 GUIDE-CHAIN	12053-0208	from US $1.90
14014	14014 14014-0567 PLATE-POSITION	14014-0567	from US $5.86
14026	14026 14026-0109 COVER-CHAIN	14026-0109	from US $20.12
14031	14031 14031-0585 Cover-generator	14031-0585	from US $134.64
14032	14032 14032-0604 COVER-CLUTCH	14032-0604	from US $211.99
14044A	14044A 14044-0565 ホルダ(ケ-ブル)，クラツチ	14044-0565	from US $4.75
14092	14092 14092-0108 COVER	14092-0108	from US $58.49
16115	16115 16115-1053 CAP-OIL FILLER	16115-1053	from US $6.49
16130	16130 16130-0002 VALVE-ASSY-RELIEF リリ-フ	16130-0002	from US $15.36
49063	49063 49063-1055 SEAL-MECHANICAL	49063-1055	from US $21.37
52005	52005 52005-1009 GAUGE,OIL LEVEL	52005-1009	from US $13.15
92015	92015 92015-1367 NUT,FLANGED,6MM	92015-1367	from US $3.01
92045	92045 92045-1246 BEARING-BALL,6901	92045-1246	from US $22.29
92046	92046 92046-0034 BEARING-NEEDLE,HK1210FM	92046-0034	from US $12.67
92046A	92046A 92046-0042 BEARING-NEEDLE	92046-0042	from US $12.36
92046B	92046B 92046-1148 BEARING-NEEDLE,HK1312	92046-1148	from US $15.68
92049	92049 92049-1191 SEAL-OIL	92049-1191	US $25.91
92049A	92049A 92049-1228 SEAL-OIL,AC037AE0	92049-1228	from US $6.81
92049B	92049B 92049-1262 SEAL-OIL	92049-1262	from US $3.96
92049C	92049C 92049-1559 SEAL-OIL	92049-1559	from US $3.01
92055	92055 92055-012 0 RING,18MM	92055-012	from US $1.43
92055A	92055A 92055-091 O RING,RELEASE PLUG	92055-091	from US $3.48
92055B	92055B 92055-1146 RING-O	92055-1146	from US $6.57
92066	92066 92066-0770 PLUG	92066-0770	from US $7.29
92066A	92066A 92066-1163 PLUG,COVER,LH	92066-1163	from US $9.35
92143	92143 92143-1263 COLLAR	92143-1263	from US $3.01
92153	92153 92153-1342 BOLT,FLANGED,8X10	92153-1342	from US $1.43
92154	92154 92154-1009 BOLT,FLANGED,6X35	92154-1009	from US $1.43
92154A	92154A 92154-1010 BOLT,FLANGED,6X25	92154-1010	from US $0.63
92154B	92154B 92154-1011 BOLT,FLANGED,6X25	92154-1011	from US $1.74
92172	92172 92172-0223 SCREW,6X16	92172-0223	from US $0.95

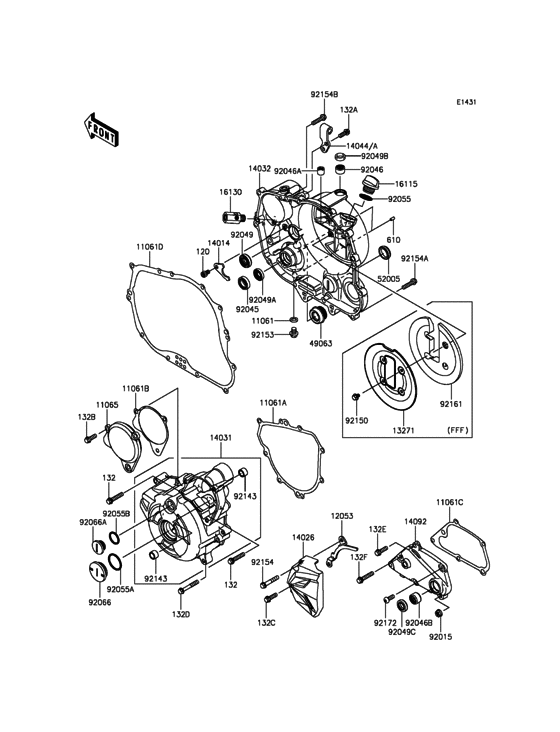

Engine Cover(s) Diagram Kawasaki BR250 Z250SL ABS Europe (General) 16044152-846661

Engine Cover(s) Diagram Kawasaki BR250 Z250SL ABS Europe (General) 16044152-846661
