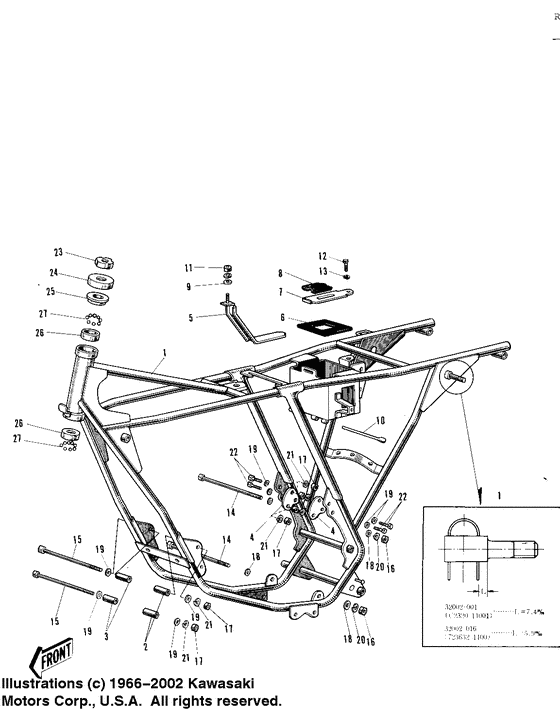

Frame/frame fittings Diagram Kawasaki C2 Roadrunner
- Year
- 1969
- Model code
- C2TR
- Sales region
- USA
- Engine Capacity
- 120
- Model
- C2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32002-001 FRAME'69 model |
32002-001 |
US $230.89 |
||
|
2
|
2
92027-048 COLLAR ENG MOUNT ALength 22 m/m |
92027-048 |
US $1.62 |
||
|
3
|
3
92027-020 COLLAR ENG MOUNT BLength 28 m/m |
92027-020 |
US $1.37 |
||
|
4
|
4
92030-001 WASHER-LOCK,16MMWasher-lock,16mm; |
92030-001 |
US $0.29 |
||
|
5
|
5
32100-006 BAND OIL TANK |
32100-006 |
US $5.18 |
||
|
6
|
6
32103-001 MAT BATTERY |
32103-001 |
US $1.31 |
||
|
7
|
7
32100-001 PLATE BATTERY |
32100-001 |
US $3.06 |
||
|
8
|
8
31082-002 PROTECTOR BATTERY |
31082-002 |
US $2.77 |
||
|
9
|
9
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
9
|
9
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
10
|
10
32111-001 PIN |
32111-001 |
US $0.29 |
||
|
11
|
11
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
11
|
11
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
12
|
12
220B0612 Screw-pan head,6x12Screw pan head 6x12; |
220B0612 |
US $1.11 |
||
| replacements | |||||
|
12
|
12
220AA0612 SCREW-PAN-CROSS,6X12Screw pan head 6x12; |
220AA0612 |
from US $0.91 |
||
|
12
|
12
214B0612
Screw-pan+-
Screw pan head 6x12; |
214B0612 |
— | ||
|
13
|
13
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
13
|
13
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
14
|
14
92001-1602 BOLT, FLANGED, 10X110Bolt, flanged, 10x110; |
92001-1602 |
from US $6.49 |
||
|
15
|
15
110B08100 BOLT HEX HEAD 8X100 |
110B08100 |
US $17 |
||
|
16
|
16
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
16
|
16
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
17
|
17
311B0800
Nut,8mm
Nut,8mm; |
311B0800 |
— | ||
| replacements | |||||
|
17
|
17
317AA0800 NUT-HEX-SMALLNut,8mm; |
317AA0800 |
from US $0.94 |
||
|
17
|
17
311AA0800 NUT-HEX-SMALLNut,8mm; |
311AA0800 |
US $0.40 |
||
|
18
|
18
410B1000
W-PLAIN-S
Washer plain 10mm; |
410B1000 |
— | ||
| replacement | |||||
|
18
|
18
410AA1000 W-PLAIN-SWasher plain 10mm; |
410AA1000 |
from US $0.81 |
||
|
19
|
19
410B0800
WASHER-PLAIN-SMALL,8M
Washer plain 8mm; |
410B0800 |
— | ||
| replacement | |||||
|
19
|
19
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
20
|
20
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
20
|
20
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.95 |
||
|
21
|
21
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
21
|
21
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
22
|
22
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x16; |
115G0816 |
— | ||
| replacement | |||||
|
22
|
22
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x16; |
115BA0816 |
from US $0.86 |
||
|
23
|
23
92090-006 NUT STEERING STEM LCK |
92090-006 |
from US $10.67 |
||
|
24
|
24
46098004 CAP STEERING STEMCap steering stem; |
46098004 |
from US $4.59 |
||
|
25
|
25
92047-005 CONE UPPER BEARINGCone upper bearing; |
92047-005 |
from US $8.09 |
||
|
26
|
26
92048-004
RACE BEARING
Race bearing; |
92048-004 |
— | ||
|
27
|
27
600A0600 BALL STEEL 3/16'Ball steel 3/16'; |
600A0600 |
from US $0.79 |
||
