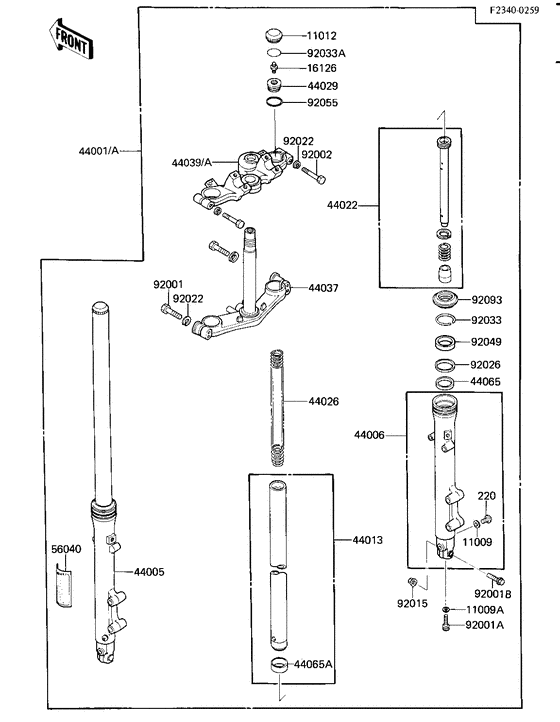

Front fork Diagram Kawasaki EL250 Eliminator 250
- Year
- 1988
- Model code
- EL250-B2
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0406
SCREW-PAN CROS,4X6
Screw pan head 4x6; |
220B0406 |
— | ||
| replacement | |||||
|
220
|
220
220AA0406 SCREW-PAN CROS,4X6Screw pan head 4x6; |
220AA0406 |
from US $1.11 |
||
|
11009
|
11009
44045046 GASKET,FORK DRAIN PLGGasket,fork drain plg; |
44045046 |
from US $4.35 |
||
|
11009A
|
11009A
44045051 GASKET,FORK CYL BOLTGasket,fork cyl bolt; |
44045051 |
from US $4.59 |
||
|
11012
|
11012
11012-1473 CAP,FORK TOPCap,fork top; |
11012-1473 |
US $20.72 |
||
| replacement | |||||
|
11012
|
11012
11012-1696 CAP,FORK TOPCap,fork top; |
11012-1696 |
from US $15.71 |
||
|
16126
|
16126
16126-1105 VALVE,AIRValve,air; |
16126-1105 |
US $27.50 |
||
| replacement | |||||
|
16126
|
16126
16126-1043 VALVE,AIRValve,air; |
16126-1043 |
from US $20.38 |
||
|
44001
|
44001
44001-1584 FORK-FRONT |
44001-1584 |
US $2,338.11 |
||
|
44005
|
44005
44005-1233 PIPE-LEFT FORK OUTER |
44005-1233 |
US $407.39 |
||
|
44006
|
44006
44006-1233 PIPE-RIGHT FORK OUTER |
44006-1233 |
US $407.39 |
||
|
44013
|
44013
44013-1232 PIPE-FORK INNER |
44013-1232 |
US $388.67 |
||
|
44022
|
44022
44022-1182 CYLINDER-COMP-FORK |
44022-1182 |
US $85.46 |
||
| replacement | |||||
|
44022
|
44022
44023-1055 CYLINDER-COMP-FORK |
44023-1055 |
US $85.46 |
||
|
44026
|
44026
44026-1303 SPRING-FRONT FORK,K=0Spring-front fork,k=0; |
44026-1303 |
US $61.11 |
||
|
44029
|
44029
44029-1120 SEAT-FORK SPRING |
44029-1120 |
US $40.54 |
||
|
44037
|
44037
44037-1183 Holder-fork under |
44037-1183 |
US $296.96 |
||
| replacement | |||||
|
44037
|
44037
44037-1210 Holder-fork under |
44037-1210 |
US $296.96 |
||
|
44039
|
44039
44039-1124 HOLDER-FORK UPPER |
44039-1124 |
US $247.91 |
||
| replacement | |||||
|
44039
|
44039
44039-1129 HOLDER-FORK UPPER |
44039-1129 |
US $247.91 |
||
|
44065
|
44065
44065-1070 BUSHING-FRONT FORK |
44065-1070 |
from US $16.01 |
||
|
44065A
|
44065A
44065-1071
BUSHING-FRONT FORK,IN
Bushing-front fork,in; |
44065-1071 |
— | ||
|
56040
|
56040
56040-1054
LABEL-WARNING,AIR SUS
Label-warning,air sus; |
56040-1054 |
— | ||
|
92001
|
92001
92001-1063 BOLT,HEX HEAD,8X40Bolt,hex head,8x40; |
92001-1063 |
from US $6.49 |
||
|
92001A
|
92001A
92001-1464 BOLT,FORK DRAINBolt,fork drain; |
92001-1464 |
from US $3.48 |
||
|
92001B
|
92001B
92001-1486 BOLT,FLANGED,8X50Bolt,flanged,8x50; |
92001-1486 |
from US $7.60 |
||
|
92002
|
92002
92002-1603 Bolt |
92002-1603 |
from US $3.89 |
||
|
92015
|
92015
92015-1055 NUT,8MMNut,8mm; |
92015-1055 |
US $3.35 |
||
| replacement | |||||
|
92015
|
92015
92015-1398 NUT,8MMNut,8mm; |
92015-1398 |
from US $3.17 |
||
|
92022
|
92022
92022-1703 WASHER,SPRING,8MMWasher,spring,8mm; |
92022-1703 |
from US $3.19 |
||
|
92026
|
92026
92026-1254
SPACER,FORK
Spacer,fork; |
92026-1254 |
— | ||
|
92033
|
92033
92033-1200 RING-SNAP,FORKRing-snap,fork; |
92033-1200 |
from US $3.89 |
||
|
92033A
|
92033A
92033-1201 RING-SNAP |
92033-1201 |
US $2.95 |
||
|
92049
|
92049
92049-1230 SEAL-OIL,FORKSeal-oil,fork; |
92049-1230 |
from US $20.40 |
||
|
92055
|
92055
92055-1309 RING-O,FORK SPRING SERing-o,fork spring se; |
92055-1309 |
from US $3.27 |
||
|
92093
|
92093
92093-1197 SEAL,FORKSeal,fork; |
92093-1197 |
from US $15.12 |
||
