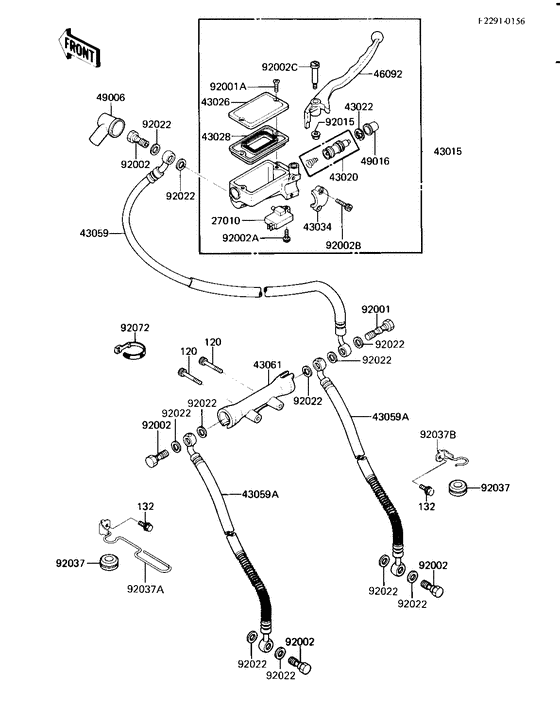

Front master cylinder Diagram Kawasaki EL250 Eliminator 250
- Year
- 1988
- Model code
- EL250-B2
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0645 BOLT-SOCKET,6X45Bolt,socket,6x45; |
120P0645 |
from US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0645 BOLT-SOCKET,6X45Bolt,socket,6x45; |
120CA0645 |
from US $0.95 |
||
|
132
|
132
132E0612 BOLT-FLANGED-SMALL |
132E0612 |
from US $0.95 |
||
| replacement | |||||
|
132
|
132
92002-1608 Bolt |
92002-1608 |
from US $5.24 |
||
|
27010
|
27010
27010-1170
SWITCH,BRAKE
Switch,brake; |
27010-1170 |
— | ||
| replacement | |||||
|
27010
|
27010
27010-0025 SWITCH,BRAKESwitch,brake; |
27010-0025 |
from US $23.19 |
||
|
43015
|
43015
43015-1293 CYLINDER-ASSY-MASTER, |
43015-1293 |
US $275.40 |
||
|
43020
|
43020
43020-1054 FRONT BRAKE PISTON-COMPPiston-comp-brake,fr; |
43020-1054 |
from US $50.63 |
||
|
43022
|
43022
43022-1010 BRAKE PISTON STOPPERStopper-brake,piston; |
43022-1010 |
from US $4.09 |
||
|
43026
|
43026
43026-1052
CAP-BRAKE,FR
Cap-brake,fr; |
43026-1052 |
— | ||
|
43028
|
43028
43028-1058 DIAPHRAGM,MASTER CYLIDiaphragm,master cyli; |
43028-1058 |
from US $16.16 |
||
|
43034
|
43034
43034-1053 HOLDER-BRAKE,MASTER CHolder-brake,master c; |
43034-1053 |
from US $24.24 |
||
|
43059
|
43059
43059-1305 HOSE-BRAKE |
43059-1305 |
US $79.70 |
||
|
43059A
|
43059A
43059-1306 HOSE-BRAKE |
43059-1306 |
US $91.46 |
||
|
43061
|
43061
43061-1056 JOINT-BRAKE |
43061-1056 |
US $95.33 |
||
| replacement | |||||
|
43061
|
43061
43061-1068 JOINT-BRAKE |
43061-1068 |
from US $95.33 |
||
|
46092
|
46092
46092-1121 LEVER-GRIP,FRONT BRAKLever-grip,front brak; |
46092-1121 |
US $50.58 |
||
|
49006
|
49006
49006-1041 BOOT,DUSTBoot,dust; |
49006-1041 |
from US $9.35 |
||
|
49016
|
49016
49016-1044 COVER-SEAL,MASTER CYLINDERCover-seal,master cyl; |
49016-1044 |
from US $10.61 |
||
|
92001
|
92001
92002-1909 BOLT,OIL,L=37 |
92002-1909 |
from US $7.76 |
||
| replacement | |||||
|
92001
|
92001
92153-0628 BOLT,OIL,L=37 |
92153-0628 |
from US $6.65 |
||
|
92001A
|
92001A
92001-1727 BOLT,MASTER CYLINDERBolt,master cylinder; |
92001-1727 |
from US $2.85 |
||
|
92002
|
92002
92002-1888
BOLT,OIL,L=23
Bolt,oil,l=23; |
92002-1888 |
— | ||
| replacement | |||||
|
92002
|
92002
92153-0627 BOLT,OIL,L=23Bolt,oil,l=23; |
92153-0627 |
from US $2.85 |
||
|
92002A
|
92002A
92002-1323 Bolt |
92002-1323 |
from US $2.53 |
||
|
92002B
|
92002B
92002-1324 BOLT,SOCKET,6X20Bolt,socket,6x10; |
92002-1324 |
from US $6.02 |
||
| replacement | |||||
|
92002B
|
92002B
92153-0417 BOLT,SOCKET,6X20Bolt,socket,6x10; |
92153-0417 |
from US $3.80 |
||
|
92002C
|
92002C
92002-1561 BOLT,LEVER SETBolt,lever set; |
92002-1561 |
from US $7.13 |
||
|
92015
|
92015
92015-1528 NUT,FLANGED,6MMNut,flanged,6mm; |
92015-1528 |
from US $3.17 |
||
|
92022
|
92022
43067-001
WASHER-SEAL,10.1X14.5
Washer-oil bolt; |
43067-001 |
— | ||
| replacement | |||||
|
92022
|
92022
49091-0001 WASHER-SEAL,10.1X14.5Washer-oil bolt; |
49091-0001 |
US $2.81 |
||
|
92037
|
92037
43064006 DAMPER RUBBER,CYL HSEDamper rubber,cyl hse; |
43064006 |
from US $3.17 |
||
|
92037A
|
92037A
92037-1702 CLAMP,BRAKE HOSE,LHClamp,brake hose,lh; |
92037-1702 |
US $20.28 |
||
|
92037B
|
92037B
92037-1703 CLAMP,BRAKE HOSE,RHClamp,brake hose,rh; |
92037-1703 |
from US $18.32 |
||
|
92072
|
92072
92072-056 BAND,WIRING HARNESSBand,wiring harness; |
92072-056 |
from US $3.17 |
||
