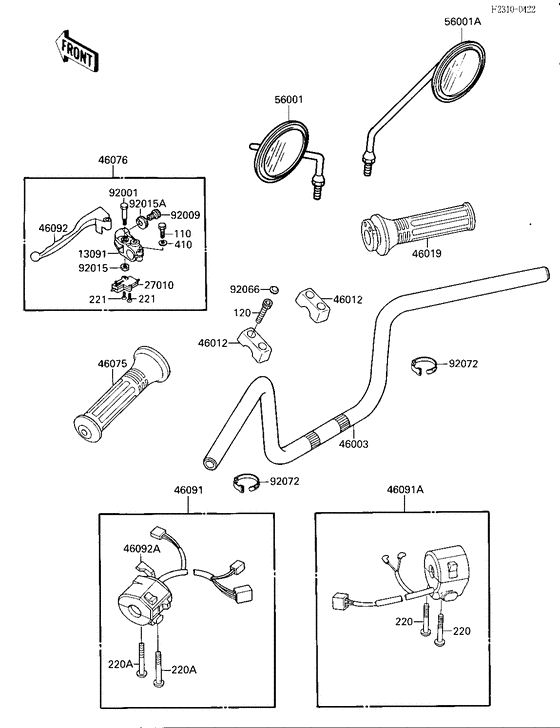

Handlebar Diagram Kawasaki EL250 Eliminator 250
- Year
- 1988
- Model code
- EL250-B2
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13091
|
13091
13091-1272 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13091-1272 |
from US $32.01 |
||
|
27010
|
27010
27010-1094 SWITCH,CLUTCHSwitch,clutch,black; |
27010-1094 |
from US $21.07 |
||
|
46003
|
46003
46003-1267 HANDLE |
46003-1267 |
US $111.17 |
||
|
46012
|
46012
46012-1137 HOLDER-HANDLE |
46012-1137 |
from US $23.17 |
||
|
46019
|
46019
46019-1061 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1061 |
from US $28.27 |
||
|
46075
|
46075
46075-1060 GRIP,LHGrip,lh; |
46075-1060 |
US $13.31 |
||
| replacement | |||||
|
46075
|
46075
46075-0650 Grip,LhGrip,lh; |
46075-0650 |
US $20.83 |
||
|
46076
|
46076
46076-1105 LEVER-ASSY-GRIP,CLUTCLever-assy-grip,clutch; |
46076-1105 |
from US $43.43 |
||
|
46091
|
46091
46091-1467 HOUSING-ASSY-CONTROL,Housing-assy-control,lh; |
46091-1467 |
US $126.83 |
||
|
46091A
|
46091A
46091-1469 HOUSING-ASSY-CONTROL,Housing-assy-control,rh; |
46091-1469 |
US $129.31 |
||
|
46092
|
46092
46092-1103 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1103 |
from US $21.24 |
||
|
46092A
|
46092A
46092-1124 LEVER-GRIP,CHOKELever-grip,choke; |
46092-1124 |
from US $9.03 |
||
|
56001
|
56001
56001-1027 REAR VIEW MIRROR,L.H.Mirror-assy,lh; |
56001-1027 |
US $69.71 |
||
|
56001A
|
56001A
56001-1028 REAR VIEW MIRROR,R.H.Mirror-assy,rh; |
56001-1028 |
US $69.71 |
||
|
92001
|
92001
92001-1548 BOLT,CLUTCH LEVER,BLABolt,clutch lever,black; |
92001-1548 |
from US $5.54 |
||
|
92009
|
92009
92009-1134 SCREW,CABLE ADJUST,8Screw,cable adjust,8mm,black; |
92009-1134 |
from US $9.19 |
||
|
92015
|
92015
92015-1191
NUT,LOCK,6MM
Nut,lock,6mm,black; |
92015-1191 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0006 NUT,LOCK,6MMNut,lock,6mm,black; |
92210-0006 |
from US $1.27 |
||
|
92015A
|
92015A
92015-1197 NUT,CABLE ADJUST LOCKNut,cable adjust lock,black; |
92015-1197 |
from US $6.34 |
||
|
92066
|
92066
92066-1281 PLUG |
92066-1281 |
from US $3.48 |
||
|
92072
|
92072
92072-030 BAND,SHORTBand,l=123; |
92072-030 |
from US $3.01 |
||
|
110
|
110
110C0622 BOLT-UPSETBolt,6x22,black; |
110C0622 |
US $3.60 |
||
| replacement | |||||
|
110
|
110
112BB0622 BOLT-UPSETBolt,6x22,black; |
112BB0622 |
from US $0.95 |
||
|
120
|
120
120S0830
BOLT-SOCKET,8X30,BLAC
Bolt-socket,8x30,black; |
120S0830 |
— | ||
| replacement | |||||
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLACBolt-socket,8x30,black; |
120CB0830 |
from US $1.27 |
||
|
220
|
220
220C0540 SCREW-PAN-CROSS,5X40 |
220C0540 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AB0540 SCREW-PAN-CROSS,5X40 |
220AB0540 |
from US $0.95 |
||
|
220A
|
220A
220C0545 SCREW-PAN-CROSS,5X45 |
220C0545 |
from US $0.95 |
||
| replacement | |||||
|
220A
|
220A
220AB0545 SCREW-PAN-CROSS,5X45 |
220AB0545 |
from US $0.95 |
||
|
221
|
221
221C0316 SCREW-CSK-CROS |
221C0316 |
from US $1.11 |
||
| replacement | |||||
|
221
|
221
221AB0316 SCREW-CSK-CROS |
221AB0316 |
from US $0.79 |
||
|
410
|
410
410F0600 WASHER-PLAIN-SMALL,6MWasher-plain-small,6mm,black; |
410F0600 |
from US $0.45 |
||
| replacement | |||||
|
410
|
410
410AB0600 WASHER-PLAIN-SMALL,6MWasher-plain-small,6mm,black; |
410AB0600 |
from US $0.79 |
||
