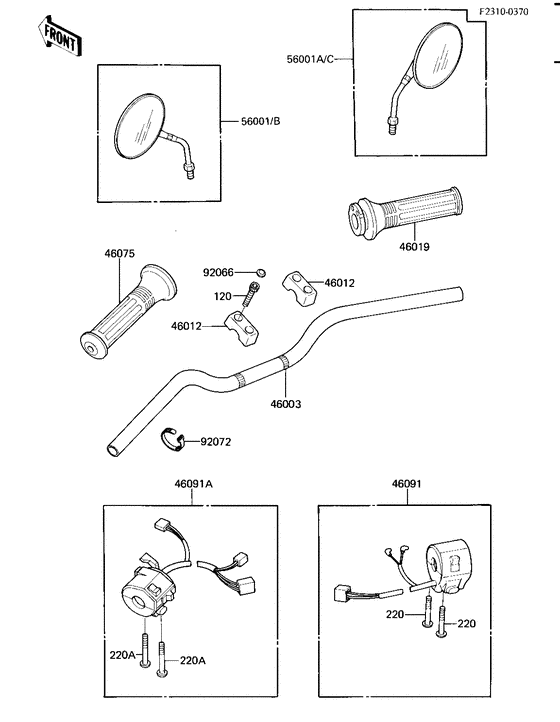

Handlebar Diagram Kawasaki EL250 Eliminator 250
- Year
- 1988
- Model code
- EL250-B2
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120S0830
BOLT-SOCKET,8X30,BLAC
Bolt-socket,8x30,blac; |
120S0830 |
— | ||
| replacement | |||||
|
120
|
120
120CB0830 BOLT-SOCKET,8X30,BLACBolt-socket,8x30,blac; |
120CB0830 |
from US $1.27 |
||
|
220
|
220
220C0540 SCREW-PAN-CROSS,5X40 |
220C0540 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AB0540 SCREW-PAN-CROSS,5X40 |
220AB0540 |
from US $0.95 |
||
|
220A
|
220A
220C0545 SCREW-PAN-CROSS,5X45 |
220C0545 |
from US $0.95 |
||
| replacement | |||||
|
220A
|
220A
220AB0545 SCREW-PAN-CROSS,5X45 |
220AB0545 |
from US $0.95 |
||
|
46003
|
46003
46003-1198 HANDLE |
46003-1198 |
US $116.08 |
||
|
46012
|
46012
46012-1137 HOLDER-HANDLE |
46012-1137 |
from US $23.17 |
||
|
46019
|
46019
46019-1061 GRIP-ASSY,THROTTLEGrip-assy,throttle; |
46019-1061 |
from US $28.27 |
||
|
46075
|
46075
46075-1060 GRIP,LHGrip,lh; |
46075-1060 |
US $13.31 |
||
| replacement | |||||
|
46075
|
46075
46075-0650 Grip,LhGrip,lh; |
46075-0650 |
US $20.83 |
||
|
46091
|
46091
46091-1354
HOUSING-ASSY-CONTROL,
Housing-assy-control,; |
46091-1354 |
— | ||
|
46091A
|
46091A
46091-1373 HOUSING-ASSY-CONTROL, |
46091-1373 |
US $162 |
||
|
56001
|
56001
56001-1266 MIRROR-ASSY,LHMirror-assy,lh; |
56001-1266 |
from US $70.31 |
||
|
56001A
|
56001A
56001-1267 MIRROR-ASSY,RHMirror-assy,rh; |
56001-1267 |
US $99.84 |
||
|
92066
|
92066
92066-1216 PLUG,HANDLE HOLDERPlug,handle holder; |
92066-1216 |
from US $3.01 |
||
|
92072
|
92072
92072-031 BAND,MIDDLEBand,middle; |
92072-031 |
from US $3.01 |
||
