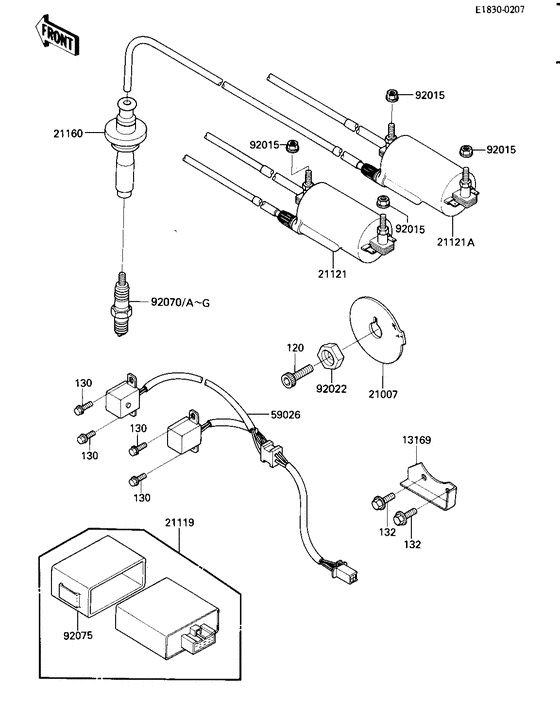

Ignition Diagram Kawasaki EL250 Eliminator 250
- Year
- 1988
- Model code
- EL250-B2
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0825 BOLT-SOCKET,8X25Bolt,socket,8x25; |
120P0825 |
from US $1.74 |
||
| replacement | |||||
|
120
|
120
120CA0825 BOLT-SOCKET,8X25Bolt,socket,8x25; |
120CA0825 |
from US $0.95 |
||
|
130
|
130
130G0512
BOLT-FLANGED,5X12
|
130G0512 |
— | ||
| replacement | |||||
|
130
|
130
130BA0512 BOLT-FLANGED,5X12 |
130BA0512 |
from US $0.95 |
||
|
132
|
132
132G0612
BOLT-FLANGED-SMALL,6X
|
132G0612 |
— | ||
| replacement | |||||
|
132
|
132
132BA0612 BOLT-FLANGED-SMALL,6X |
132BA0612 |
from US $0.79 |
||
|
13169
|
13169
13169-1748 PLATE,CHAIN GUIDEPlate,chain guide; |
13169-1748 |
from US $10.30 |
||
|
21007
|
21007
21007-1109
ROTOR,PULSING COIL
Rotor,pulsing coil; |
21007-1109 |
— | ||
|
21119
|
21119
21119-1110 IGNITER |
21119-1110 |
from US $582.30 |
||
|
21121
|
21121
21121-1135 COIL-IGNITION |
21121-1135 |
US $175.75 |
||
|
21121A
|
21121A
21121-1136 COIL-IGNITION |
21121-1136 |
US $175.75 |
||
|
21160
|
21160
21160-1065 CAP-ASSY-PLUG |
21160-1065 |
from US $42.49 |
||
|
59026
|
59026
59026-1061 COIL-PULSING |
59026-1061 |
from US $121.30 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
92200-1173 WASHER,ROTORWasher,rotor; |
92200-1173 |
from US $6.02 |
||
|
92070
|
92070
D8EA KA SPARK PLUG D8EACa,us |
D8EA |
US $29.50 |
||
|
92070B
|
92070B
D7EA SPARK PLUG D7EACa,us (option) |
D7EA |
US $31.10 |
||
|
92070C
|
92070C
92070-1019 SPARK PLUG DR8ESSpark plug dr8es (canada); Cn |
92070-1019 |
from US $7.44 |
||
|
92070E
|
92070E
92070-1034 KA SPARK PLUG D9EAUnavailable in price book; Ca,us (option) |
92070-1034 |
US $41.60 |
||
| replacements | |||||
|
92070E
|
92070E
92070-1189 KA SPARK PLUG DR9EAUnavailable in price book; Ca,us (option) |
92070-1189 |
from US $4.16 |
||
|
92070E
|
92070E
E9207-010-34
D9ea (ngk sparkplug)
Unavailable in price book; Ca,us (option) |
E9207-010-34 |
— | ||
|
92075
|
92075
92075-1592 DAMPER,IGNITERDamper,igniter; |
92075-1592 |
from US $30.52 |
||
