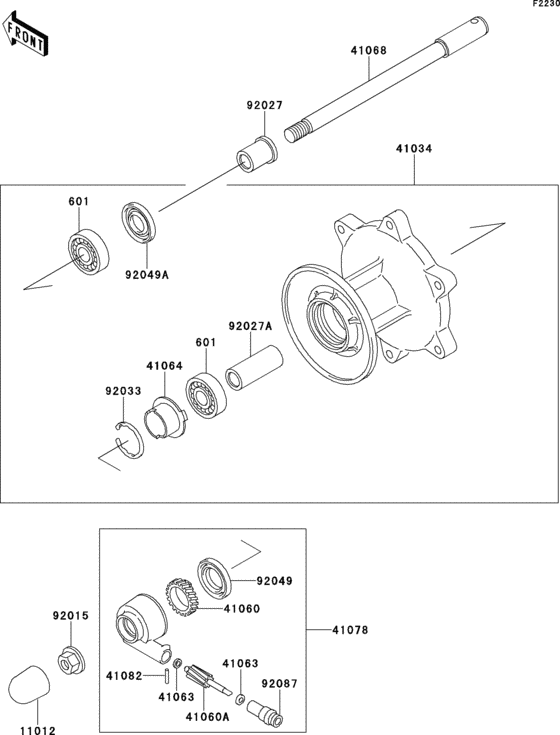

Front hub Diagram Kawasaki EL250 Eliminator 250
- Year
- 1994
- Model code
- EL250-D5
- Sales region
- Greece
- Engine Capacity
- 250
- Frame
- EL250B 040001 - 999999
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
601B6302U BEARING-BALL |
601B6302U |
from US $22.89 |
||
|
41034
|
41034
41034-1188 Drum-assy,fr brake |
41034-1188 |
US $419.63 |
||
|
41060
|
41060
41060-1025 GEAR-METER SCREW,24T |
41060-1025 |
from US $17.03 |
||
|
41060A
|
41060A
41060-1035 GEAR-METER SCREW,9T |
41060-1035 |
from US $13.66 |
||
|
41063
|
41063
41063001 WASHER THRST SPD PINI |
41063001 |
from US $3.17 |
||
|
41064
|
41064
41064-1006 RECEIVER,SPEEDOMETER |
41064-1006 |
from US $10.30 |
||
|
41068
|
41068
41068-1238 AXLE,FR |
41068-1238 |
from US $49.54 |
||
|
41078
|
41078
41078-1018 CASE-ASSY-METER GEAR |
41078-1018 |
from US $84.94 |
||
|
41082
|
41082
41082001 PIN,SPRING |
41082001 |
from US $3.01 |
||
|
92015
|
92015
92015-1407 NUT,14MM |
92015-1407 |
from US $6.34 |
||
|
92027
|
92027
92027-1225 COLLAR,FR AXLE L=30MM |
92027-1225 |
from US $12.36 |
||
|
92027A
|
92027A
92027-1980 COLLAR,15.2X22X60 |
92027-1980 |
from US $9.35 |
||
|
92033
|
92033
92033-1041 CIRCLIP,42MM |
92033-1041 |
from US $3.48 |
||
|
92049
|
92049
92049-1057 OIL SEAL,BJN30427-C3 |
92049-1057 |
from US $8.86 |
||
|
92049A
|
92049A
92049-1058 OIL SEAL,AG1144AO |
92049-1058 |
from US $8.40 |
||
|
92087
|
92087
92087-1002 BUSHING,METER GEAR |
92087-1002 |
from US $16.16 |
