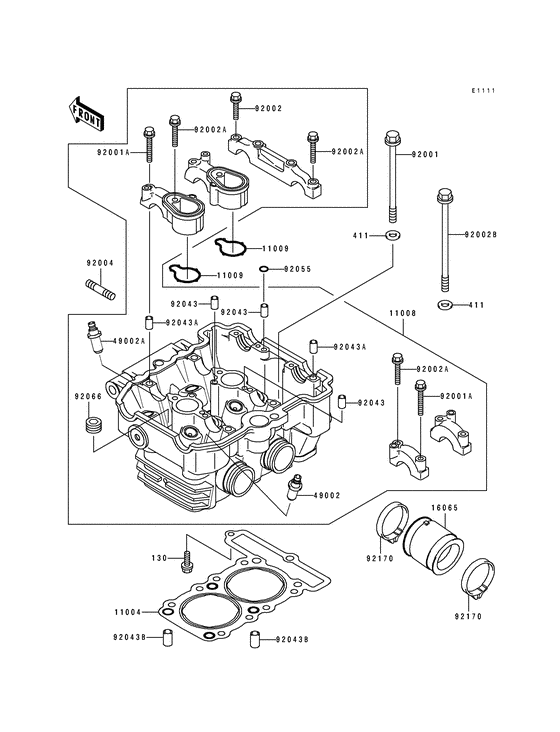

Cylinder head Diagram Kawasaki EL250 Eliminator 250
- Year
- 1991
- Model code
- EL250-E1
- Sales region
- USA
- Engine Capacity
- 250
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11004
|
11004
11004-1207
GASKET-HEAD
|
11004-1207 |
— | ||
| replacement | |||||
|
11004
|
11004
11004-1312 GASKET-HEAD |
11004-1312 |
from US $29.54 |
||
|
11008
|
11008
11008-1201 HEAD-COMP-CYLINDER |
11008-1201 |
from US $1,123.42 |
||
|
11009
|
11009
11009-1573 GASKET,CAMSHAFT BRAKEGasket,camshaft bracket; |
11009-1573 |
from US $4.62 |
||
|
16065
|
16065
16065-1158 HOLDER-CARBURETOR |
16065-1158 |
from US $19.21 |
||
|
49002
|
49002
49002-1070 GUIDE-VALVEGuide-valve,intake; |
49002-1070 |
from US $22.83 |
||
|
49002A
|
49002A
49002-1071 GUIDE-VALVEGuide-valve,exhaust; |
49002-1071 |
from US $22.83 |
||
|
92001
|
92001
92001-1481 BOLTBolt,8x115; |
92001-1481 |
from US $6.50 |
||
|
92001A
|
92001A
92001-1872 BOLT,6X46Bolt,6x46; |
92001-1872 |
from US $2.42 |
||
|
92002
|
92002
92002-1755 BOLT,6X30Bolt,6x30; |
92002-1755 |
from US $2.72 |
||
|
92002A
|
92002A
92002-1756 BOLT,6X40Bolt,6x40; |
92002-1756 |
from US $2.58 |
||
|
92002B
|
92002B
92002-1832 BOLT,8X146Bolt,8x146; |
92002-1832 |
US $11.38 |
||
|
92004
|
92004
92004-059 STUDStud,6x22; |
92004-059 |
from US $3.18 |
||
|
92043
|
92043
92043-1262 PIN,DOWEL,4.2X6X12Pin,4.2x6x12; |
92043-1262 |
from US $2.24 |
||
|
92043A
|
92043A
92043-1263 PIN,6.2X8X14Pin,6.2x8x14; |
92043-1263 |
from US $0.60 |
||
|
92043B
|
92043B
92043-1264 PIN,DOWEL,8.2X10X14Pin,8.2x10x14; |
92043-1264 |
from US $0.86 |
||
|
92055
|
92055
92055-1339 RING-O,5.5X1.5Ring-o,5.5x1.5; |
92055-1339 |
from US $2.38 |
||
|
92066
|
92066
92066-1253 PLUG,PT1/2X12.5 |
92066-1253 |
US $7.46 |
||
| replacement | |||||
|
92066
|
92066
92066-0002 PLUG,PT1/2X12.5 |
92066-0002 |
from US $4.84 |
||
|
92170
|
92170
92170-1438 CLAMP |
92170-1438 |
from US $5.14 |
||
|
130
|
130
130J0625
BOLT-FLANGED,6X25
Bolt-flanged,6x25; |
130J0625 |
— | ||
| replacement | |||||
|
130
|
130
130BB0625 BOLT-FLANGED,6X25Bolt-flanged,6x25; |
130BB0625 |
from US $1.12 |
||
|
411
|
411
411B0800
WASHER PLAIN 8MM
Washer-plain,8mm; |
411B0800 |
— | ||
| replacement | |||||
|
411
|
411
411AA0800 WASHER-PLAINWasher-plain,8mm; |
411AA0800 |
from US $0.60 |
||
