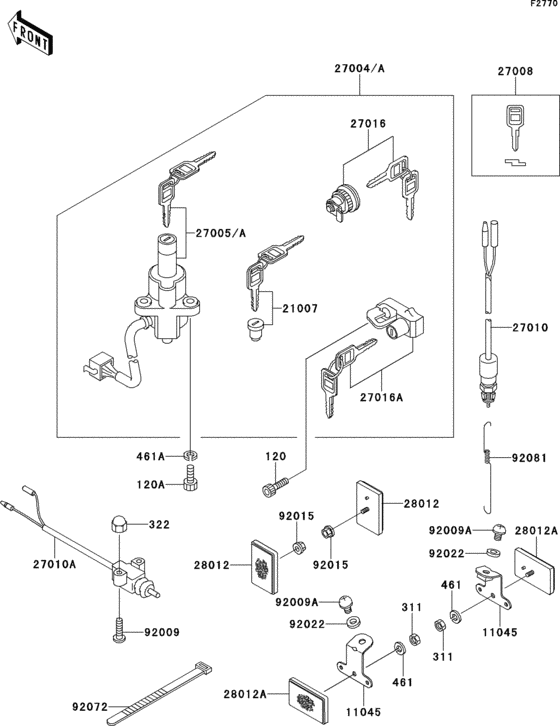

Ignition switch/locks/reflectors Diagram Kawasaki EL250 Eliminator 250
- Year
- 1991
- Model code
- EL250-E1
- Sales region
- Canada
- Engine Capacity
- 250
- Frame
- JKAELME1 MA000001 - MA005000
- Model
- EL250 Eliminator
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CB0620 BOLT-SOCKET |
120CB0620 |
from US $1.11 |
||
|
120A
|
120A
120CA0822 BOLT-SOCKET,8X22 |
120CA0822 |
from US $1.27 |
||
|
311
|
311
311AA0500 NUT-HEX,5MM |
311AA0500 |
from US $0.78 |
||
|
322
|
322
322AB0500 NUT-CAP,5MM |
322AB0500 |
from US $2.33 |
||
|
461
|
461
461DA0500 WASHER-SPRING |
461DA0500 |
from US $0.48 |
||
|
461A
|
461A
461DA0800 WASHER-SPRING,8MM |
461DA0800 |
from US $0.48 |
||
|
21007
|
21007
21007-5039 ROTOR,LOCK,TANK CAP |
21007-5039 |
from US $59.39 |
||
|
27004
|
27004
27004-5320 SWITCH-ASSY |
27004-5320 |
from US $269.32 |
||
|
27005
|
27005
27005-5078 SWITCH-ASSY-IGNITION |
27005-5078 |
US $206.18 |
||
|
27008
|
27008
27008-1103 KEY-LOCK,BLANK |
27008-1103 |
from US $14.57 |
||
|
27010
|
27010
27010-1479 SWITCH,REAR BRAKE |
27010-1479 |
from US $19.01 |
||
|
27010A
|
27010A
27010-1223 SWITCH,SIDE STAND |
27010-1223 |
from US $50.27 |
||
|
27016
|
27016
27016-5210 LOCK-ASSY,TOOL BOX |
27016-5210 |
from US $56.25 |
||
|
27016A
|
27016A
27016-5212 LOCK-ASSY,HELMET |
27016-5212 |
from US $58.49 |
||
|
28012
|
28012
28012-1003 REFLECTOR,REFLEX(FRON |
28012-1003 |
from US $15.68 |
||
|
28012A
|
28012A
28012-1077 Reflector-reflex |
28012-1077 |
from US $19.66 |
||
|
92009
|
92009
92009-1459 SCREW |
92009-1459 |
from US $3.90 |
||
|
92009A
|
92009A
92009-1611 SCREW,6X14 |
92009-1611 |
from US $3.17 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92022
|
92022
92022-1143 WASHER,PLAIN,6.5X16X1 |
92022-1143 |
from US $2.53 |
||
|
92072
|
92072
92072-1195 BAND,L=185 |
92072-1195 |
from US $2.07 |
||
|
92081
|
92081
92081-1146 SPRING,BRAKE LAMP SW |
92081-1146 |
from US $3.47 |
