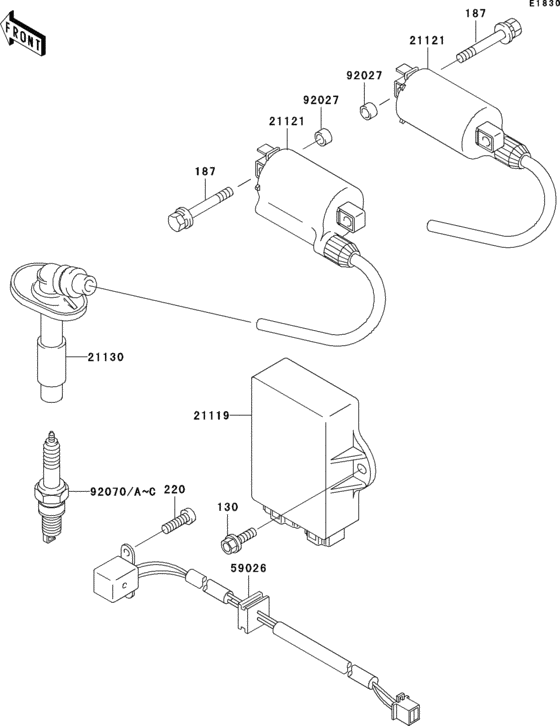

Ignition system Diagram Kawasaki EL250 Eliminator 252
- Year
- 1996
- Model code
- EL250-F2
- Sales region
- France
- Engine Capacity
- 250
- Frame
- EL250E 020001 - 999999
- Model
- EL252 Eliminator
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0612 BOLT-FLANGED,6X12 |
130BA0612 |
from US $0.76 |
||
|
187
|
187
187BA0625 BOLT-UPSET-WSP |
187BA0625 |
from US $1.20 |
||
|
220
|
220
220AA0510 SCREW-PAN-CROSS,5X10 |
220AA0510 |
from US $0.46 |
||
|
21119
|
21119
21119-1403
Igniter
|
21119-1403 |
— | ||
|
21121
|
21121
21121-1163 COIL-IGNITION |
21121-1163 |
from US $122.92 |
||
|
21130
|
21130
21130-1056 Cap-spark plug |
21130-1056 |
from US $31.44 |
||
|
59026
|
59026
59026-1086 COIL-PULSING |
59026-1086 |
from US $83.47 |
||
|
92027
|
92027
92027-103 COLLAR |
92027-103 |
from US $2.52 |
||
|
92070
|
92070
16126-1211
Valve,vacuum
|
16126-1211 |
— | ||
|
92070A
|
92070A
11038-1127 CASE-ASSY-AIR FILTER |
11038-1127 |
from US $187.49 |
