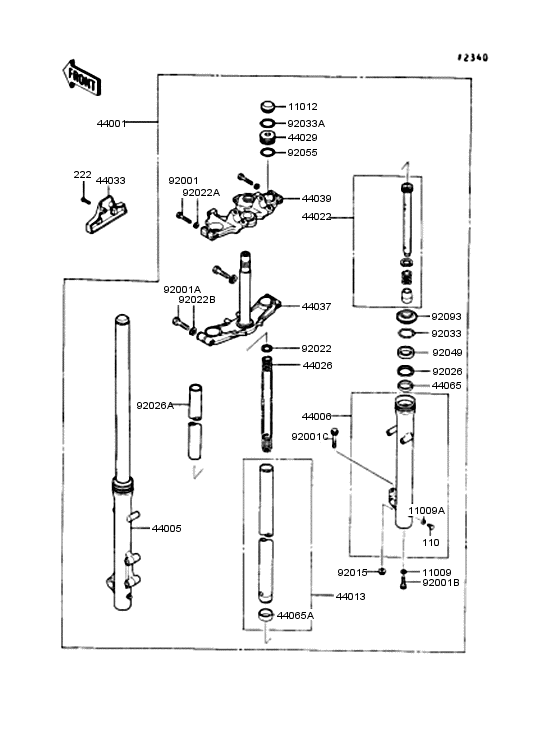

Front fork Diagram Kawasaki EN400 EN400 Twin
- Year
- 1989
- Colour
- 005
- Model code
- EN400-A4
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- EN400A 002701 -
- Engine
- EN400AE 003501 -
- Model
- EN400 Twin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
110B0608 BOLT HEX HEAD 6X8ボルト，6X8 |
110B0608 |
US $2.20 |
||
| replacement | |||||
|
110
|
110
112AA0608 BOLT-UPSETボルト，6X8 |
112AA0608 |
from US $0.94 |
||
|
222
|
222
222C0520 SCREW-CSK-RD-CROSマルサラコネジ(+ジアナ) |
222C0520 |
from US $1.11 |
||
| replacement | |||||
|
222
|
222
222AB0520 SCREW-CSK-RD-CROSマルサラコネジ(+ジアナ) |
222AB0520 |
from US $0.94 |
||
|
11009
|
11009
44045051 GASKET,FORK CYL BOLTガスケツト，フオ-ク シリンダ ボルト |
44045051 |
from US $4.59 |
||
|
11009A
|
11009A
44045-052
GASKET,DRAIN PLUG
ガスケツト，ドレ-ン プラグ |
44045-052 |
— | ||
| replacement | |||||
|
11009A
|
11009A
44045047 GASKET,DRAIN PLUGガスケツト，ドレ-ン プラグ |
44045047 |
from US $5.76 |
||
|
11012
|
11012
11012-1689 CAP,FORK TOPキヤツプ，フオ-ク トツプ |
11012-1689 |
from US $19.48 |
||
|
44001
|
44001
44001-1719 FORK-FRONTフオ-ク(フロント) |
44001-1719 |
from US $1,881.34 |
||
|
44005
|
44005
44005-1230 PIPE-LEFT FORK OUTERチユ-ブ(レフトフオ-クアウタ) |
44005-1230 |
US $373.16 |
||
|
44006
|
44006
44006-1230 PIPE-RIGHT FORK OUTERチユ-ブ(ライトフオ-クアウタ) |
44006-1230 |
US $341.22 |
||
|
44013
|
44013
44013-1286 PIPE-FORK INNERパイプ(フオ-クインナ) |
44013-1286 |
from US $270.07 |
||
|
44022
|
44022
44022-1178 CYLINDER-FORKシリンダ(フオ-ク) |
44022-1178 |
from US $102.06 |
||
|
44026
|
44026
44026-1297 SPRING-FRONT FORK,K=0スプリング(フロントフオ-ク)，K=0.29 |
44026-1297 |
US $50.62 |
||
|
44029
|
44029
44029-1124 SEAT-FORK SPRINGシ-ト(フオ-クスプリング) |
44029-1124 |
from US $35.31 |
||
|
44033
|
44033
44033-1166 COVER-FORKカバ-(フオ-ク) |
44033-1166 |
from US $43.83 |
||
|
44037
|
44037
44037-1176 Holder-fork underホルダ(フオ-クアンダ) |
44037-1176 |
US $296.96 |
||
| replacement | |||||
|
44037
|
44037
44037-1188 Holder-fork underホルダ(フオ-クアンダ) |
44037-1188 |
US $296.96 |
||
|
44039
|
44039
44039-1118 HOLDER-FORK UPPERホルダ(フオ-クアツパ) |
44039-1118 |
from US $217.94 |
||
|
44065
|
44065
44065-1068 BUSHING-FRONT FORKブツシング(フロントフオ-ク) |
44065-1068 |
from US $18.37 |
||
|
44065A
|
44065A
44065-1069 BUSHING-FRONT FORK,INブツシング(フロントフオ-ク)，インナ パイプ |
44065-1069 |
US $29.56 |
||
|
92001C
|
92001C
92001-1486 BOLT,FLANGED,8X50ボルト，フランジ，8X50 |
92001-1486 |
from US $7.60 |
||
|
92001
|
92001
92001-1063 BOLT,HEX HEAD,8X40ボルト，8X40 |
92001-1063 |
from US $6.49 |
||
|
92001A
|
92001A
92001-1454 Boltボルト，10X40 |
92001-1454 |
from US $6.49 |
||
|
92001B
|
92001B
92001-1464 BOLT,FORK DRAINボルト，フオ-ク シリンダ |
92001-1464 |
from US $3.48 |
||
|
92015
|
92015
92015-1055 NUT,8MMナツト，フランジ，8MM |
92015-1055 |
US $3.35 |
||
| replacement | |||||
|
92015
|
92015
92015-1398 NUT,8MMナツト，フランジ，8MM |
92015-1398 |
from US $3.17 |
||
|
92022
|
92022
92022-1702 WASHER,FORK SPRINGワツシヤ |
92022-1702 |
US $3.87 |
||
| replacement | |||||
|
92022
|
92022
92022-1310 WASHER,FORK SPRINGワツシヤ |
92022-1310 |
US $3.87 |
||
|
92022A
|
92022A
92022-1703 WASHER,SPRING,8MMワツシヤ，スプリング，8MM |
92022-1703 |
from US $3.19 |
||
|
92022B
|
92022B
92022-1704 WASHER,SPRING,10MMワツシヤ，スプリング，10MM |
92022-1704 |
from US $3.64 |
||
|
92026
|
92026
92026-1038 SPACER,FORKスペ-サ，フオ-ク |
92026-1038 |
from US $6.49 |
||
|
92026A
|
92026A
92026-1252 SPACER,FORK SPRINGスペ-サ，フオ-ク スプリング |
92026-1252 |
from US $18 |
||
|
92033
|
92033
92033-1193 RING-SNAP,FORKリング(スナツプ)，フオ-ク |
92033-1193 |
from US $3.48 |
||
|
92033A
|
92033A
92033-1220 RING-SNAP,FORK TOPリング(スナツプ)，フオ-ク トツプ |
92033-1220 |
from US $5.86 |
||
|
92049
|
92049
92049-1226 SEAL-OIL,FORKシ-ル(オイル)，フオ-ク |
92049-1226 |
from US $15.05 |
||
|
92055
|
92055
92055-1359 RING-O,FORK SPRING SEリング(0)，フオ-ク スプリング シ-ト |
92055-1359 |
from US $5.86 |
||
|
92093
|
92093
92093-1196 SEAL,FORKシ-ル，フオ-ク |
92093-1196 |
from US $16.63 |
||
