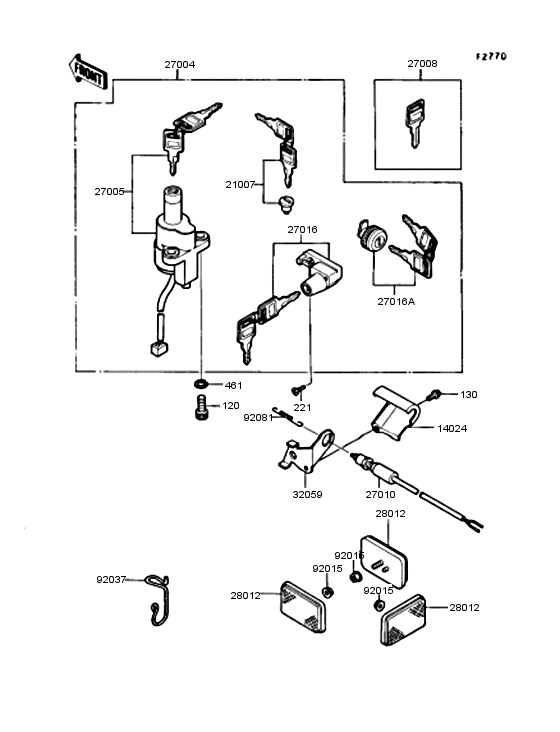

Ignition switch Diagram Kawasaki EN400 EN400 Twin
- Year
- 1989
- Colour
- 005
- Model code
- EN400-A4
- Sales region
- Japan
- Engine Capacity
- 400
- Frame
- EN400A 002701 -
- Engine
- EN400AE 003501 -
- Model
- EN400 Twin
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120T0822 BOLT-SOCKET,8X22ボルト(ロツカクアナ) |
120T0822 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CA0822 BOLT-SOCKET,8X22ボルト(ロツカクアナ) |
120CA0822 |
from US $1.27 |
||
|
130
|
130
130C0608
BOLT-FLANGED
ボルト(ツバツキ) |
130C0608 |
— | ||
| replacements | |||||
|
130
|
130
130BB0608 BOLT-FLANGED,6X8ボルト(ツバツキ) |
130BB0608 |
from US $1.11 |
||
|
130
|
130
130AB0608 BOLT-FLANGEDボルト(ツバツキ) |
130AB0608 |
US $4.45 |
||
|
221
|
221
221C0516 SCREW-CSK-CROSサラコネジ(+ジアナ) |
221C0516 |
from US $1.27 |
||
| replacement | |||||
|
221
|
221
221AB0516 SCREW-CSK-CROSサラコネジ(+ジアナ) |
221AB0516 |
from US $0.78 |
||
|
461
|
461
461L0800 WASHER-SPRING,8MMバネザガネ |
461L0800 |
from US $1.19 |
||
| replacement | |||||
|
461
|
461
461DA0800 WASHER-SPRING,8MMバネザガネ |
461DA0800 |
from US $0.48 |
||
|
14024
|
14024
14025-1706 COVER,BRAKE SWITCHカバ-，ブレ-キ スイツチ |
14025-1706 |
from US $14.06 |
||
|
21007
|
21007
21007-5005 ROTOR,LOCK,TANK CAPロ-タ，ロツク，タンク キヤツプ |
21007-5005 |
US $101.61 |
||
| replacement | |||||
|
21007
|
21007
21007-5039 ROTOR,LOCK,TANK CAPロ-タ，ロツク，タンク キヤツプ |
21007-5039 |
from US $59.39 |
||
|
27004
|
27004
27004-5253 SWITCH-ASSYスイツチアツシ |
27004-5253 |
from US $342 |
||
|
27005
|
27005
27005-5044 SWITCH-ASSY-IGNITIONスイツチアツシ(イグニシヨン) |
27005-5044 |
US $219.25 |
||
|
27008
|
27008
27008-1103 KEY-LOCK,BLANKキ-(ロツク)，ブランク |
27008-1103 |
from US $14.57 |
||
|
27010
|
27010
27010025 SWITCH,BRAKE LIGHTスイツチ，ブレ-キ ランプ |
27010025 |
from US $19.64 |
||
|
27016A
|
27016A
27016-5081 LOCK-ASSY,DRIVE COMPUロツクアツシ |
27016-5081 |
from US $86.62 |
||
|
27016
|
27016
27016-5060 LOCK-ASSY,HELMETロツクアツシ，ヘルメツト |
27016-5060 |
US $86.62 |
||
|
28012
|
28012
28012-1051 REFLECTOR-REFLEX,RRリフレクタ(リフレツクス)，RR |
28012-1051 |
from US $19.48 |
||
|
32059
|
32059
32059-1063 BRACKET-SWITCH,BRAKEブラケツト(スイツチ)，ブレ-キ スイツチ |
32059-1063 |
US $8.24 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MMナツト，フランジ，5MM |
92015-1259 |
from US $2.53 |
||
|
92037
|
92037
92037-1686 CLAMPクランプ，ハ-ネス |
92037-1686 |
US $5.54 |
||
|
92081
|
92081
27011006 SPRING BRAKE LAMP SWスプリング(ブレ-キスイツチ) |
27011006 |
from US $6.97 |
||
