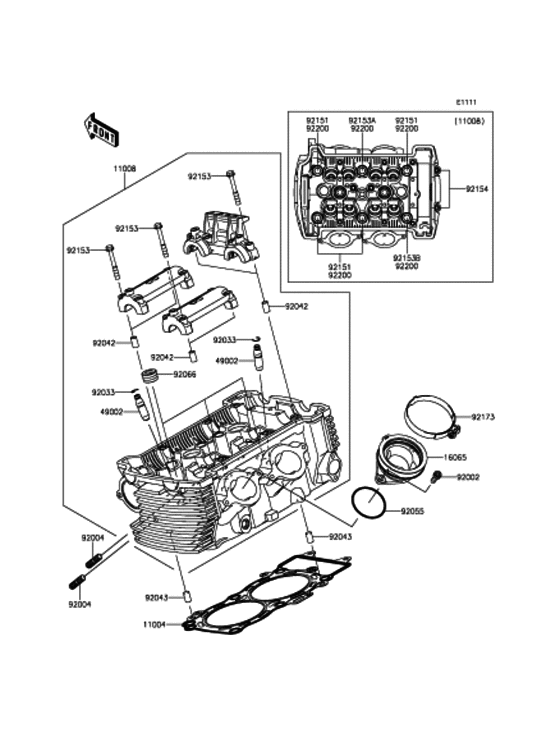

シリンダヘッド Diagram Kawasaki EN650 Vulcan S
- Year
- 2016
- Colour
- Metallic Matte Carbon Gray (51B)
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- EN650A-A04902-
- Engine
- ER650AEA00001-
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11004
|
11004
11004-0064 GASKET-HEADヘツド |
11004-0064 |
from US $71.02 |
||
|
11008
|
11008
11008-0844 HEAD-COMP-CYLINDERシリンダ |
11008-0844 |
from US $1,481.04 |
||
|
16065
|
16065
16065-0128 HOLDER-CARBURETORキヤブレタ |
16065-0128 |
from US $23.19 |
||
|
49002
|
49002
49002-1116 GUIDE-VALVEバルブ |
49002-1116 |
from US $21.84 |
||
|
92002
|
92002
92002-1143 BOLT,6X16 |
92002-1143 |
from US $2.53 |
||
|
92004
|
92004
92004-0025 STUD,8X22 |
92004-0025 |
from US $2.32 |
||
|
92033
|
92033
92033-1247 RING-SNAPスナツプ |
92033-1247 |
from US $2.38 |
||
|
92042
|
92042
92042-007 PIN-DOWEL |
92042-007 |
from US $4.44 |
||
|
92043
|
92043
92043-1567 PIN,8X14 |
92043-1567 |
from US $1.43 |
||
|
92055
|
92055
92055-1600 RING-O,47X1.9 |
92055-1600 |
from US $5.70 |
||
|
92066
|
92066
92066-0002 PLUG,PT1/2X12.5 |
92066-0002 |
from US $5.54 |
||
|
92151
|
92151
92151-1152 BOLT,10X158 |
92151-1152 |
from US $8.71 |
||
|
92153
|
92153
92153-0339 BOLT,6X45 |
92153-0339 |
from US $1.43 |
||
|
92153A
|
92153A
92153-0972 BOLT,FLANGED-SMALL,10スモール |
92153-0972 |
from US $8.08 |
||
|
92153B
|
92153B
92153-1321 BOLT,FLANGED-SMALL,10スモール |
92153-1321 |
from US $8.08 |
||
|
92154
|
92154
92154-0116 BOLT,SOCKET,6X30 |
92154-0116 |
from US $1.27 |
||
|
92173
|
92173
92173-0239 CLAMP |
92173-0239 |
from US $8.08 |
||
|
92200
|
92200
92200-0363 WASHER,10.5X19X2.3 |
92200-0363 |
from US $1.90 |
