	Description	OEM Part #	Price
13127	13127 13127-0666 SHAFT-TRANSMISSION INPUT,16T トランスミツシヨンインプツト	13127-0666	from US $168.43
13128	13128 13128-0690 SHAFT-TRANSMISSION OUTPUT トランスミツシヨンアウトプツト	13128-0690	from US $133.59
13144	13144 13144-0024 SPROCKET-OUTPUT,15T,# アウトプツト	13144-0024	—
	replacement
13144	13144 13144-0576 SPROCKET-OUTPUT,15T,#520 アウトプツト	13144-0576	from US $41.29
13262	13262 13262-0819 GEAR,INPUT 3RD&4TH,24T&27T	13262-0819	from US $86.02
13262A	13262A 13262-0821 GEAR,INPUT 2ND,21T	13262-0821	from US $28.87
13262B	13262B 13262-0823 GEAR,OUTPUT 4TH,30T	13262-0823	from US $72.71
	replacements
13262B	13262B 13262-1269 GEAR,OUTPUT 4TH,30T	13262-1269	—
13262B	13262B 13262-1580 GEAR,OUTPUT 4TH,30T	13262-1580	from US $72.71
13262C	13262C 13262-0826 GEAR,OUTPUT 2ND,36T	13262-0826	from US $72.71
13262D	13262D 13262-0827 GEAR,OUTPUT 3RD,32T	13262-0827	from US $72.71
13262E	13262E 13262-0828 GEAR,OUTPUT LOW,39T	13262-0828	from US $86.02
13262F	13262F 13262-1151 GEAR,INPUT 5TH,29T	13262-1151	from US $72.71
13262G	13262G 13262-1152 GEAR,INPUT 6TH,27T	13262-1152	from US $72.71
13262H	13262H 13262-1153 GEAR,OUTPUT 5TH,28T	13262-1153	from US $80.34
13262I	13262I 13262-1154 GEAR,OUTPUT 6TH,23T	13262-1154	from US $86.02
14014	14014 14014-0019 PLATE-POSITION,LH ポジシヨン	14014-0019	from US $2.22
14014A	14014A 14014-0020 PLATE-POSITION,RH ポジシヨン	14014-0020	from US $3.17
92009	92009 92009-1375 SCREW,6X10	92009-1375	from US $2.53
92025	92025 92025-1455 SHIM,20.3X28X1.1	92025-1455	from US $1.27
92026	92026 92026-0715 SPACER,25.3X39X2.0	92026-0715	from US $6.97
92028	92028 92028-1449 BUSHING,INPUT 5TH GEA	92028-1449	from US $16
92033	92033 92033-015 CIRCLIP スナツプ	92033-015	from US $2.69
92033A	92033A 92033-1037 SNAP RING,25.9X1.2T スナツプ	92033-1037	from US $2.85
92045	92045 92045-0042 BEARING-BALL,25X62X17 ボ-ル	92045-0042	from US $22.14
92045A	92045A 92045-1224 BEARING-BALL,6305N2SH ボ-ル	92045-1224	from US $28.27
92046	92046 92046-1185 BEARING-NEEDLE,KMJ20X ニ-ドル	92046-1185	from US $15.21
92055	92055 92055-0196 RING-O,21.5X1.5	92055-0196	from US $2.22
92139	92139 92139-0107 BUSHING,25X28.3X16.7	92139-0107	from US $15.05
92139A	92139A 92139-0108 BUSHING,OUT 3RD&4TH G	92139-0108	from US $11.72
92139B	92139B 92139-0713 BUSHING,26X34X16.2	92139-0713	from US $18.69
92152	92152 92152-0972 COLLAR,25X40X17.2	92152-0972	from US $16.95
92200	92200 92200-0221 WASHER,20.2X30X1.8	92200-0221	from US $1.90
92200A	92200A 92200-0222 WASHER,30.3X38X1.0	92200-0222	from US $2.38
92200B	92200B 92200-0291 WASHER,20.2X25.0X0.5	92200-0291	from US $0.95
92200C	92200C 92200-0721 WASHER,29.9X40X1.5	92200-0721	from US $7.44
92200D	92200D 92200-0851 WASHER	92200-0851	from US $3.73
92200E	92200E 92200-1240 WASHER,2ND,3RD,4TH	92200-1240	from US $6.49

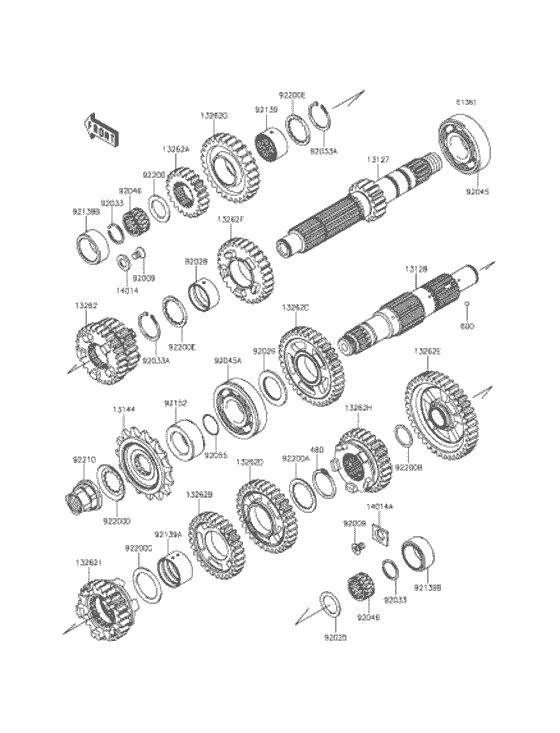

トランスミッション Diagram Kawasaki EN650 Vulcan S Metallic Matte Carbon Gray (51B) Japan 15346717-830145

トランスミッション Diagram Kawasaki EN650 Vulcan S Metallic Matte Carbon Gray (51B) Japan 15346717-830145
