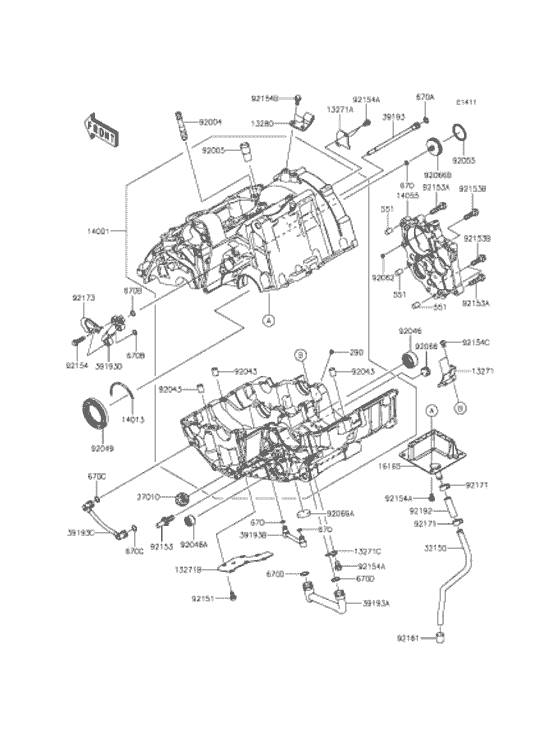

クランクケース Diagram Kawasaki EN650 Vulcan S
- Year
- 2016
- Colour
- Metallic Matte Carbon Gray (51B)
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- EN650A-A04902-
- Engine
- ER650AEA00001-
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
290
|
290
290Q0606 SCREW,6X6ロツカクアナ |
290Q0606 |
from US $3.80 |
||
|
551
|
551
551A0814 PIN DOWEL 8X14 |
551A0814 |
from US $1.65 |
||
|
670
|
670
670D1505 O-RINGウンドウヨウ |
670D1505 |
from US $2.53 |
||
|
670A
|
670A
670D1508 O RING,8M/Mウンドウヨウ |
670D1508 |
from US $3.20 |
||
|
670B
|
670B
670D1509 O RINGウンドウヨウ |
670D1509 |
from US $3.33 |
||
|
670C
|
670C
670D1510 0 RING,10MMウンドウヨウ |
670D1510 |
from US $2.85 |
||
|
670D
|
670D
670D2014 0 RING,14MMウンドウヨウ |
670D2014 |
from US $3.90 |
||
|
92154
|
92154
92154-0504 BOLT,FLANGED,6X22 |
92154-0504 |
from US $0.79 |
||
|
92154A
|
92154A
92154-0726 BOLT,FLANGED,6X8 |
92154-0726 |
from US $0.79 |
||
|
92154B
|
92154B
92154-0813 BOLT,FLANGED,6X14 |
92154-0813 |
from US $0.95 |
||
|
92154C
|
92154C
92154-1506 BOLT,SOCKET,6X8 |
92154-1506 |
from US $0.95 |
||
|
92161
|
92161
92161-0267 DAMPER |
92161-0267 |
from US $1.90 |
||
|
92171
|
92171
92171-1053 CLAMP |
92171-1053 |
from US $1.27 |
||
|
92173
|
92173
92173-0059 CLAMP |
92173-0059 |
from US $3.64 |
||
|
92192
|
92192
92192-0225 TUBE,9X12X38 |
92192-0225 |
from US $1.90 |
