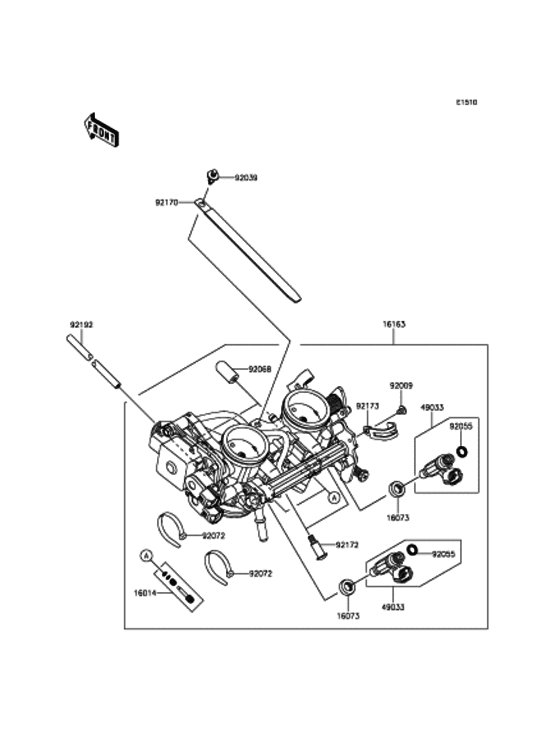

スロットル Diagram Kawasaki EN650 Vulcan S
- Year
- 2016
- Colour
- Metallic Matte Carbon Gray (51B)
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- EN650A-A04902-
- Engine
- ER650AEA00001-
- Model
- Vulcan S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16014
|
16014
16014-0002 SCREW-PILOT AIRパイロツトエア |
16014-0002 |
from US $16.32 |
||
|
16073
|
16073
16073-3707 INSULATOR |
16073-3707 |
from US $3.64 |
||
|
16163
|
16163
16163-0827 THROTTLE-ASSY |
16163-0827 |
from US $779.72 |
||
|
49033
|
49033
49033-0011 NOZZLE-INJECTIONインジエクシヨン |
49033-0011 |
from US $76.30 |
||
|
92009
|
92009
92009-1860 SCREW |
92009-1860 |
from US $1.27 |
||
|
92039
|
92039
92039-0068 RIVET |
92039-0068 |
from US $1.27 |
||
|
92055
|
92055
92055-1622 RING-O,INJECTION NOZZLE |
92055-1622 |
from US $1.27 |
||
|
92068
|
92068
92068-006 RUBBER PLUG |
92068-006 |
from US $2.85 |
||
|
92072
|
92072
92072-0012 BAND,SUB-HARNESSハ-ネス |
92072-0012 |
from US $2.69 |
||
|
92170
|
92170
92170-1114 CLAMP |
92170-1114 |
from US $5.07 |
||
|
92172
|
92172
92172-0064 SCREW,PIPE INJECTION |
92172-0064 |
from US $1.27 |
||
|
92173
|
92173
92173-0288 CLAMP |
92173-0288 |
from US $3.33 |
||
|
92192
|
92192
92192-0977 TUBE,3X6.7X300 |
92192-0977 |
from US $2.69 |
