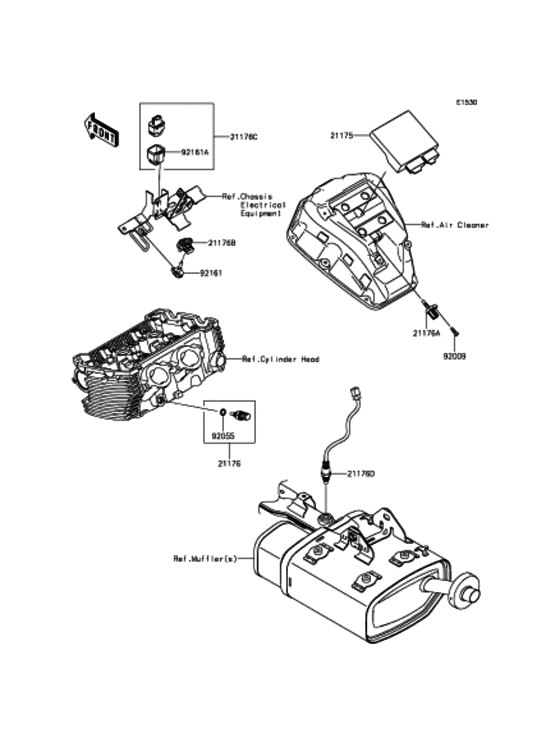

フユーエルインジェクション Diagram Kawasaki EN650 Vulcan S
- Year
- 2016
- Colour
- Metallic Matte Carbon Gray (51B)
- Sales region
- Japan
- Engine Capacity
- 650
- Frame
- EN650A-A04902-
- Engine
- ER650AEA00001-
- Model
- Vulcan S
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21175
|
21175
21175-0939 コントロ-ルユニツト(エレクトロニツク)エレクトロニツク |
21175-0939 |
US $733.26 |
||
|
21176
|
21176
21176-0009 Sensor, Water Temp |
21176-0009 |
from US $45.33 |
||
|
21176A
|
21176A
21176-0048 SENSOR,AIR TEMPERATUR |
21176-0048 |
from US $16.63 |
||
|
21176B
|
21176B
21176-0111 SENSOR,PRESSURE |
21176-0111 |
from US $188.11 |
||
|
21176C
|
21176C
21176-0704 SENSOR,VEHICLE-DOWN |
21176-0704 |
from US $48.76 |
||
|
21176D
|
21176D
21176-0775 SENSOR,OXYGEN |
21176-0775 |
from US $144.36 |
||
|
92009
|
92009
92009-1984 SCREW,TAPPING,5X16 |
92009-1984 |
from US $1.61 |
||
|
92055
|
92055
92055-0016 RING-O,9.5X1.9 |
92055-0016 |
from US $5.23 |
||
|
92161
|
92161
92161-0673 DAMPER |
92161-0673 |
from US $2.85 |
||
|
92161A
|
92161A
92161-0951 DAMPER |
92161-0951 |
from US $8.87 |
